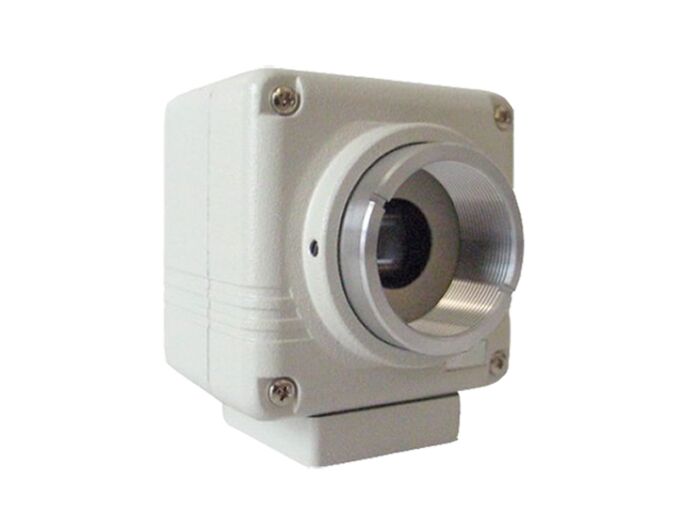

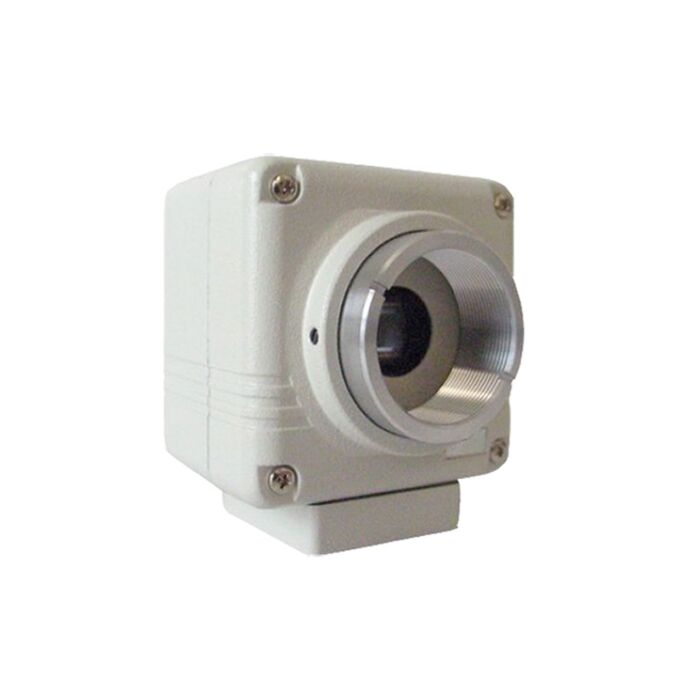

Omron STC-TC33USB-A Machine Vision Camera Progressive Scan Cased Cameras
The STC-TC33USB-A is a compact, progressive scan, VGA, USB cameras with a 1/3" color CCD, featuring 59.94fps (VGA), software triggering, image capture, digital zoom and a feature-rich user based menu set up and control. This series is available in a board or cased version, with a top or rear USB connector. Sentech USB cameras include a SDK, Direct X, Twain and Linux drivers, as well as the Sentech Viewing Software.
SKU
STC-TC33USB-A
The STC-TC33USB-A is a compact, progressive scan, VGA, USB cameras with a 1/3" color CCD, featuring 59.94fps (VGA), software triggering, image capture, digital zoom and a feature-rich user based menu set up and control. This series is available in a board or cased version, with a top or rear USB connector. Sentech USB cameras include a SDK, Direct X, Twain and Linux drivers, as well as the Sentech Viewing Software.
| Specifications | ||
| Signal Format | VGA Color | |
| Image Sensor | 1/3” CCD | |
| Minimum Frame Rate | ||
|
Full Scan
|
59.94 fps | |
|
1/2 Partial Scan
|
120.57 fps | |
|
1/4 Partial Scan
|
242.07 fps | |
| Total Picture Element | 692 (H) x 504 (V) | |
| Effective Picture Element | 659 (H) x 494 (V) | |
| Active Picture Element | ||
|
Full Scan
|
640 (H) x 480 (V) | |
|
1/2 Partial Scan
|
640 (H) x 224 (V) | |
|
1/4 Partial Scan
|
640 (H) x 80 (V) | |
| Chip Size | 5.79 (H) x 4.89 (V) mm | |
| Cell Size | 7.40 (H) x 7.40 (V) µm | |
| Pixel Clock Frequency | 24.5454MHz | |
| Scanning Method | Full, Partial scanning (1/2, 1/4) | |
| Sync System | Internal Sync | |
| Scanning System | Progressive | |
| Shutter Speed | Auto / Manual (Software Selectable) | |
| Minimum Illumination | 3.6 Lux at F1.2 | |
| Gain | Auto / Manual (Software Selectable) | |
| Gamma | Manual (Software Selectable) | |
| Lens Mount | CS Mount / Fixed Lens | |
| White Balance | Auto / Manual / One-shot | |
| Video Output | USB 2.0 High Speed | |
| Shock and Vibration | Vibration: 10G (20 to 200Hz) Shock: 70G (3 Directions, 3 Times Each) |
|
| Power | ||
|
Input Voltage
|
5 V through USB port | |
|
Consumption
|
< 500mA | |
| Temperature | ||
|
Operating
|
0°C ~ 40°C (32F° ~ 104°F) | |
|
Storage
|
-30°C ~ 65°C (-29°C ~ 149°C) | |
| Dimensions | 51 (W) x 51 (H) x 44.3 (D) mm (2” x 2” x 1.74”) | |
| Weight | Approximately 145g (55.114oz) | |
