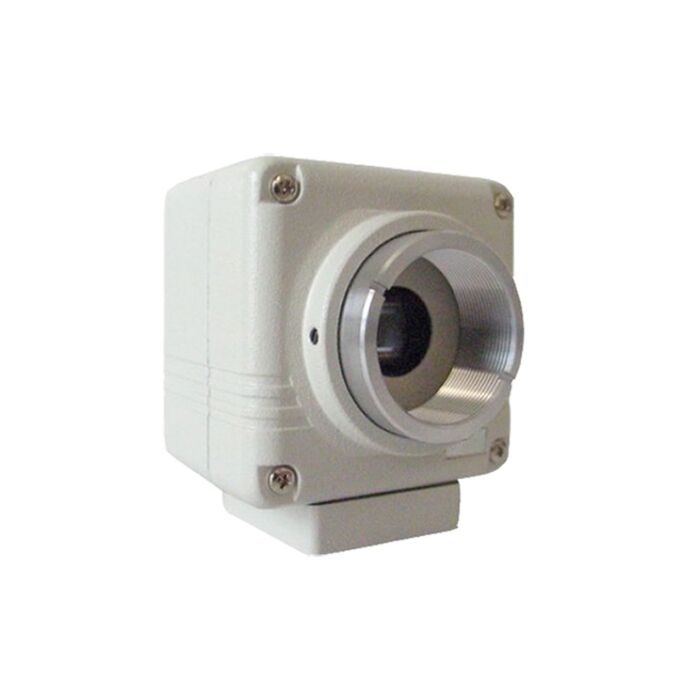

Omron STC-TB83USB-A Machine Vision Camera Progressive Scan Cased Cameras

The STC-TB83USB is a compact, progressive scan, XGA, USB cameras with a 1/3" monochrome CCD, featuring 29.18fps (XGA), software triggering, image capture, digital zoom and a feature-rich user based menu set up and control.
SKU
STC-TB83USB-A

The STC-TB83USB is a compact, progressive scan, XGA, USB cameras with a 1/3" monochrome CCD, featuring 29.18fps (XGA), software triggering, image capture, digital zoom and a feature-rich user based menu set up and control. This series is available in a board or cased version, with a top or rear USB connector. Sentech USB cameras include a SDK, Direct X, Twain and Linux drivers, as well as the Sentech Viewing Software.

 Specifications
Signal Format VGA Monochrome
Image Sensor: 1/3” CCD
Minimum Frame Rate:
Full Scan
29.18 fps
1/2 Partial Scan
60.02 fps
1/4 Partial Scan
120.35 fps
Total Picture Element: 1077 (H) x 788 (V)
Effective Picture Element: 1034 (H) x 779 (V)
Active Picture Element:
Full Scan
1024 (H) x 768 (V)
1/2 Partial Scan
1024 (H) x 344 (V)
1/4 Partial Scan
1024 (H) x 136 (V)
Chip Size: 5.80 (H) x 4.92 (V) mm
Cell Size: 4.65 (H) x 4.65 (V) µm
Pixel Clock Frequency: 29.5MHz
Scanning Method: Full, Partial scanning (1/2, 1/4)
Sync System: Internal Sync
Scanning System: Progressive
Shutter Speed: Auto / Manual (Software Selectable)
Minimum Illumination: 9.5 Lux at F1.2
Gain: Auto / Manual (Software Selectable)
Gamma: Manual (Software Selectable)
Lens Mount: CS Mount / Fixed Lens
White Balance: Auto / Manual / One-shot
Video Output: USB 2.0 High Speed
Shock and Vibration: Vibration: 10G (20 to 200Hz)
Shock: 70G (3 Directions, 3 Times Each)
Power:
Input Voltage
+5 V through USB port
Consumption
< 500mA
Temperature:
Operating
0°C ~ 40°C (32F° ~ 104°F)
Storage
30°C ~ 65°C (-29°C ~ 149°C)
Dimensions:

45 (W) x 45 (H) x Variable (D) mm
1.771” x 1.771” x Variable)

Weight:  Approximately 145g (55.114oz)
