  • Sentech STC-SPB510PCL | 5MP Cameras | Camera Link Cameras | Monochrome Cameras (PoCL) Image #1

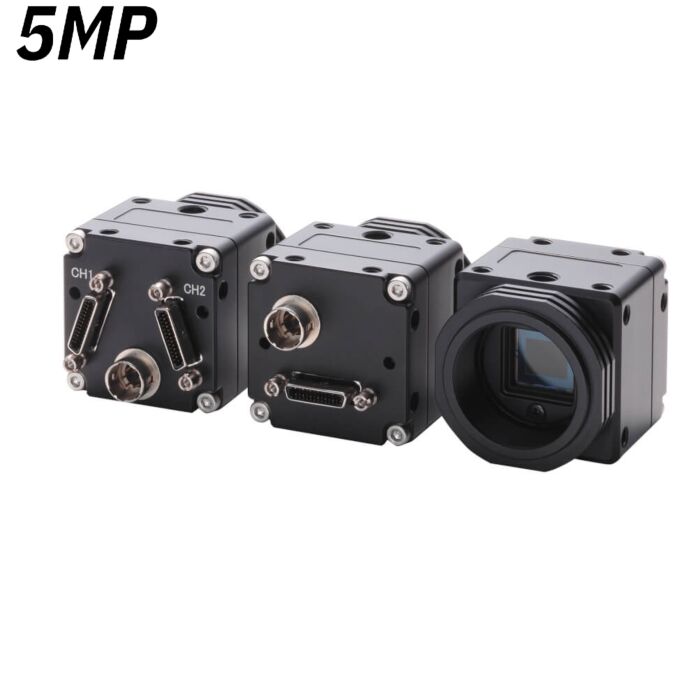

Sentech STC-SPB510PCL 5MP CL Monochrome Camera (PoCL)

Quick Overview

The STC-SPB510PCL is a High-Speed CMOS 5M model has added to Camera Link series. Sony Pregius Sensor provides high-quality images.
Overview

Sentech's STC-SPB510PCL is capable of capturing moving objects without any issue due to the camera has Global shutter sensor. Supported PoCL type, external power supply. .is unnecessary.



Features:



  • 2448(H) x 2048(V)
  • 3.45μm x 3.45μm
  • 163.4 fps
  • 2/3“ Sensor
  • Lens Mount : C Mount
  • Global Shutter
  • Supported PoCL
  • 35 x 35 x 40.7 mm (excluding connectors)
  •


    Applications:



  • Machine Vision
  • ITS
  • Security
  • Industrial Imaging
  • Industrial Inspection
  • Specifications



    Model Number STC-SPB510PCL
    Image Sensor 2/3” 5.07M Progressive CMOS (SONY IMX250)
    Shutter Type Global
    Effective Pixels  2448 (H) x 2048 (V)
    Cell Size 3.45 (H) x 3.45 (V) µm
    Sync System Free run, External trigger Maximum
    Frame Rate 163.4 fps (8bit, 10Tap, 85MHz) 66 fps (10bit, 4Tap, 85MHz) 66 fps (12bit, 4Tap, 85MHz)
    Video Format 8 bit / 10bit / 12bit output
    Noise Level Less than TBD LSBs (Gain 0 db, 8bit) Less than TBD LSBs (Gain 0 db, 10bit) Less than TBD LSBs (Gain 0 db, 12bit)
     Sensitivity TBD Lux (Color), TBD Lux (Monochrome)
    Exposure time  20.1μseconds to 16.777seconds (8bit) 26.5μseconds to 16.777seconds (10bit) 26.5μseconds to 16.777seconds (12bit)
    TBD g Compliance  RoHS Compliant
