  • Sentech STC-SCS312POE | GigE Cameras | Sentech GigE Image 1

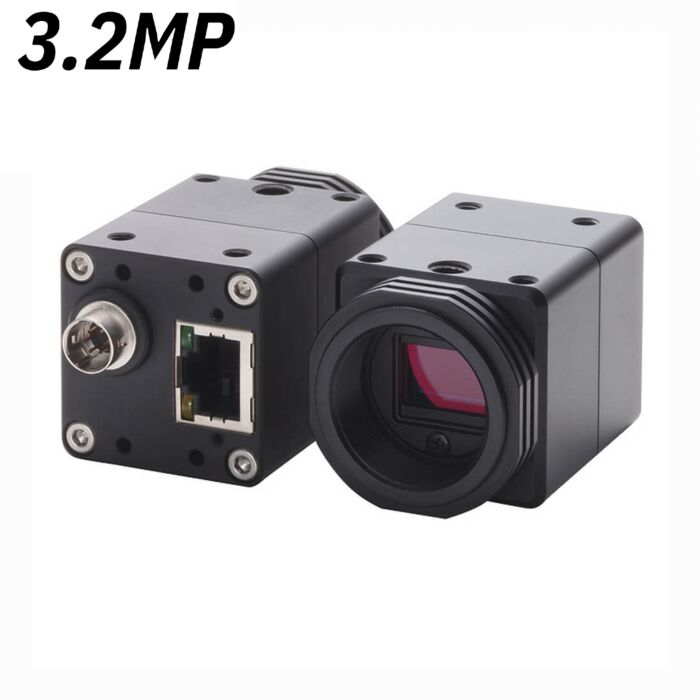

Sentech STC-SCS312POE 3.2MP GigE, Color Camera (CMOS)

Quick Overview

Sentech is releasing a brand new GigE Vision, 3.2 MP color GigE Vision camera. The STC-SCS312POE features IMX265 3.2MP global shutter sensor with 35fps. Utilizing CMOS Global Shutter, the STC-SCS312POE is capable of capturing moving objects without any motion blur.
Overview

These Sentech cameras are perfect for applications requiring high quality with it's IMX265 3.2MP global shutter sensor with 35fps.

Features:

  • 1/1.8” Color Progressive CMOS
  • Sony CMOS Sensor
  • 3.2 MP Resolution
  • Global Shutter
  • Specifications
    Image Sensor 1/1.8” 3.2M color progressive CMOS (Sony: IMX265)
    Shutter Type Global
    Active Picture Element 2048 (H) x 1536 (V)
    Cell Size 3.45 (H) x 3.45 (V) µm
    Scanning System Progressive
    Scanning Mode Full Scanning (Full resolution) / ROI
    Frame Rate 8bit:33.3 fps、10bit:16.6fps、10bitPacked:22.2fps、 12bit:16.6fps、12bitPacked:22.2fps; Maximum frame rate is 2083fps@264 x 4(8bit)
    ADC bit depth 12 bit
    Video Output Format BayerBG8, BayerBG10, BayerBG10Packed, BayerBG12, BayerBG12Packed
    Nosie Level -
    -@8Bit Output ≤ 3 Digit (Gain 0 dB)
    -@10Bit Output ≤ 12 Digit (Gain 0 dB)
    -@12Bit Output <= 48 Digit (Gain 0 dB)
    Sensitivity 780 Lux
    ALC Auto shutter / Auto gain (AGC) / OFF (Default: Auto shutter OFF, AGC OFF)
    Electronic Shutter 30 useconds to 16,777,215 useconds (8bit) 35 useconds to 16,777,215 useconds (10bit,12bit)
    Gain -
    -Analog (Gain) 0 to 20.8 dB (Default: 0dB)
    -Digital (Gain) 0 to 6 dB (Default: 0dB)
    ROI (AOI) Horizontal: 264 to 2048 pixels / Vertical: 4 to 1536 pixels (Default: 2048 x 1536); Adjustable steps for the image size: 8 pixels in horizontal direction and 2 lines in vertical direction; Adjustable steps for the offset: 8 pixels in horizontal direction and 2 lines in vertical direction
    Gamma Gamma 1.0 or uploadable gamma table (Default:1.0)
    Binning Not Supported
    Decimation Individual x2 Horizontal, Vertical Decimation
    Mirror Image Horizontal / Vertical / Horizontal and Vertical (Default: OFF)
    Pixel Blemish Correction Up to 64 points
    White Balance Auto / Manual / Push to Set (Default: Manual)
    Operational Mode Edge preset trigger / Pulse width trigger(more than 13.3333uS(8bit), 17.77778uS(10bit,12bit))
    Communication UART Communication through Ethernet port
    Interface IEEE802.3af CLASS2 (1000BASE-T)
    Protocol GigE Vision® 1.2 and GenICam™ Standard Version 2.1 (SFNC 1.4)
    I/O One opt-isolated input and two open collector outputs
    Power -
    - Input Voltage + 10.8 ~ 26.4 Vdc
    - Consumption (Max / Default) +12V: 2.9 W, 24V:3.3 PoE: 3.5 W
    Dimensions 35 (W) x 35 (H) x 53.4 (D) mm *
    Optical Filter No Filter
    Optical Center Accuracy Positional accuracy in Horizontal and Vertical directions:: ±0.3 mm Rotational accuracy of Horizontal and Vertical: ±2.0 deg.
    Material Aluminum Alloy (AC)
    Lens Mount C-Mount
    Connections RJ45 connector Power- I/O connector: HR10A-7R-6PB (Hirose) or equivalent
    Camera Mount Screws Two 1/4'' Tripod screw holes (one each on top and bottom plate) Twelve M4 screws holes (four each on top and bottom plate, two each on both side plate)
    Weight Approx. 100g
    Operating Temperature -
    - Minimum Environmental Temperature: 0 deg. C°
    - Maximum Camera housing temperature (top plate) shall not exceed 60⁰C (This corresponds to an environmental temperature of approximately 43⁰C)
    Storage Temperature Environmental Temperature: -20°C to 65°C
    Storage Humidity Less than 85%
    Vibration 20Hz to 200Hz to 20Hz (5min./cycle), acceleration 10G, XYZ 3 directions 30 min. each
    Shock Acceleration 38G, half amplitude 6 ms, 3 directions 3 times each
    Standard Compliancy EMS: EN61000-6-2, EMI: EN55011
    RoHS RoHS Compliant
