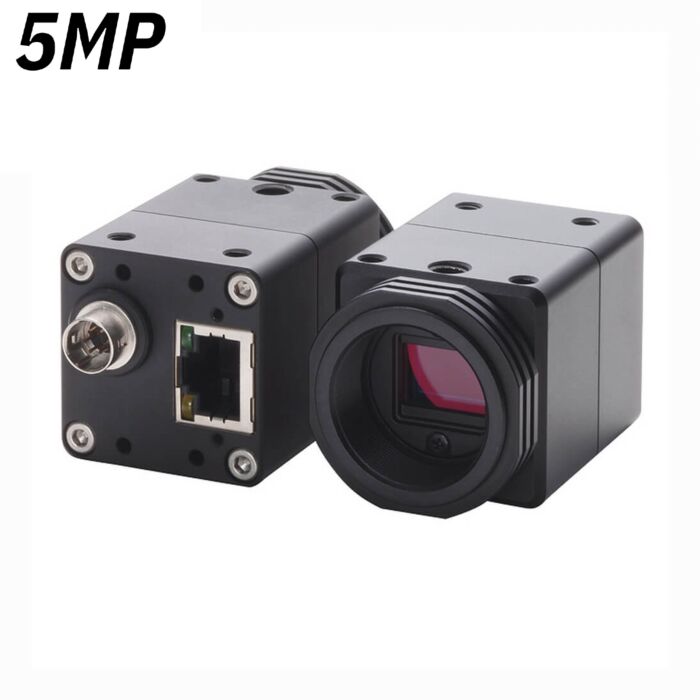

Sentech STC-SCA503POE 5MP GigE, Color Camera (CMOS)

Quick Overview

The STC-SCA503POE is part of Sentech's Brand New Power over Ethernet GigE cameras, featuring an Aptina CMOS Sensor.
Overview

The STC-SCA503POE features a 1/2.5" color QSXGA sensor, 14 fps and communication Ethernet connector. The STC-SCA503POE boasts a compact 35(w) x 35(H) x 53.5 (D) mm size. This camera meets all industry standards for GigE Vision® and GenICam™, and is compatible with all standard industry drivers. The GigE PoE series is available now at an extremely low cost.



Features:



  • 1/2.5" CMOS Sensor
  • 5MP-VGA Scalable Resolution
  • GigE Vision 1.2 GenLCam 1.4 Compliant
  •


    Applications:



  • Machine Vision
  • Industrial Inspection
  • ITS
  • Security
  • Medical Imaging
  • Specifications

      Imaging



    Model No

    STC-SCA503POE

    Image Sensor

    1/2.5" 5 MP CMOS; (Aptina: MT9P031/12STC)

    Active Picture Element

    2592 (H) x 1944 (V)

    Scanning System

    Full scanning, Variable ROI

    Cell Size

    2.2 (H) x 2.2 (V) µm

      Function



    Shutter Type

    Rolling Shutter / Global Reset

    Scan Mode

    Full Scan / AOI

    Vertical Frequency (Frame Rate)

    QSXGA: 2592 (H) x 1944 (V): 14 FPS

    Video Output

    BGR8bit, RAW8bit/10bit/12bit, BayerRG10Packed/12Packed

    - Noise Level: @ 10 bit output

    <= 13 Digit (Gain 0 dB)

    Minimum Scene Illumination

    16 Lux @ F1.2,14 Hz

    ALC

    AE and AGC (ON/OFF)

    Exposure Time

    Preset continuous mode: 32 useconds to 16,777,215 mseconds, Preset trigger mode: 32 useconds to 16,777,215 mseconds, TriggerWidth (Pulse width) mode: 32 useconds to Non-limit mseconds

    Gain

    -

    - Analog (Gain)

    0 ~ 7.51 dB

    - Digital (Gain)

    Up to 18.69

    Gamma

    Gamma 1.0 (Factory default) or downloadable gamma table (Default:1)

    AOI Function

    AOI (H: 32 to 2592 Pixel / V: 32 to 1944 Line) Unit: H 8 Pixel / V 2 Line

    Binning

    H: 1/2, V: 1/2, 1/4

    Decimation(Skipping)

    Horizontal 1/2, 1/3, 1/4, 1/5, 1/6, 1/7, Vertical 1/2, 1/3, 1/4, 1/5, 1/6, 1/7

    Flip Image

    N/A

    Pixel Blemish Correction

    Maximum 64 points (Default:ON)

    White Balance

    Auto, Manual, Push to Set, White Balance are available, on both raw data and RGB outputs (Default:OFF)

    Operating Mode

    Free Run, Edge preset trigger, Trigger Width (Pulse width) (Default:OFF)

    Protocol

    IEEE802.3 (1000BASE-T)

    Communication

    GigE Vision® 1.2 and GenICam™ 1.4 Compliant

    I/Os

    One opt-isolated input and two open collector outputs(+3.3V)

    Power

    -

    - Input Voltage

    +10.8 to +26.4 Vdc (IO Connector) or Power Over Ethernet(IEEE802.3af compliance)

    - Consumption

    Power over Ethernet: Less than 3.0 W, +12Vdc: Less than 3.2 W

      Mechanical



    Dimensions

    35 (W) x 35 (H) x 53.5 (D) mm excluding connectors

    Optical Filter

    With IR Cut Filter

    Optical Center Accuracy

    Positional accuracy in H and V directions:: ±0.3 mm, Rotational accuracy of H and V: ±1.0 deg

    Material

    Aluminum (AC)

    Lens Mount

    C Mount

    Connectors

    RJ45 connector, Power- I/O connector: HR10A-10R-6PB (Hirose) or equivalent

    Camera Mount Screws

    Two 1/4'' Tripod screw holes (one each on top and bottom plate) Twelve M4 screws holes (four each on top and bottom plate, two each on both side plate)

    Weight

    Approx. 97g

      Environmental



    Operating Temperature

    -

    - Minimum

    Environmental Temperature: -5°C

    - Maximum

    Camera housing temperature (top plate) shall not exceed 65°C (This corresponds to an environmental temperature of approx. 40°C)

    Storage Temperature

    Environmental Temperature -30 ~ 65°C

    Vibration

    20 Hz ~ 200 Hz ~ 20 Hz (5 min. /cycle), Acceleration 10G, XYZ 3 directions 30 minutes each

    Shock

    Acceleration: 38G, half amplitude 6 ms, 3 times, XYZ each direction

    Standard Compliancy

    EMS: EN61000-6-2, EMI: EN55011

    RoHS

    RoHS Compliant
