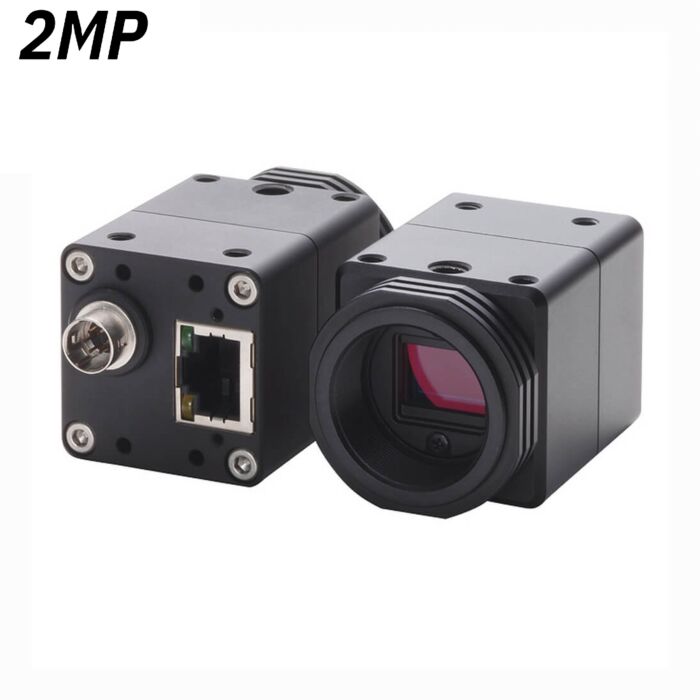

Omron STC-SC202POEHS 2MP GigE Color Camera (CCD Sensor: ICX274AQ)

1624 pixels x 1236 pixels, 1/1.8" PS IT CCD, 30 fps, Power over Ethernet High Speed Gigabit Ethernet Camera. Available in Color (CCD Sensor: ICX274AQ)
SKU
STC-SC202POEHS

The STC-SC202POEHS is part of Sentech's Brand New Power over Ethernet High Speed GigE camera series. It features a 1/1.8" color UXGA sensor, 30fps and communication over a 6 pin Hirose or Ethernet connector. The STC-SC202POEHS boasts a compact 35(w) x 35(H) x 55.9 (D) mm size, a user-programmable Area of Interest (AOI) and a Gamma Table that can be imported. This camera meets all industry standards for GigE Vision® and GenICam™, and is compatible with all standard industry drivers. The GigE PoEHS series is available now at an extremely low cost.

Features:

  • User Programmable AOI
  • High Speed Power Over Ethernet
  • 2.0 Megapixel Resolution with 30 fps
  •

    STC-SC202POEHS Specifications
    Imager 1/1.8” interline UXGA color progressive CCD: ICX274AQ
    Total Picture Element 1688 (H) x 1246 (V)
    Active Picture Element UXGA: 1624 (H) x 1236 (V)
    Chip Size 8.5 (H) x 6.8 (V) mm
    Cell Size 4.4 (H) x 4.4 (V) um
    Scanning System Progressive
    Vertical Frequency 30.29207 Hz at full resolution; 0.57871 to 121.16830Hz changeable via the communication; Maximum frame rate is dependent on the AOI setting; Maximum frame rate of the camera (121.16830 Hz) is 104 vertical resolution AOI setting.
    Horizontal Frequency 37.9257 Hz
    Pixel Frequency 72.81683 MHz
    Noise Level
    @ 8bit output
    <= 3 Digit (Gain 0 dB)
    @ 10bit output
    <= 12 Digit (Gain 0 dB)
    @ 12bit output
    <= 48 Digit (gain 0 dB)
    Minimum Scene Illumination 7.27 Lux at F1.2, 15.31668 Hz
    Sync System Internal
    Video Output Digital 8 ,10 or 12 bit Raw Data or RGB 8 bit
    Interface PoE: IEEE802.3af CLASS3 (1000BASE-T)
    Protocol GigE Vision 1.2 and GeniCam 2.0 compliant
    Exposure Time Preset continuous mode: 10 seconds to 16,777,216 seconds; Preset trigger mode: 10 seconds to 16,777,216 seconds; Pulse width mode: 10 seconds to Unlimited.
    ALC Electronic iris and AGC (ON/OFF)
    Gain 0 to 20.4 dB
    Gamma Gamma 1.0 (Factory default) or downloadable gamma table
    AOI Function Programmable AOI setting via the communication
    Smear Reduction Selectable ON/OFF via the communication
    Color Interpolation Available on RGB output
    White Balance Function Auto, Manual, and push to set white balance is available on both Raw Data output and RGB output.
    Operation Mode Edge preset trigger, pulse width trigger (unlimited exposure time)
    Communication UART communication through Ethernet Port
    I/Os One opt isolated input and two open collector outputs
    Power
    Input Voltage
    +10.8 to +26.4Vdc through power/IO connector or Power Over Ethernet; (Auto detection with power/IO connector prioritized)
    Consumption
    12V: 4.1W / 3.9W, PoE: 4.4W / 4.2W
    Dimensions 35 (W) x 35 (H) x 57.3 (D) mm excluding connectors
    Optical Filter IR cut filter on
    Optical Center Accuracy Positional accuracy in H and V directions: +/- 0.3 mm; Rotational accuracy of H and V: +/- 1.5 deg.
    Material Aluminum (AC)
    Lens Mount C Mount
    Connectors RJ45 connector; Power/IO connector: HR10A-10R-6PB (Hirose) or equivalent
    Camera Mount Screws Two ¼” Tripod screw holes (one each on top and bottom plate); Twelve M4 screw holes (four each on top, bottom, and two each on both side plates)
    Weight Approx. 130
    Operating Temperature
    Minimum
    Environmental Temperature: -5 deg. C
    Maximum
    Environmental Temperature: 35 deg. C or camera housing temperature (Top Plate) : 65 deg. C
    Storage Temperature Environmental Temperature: -30 to 65 deg. C
    Vibration 20Hz to 200Hz to 20Hz (5min/cycle), acceleration 10G, 3 directions 30 min. each
    Shock Acceleration 38G, half amplitude 6ms, 3 directions, 3 times each
    Standard Compliancy EMS: EN61000-6-2, EMI: EN55011
    RoHS RoHS compliant
