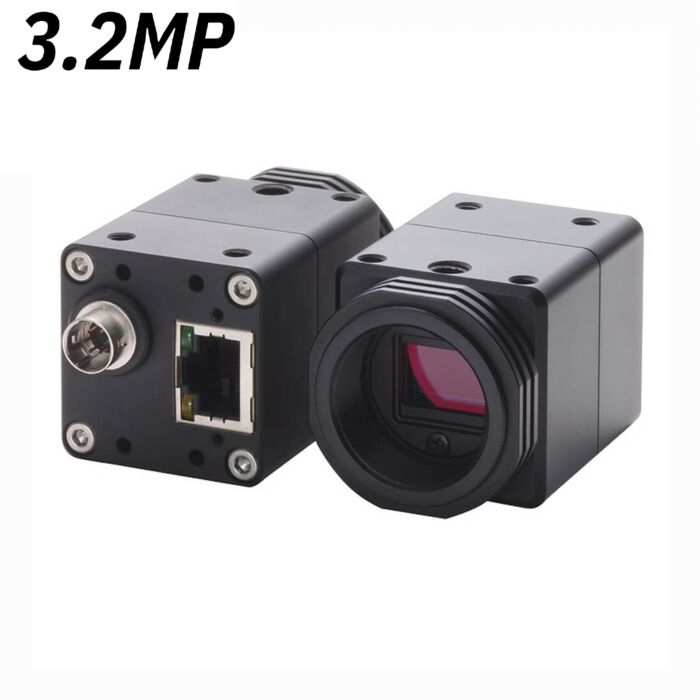

Omron STC-SBS312POE (STCSBS312POE) 3.2 MP GigE, Monochrome Camera (CMOS)

Model No

STC-SBS312POE

Imager

1/1.8” 3.2M monochrome progressive CMOS (Sony: IMX265)

Shutter Type

Global Shutter

Active Picture Element

2048 (H) x 1536 (V)

Cell Size

3.45 (H) x 3.45 (V) µm

Scanning System

Full scanning, Variable ROI

Scanning Mode

Full Scanning (Full resolution) / ROI

Frame Rate

8bit:33.3 fps、10bit:16.6fps、10bitPacked:22.2fps、 12bit:16.6fps、12bitPacked:22.2fps; Maximum frame rate is 2083fps@264 x 4(8bit)

ADC bit depth

12 bit

Video Output Format

Mono 8, Mono 10, Mono 10 Packed, Mono 12, Mono 12 Packed

Noise Level

-

- @ 8 Bit Output

≤ 3 Digit (Gain 0 dB)

- @ 10 Bit Output

≤ 12 Digit (Gain 0 dB)

- @ 12 Bit Output

<= 48 Digit (Gain 0 dB)

Sensitivity

300 Lux

ALC

Auto shutter / Auto gain (AGC) / OFF (Default: Auto shutter OFF, AGC OFF)

Electronic Shutter

28 useconds to 16,777,215 useconds (8bit) \ 32 useconds to 16,777,215 useconds (10bit,12bit)

Gain

-

- Analog

0 to 20.8 dB (Default: 0dB)

- Digital

0 to 6 dB (Default: 0dB

ROI

Horizontal: 264 to 2048 pixels / Vertical: 4 to 1536 pixels (Default: 2048 x 1536); Adjustable steps for the image size: 8 pixels in horizontal direction and 2 lines in vertical direction; Adjustable steps for the offset: 8 pixels in horizontal direction and 2 lines in vertical direction

Gamma

Gamma 1.0 or uploadable gamma table (Default:1.0)

Binning Function

Not supported

Decimation Function

Individual x2 Horizontal, Vertical Decimation

Mirror Image

Horizontal / Vertical / Horizontal and Vertical (Default: OFF)

Pixel Blemish Correction

Up to 64 points

White Balance

Auto / Manual / Push to Set (Default: Manual)

Operational Mode

Edge preset trigger / Pulse width trigger(more than 13.3333uS(8bit), 17.77778uS(10bit,12bit))

Communication

UART Communication through Ethernet port

Interface

IEEE802.3af CLASS2 (1000BASE-T)

Protocol

GigE Vision® 1.2 and GenICam™ Standard Version 2.1 (SFNC 1.4)

I/O

One opt-isolated input and two open collector outputs

Power

-

- Input Voltage

+ 10.8 ~ 26.4 Vdc

- Consumption (Max / Default)

+12V: 2.9 W, 24V:3.3 PoE: 3.5 W

Dimensions

35 (W) x 35 (H) x 53.4 (D) mm *

Optical Filter

No Filter

Optical Center Accuracy

Positional accuracy in Horizontal and Vertical directions:: ±0.3 mm Rotational accuracy of Horizontal and Vertical: ±2.0 deg.

Material

Aluminum Alloy(AC)

Lens Mount

C Mount

Connections

RJ45 connector Power- I/O connector: HR10A-7R-6PB (Hirose) or equivalent

Camera Mount Screws

Two 1/4'' Tripod screw holes (one on each top and bottom plate) ; Sixteen M4 screw holes (Four on each top, bottom and both side plate)

Weight

Approx. 100g

Operational Temperature

-

- Minimum

Environmental Temperature: 0 deg. ºC

- Maximum

Camera housing temperature (top plate) shall not exceed 60⁰C (This corresponds to an environmental temperature of approximately 43⁰C)

Storage Temperature

Environmental Temperature: -20°C to 65°C

Storage Humidity

Less than 85%

Vibration

20Hz to 200Hz to 20Hz (5min./cycle), acceleration 10G, XYZ 3 directions 30 min. each

Shock

Acceleration 38G, half amplitude 6 ms, 3 directions 3 times each

Standard Compliancy

EMS: EN61000-6-2, EMI: EN55011

RoHS

RoHS Compliant
