Omron STC-SB83USB-B 0.8MP USB 2.0, Monochrome Camera

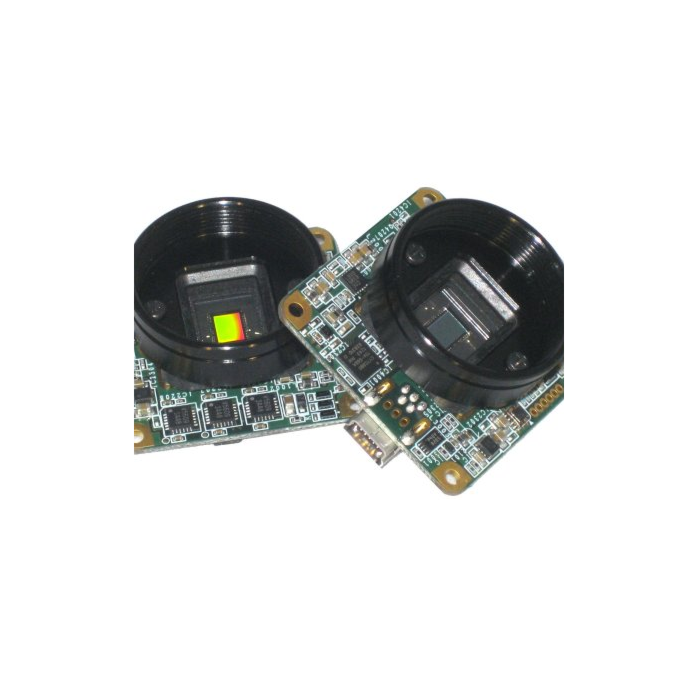

The STC-SB83USB-B is an ultra-compact, progressive scan, XGA, USB camera with a 1/3” monochrome CCD.
SKU
Sentech STC-SB83USB-B

It features 29fps, hardware and software triggering image capture, digital zoom and a feature-rich user based menu setup and control.

Name

Specifications

Image Sensor
1/3" interline XGA monochrome progressive CCD: ICX204AL (Sony)
Total Picture Element
1077 (H) x 788 (V)
Effective Picture Element
1034 (H) x 779 (V)
Chip Size
5.80 (H) x 4.92 (V) mm
Cell Size
4.65 (H) x 4.65 (V) μm
Scanning System
Progressive
Resolution
1024 (H) x 768 (V) (Full scanning) 1024 (H) x 344 (V) (1/2 partial scanning) 1024 (H) x 136 (V) (1/4 partial scanning)
Scanning Method
Full scanning, 1/1 partial scanning, 1/2 partial scanning, 1/4 partial scanning, Variable partial scanning, Binning scanning, Binning 1/1 partial scanning, Binning 1/2 partial scanning, Binning 1/4 partial scanning, Binning variable partial scanning
Maximum Frame Rate
-
- Full Scanning
29.18 fps (Normal) / 14.59 fps (1/2 clock) / 7.295 fps (1/4 clock)
- 1/2 Partial Scanning
60.02 fps (Normal) / 30.01 fps (1/2 clock) / 15.00 fps (1/4 clock)
- 1/4 Partial Scanning
120.35 fps (Normal) / 60.175 fps (1/2 clock) / 30.087 fps (1/4 clock)
Pixel Frequency
29.5 MHz (Normal) / 14.75 MHz (1/2 clock) / 7.375 MHz (1/4 clock)
Video Output
8bit / 10bit / 12bit
Minimum Scene Illumination
TBD
Sync System
Internal
Electronic Shutter
Auto / Manual (software selectable)
- Normal
1/36,818,182 to 1/22.40 seconds(default 1/29.18 seconds)
- 1/2 Clock
1/18,409,091 to 1/11.20 seconds
- 1/4 Clock
1/9,204,545 to 1/5.60 seconds
Gain
Auto / Manual (software selectable,default: x3.55)
Gamma
Manual (software selectable,default: 1)
White Balance
-
Trigger Mode
Free-run / Edge preset trigger / Pulse width trigger / Start & stop trigger (software selectable) (Hardware trigger and Software tigger are available)
Camera Reset
Support on Pin 5
LED Indicator
Green(Flicker):Power-On, Green:Camera works
Pixel Blemish Correction
64 Points
Input / Output
USB2.0 High speed
Power
-
- Input Voltage
+5 V through USB connector (+4.4 to +5.25V)
- Consumption
Less than 1.4W
Dimensions
Board Type::36(W) x 36(H) x 15.3(D) CS-Mount(without USB connector)
Lens Mount
CS mount / MicroLens Mount / None Mount
Weight
Approximately 15g
Interface Connector
-
- Angle
USB: mini-B USB connector IO Connector :SM05B-SRSS-TB (JST) 5pin
Operating Temperature
0 to 40 deg. C
Storage Temperature
-30 to 65 deg. C
Vibration
20Hz to 200Hz to 20Hz (5min./cycle), acccelaration 10G, 3 directions 30 min. each
Shock
Accelaration 70G, half amplitude 6ms, 3 directions 3 times each
Standard Compliancy
TBD
RoHS
RoHS compliance
