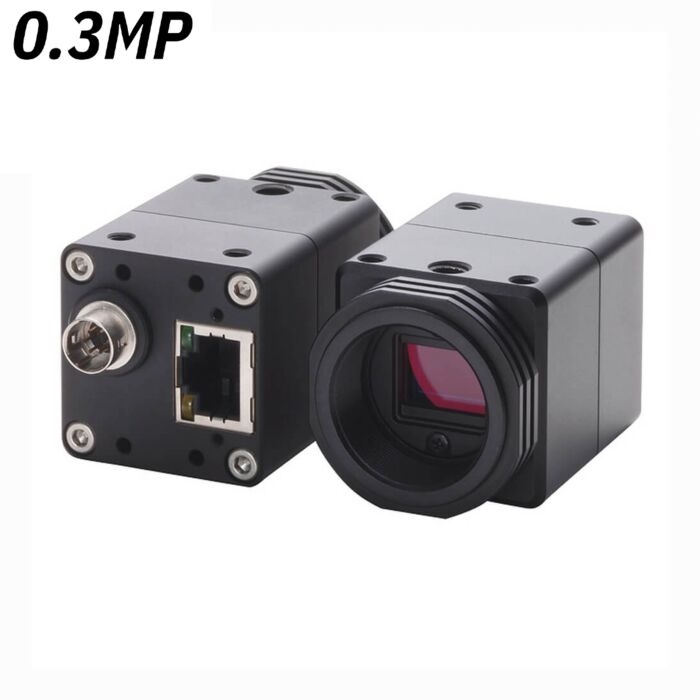

Sentech STC-SB32POEHS 0.3MP Monochrome GigE Camera

Quick Overview

648 pixels x 494 pixels, 1/2" PS IT CCD, 122 fps, Power over Ethernet High Speed Gigabit Ethernet Camera. Available in Monochrome (Black & White)

The STC-SC32POEHS is part of Sentech's Brand New Power over Ethernet High Speed GigE camera series. It features a 1/2" color VGA sensor, 122fps and communication over a 6 pin Hirose or Ethernet connector. The STC-SC32POEHS boasts a compact 35(w) x 35(H) x 55.9 (D) mm size, a user-programmable Area of Interest (AOI) and a Gamma Table that can be imported. This camera meets all industry standards for GigE Vision® and GenICam™, and is compatible with all standard industry drivers. The GigE PoEHS series is available now at an extremely low cost.


  • User Programmable AOI
  • High Speed Power Over Ethernet
  • 0.3 Megapixel Resolution with 122 fps
STC-SB32POEHS Specifications
Imager 1/2” interline VGA color progressive CCD: ICX414AQ
Total Picture Element 659(H)x494(V)
Active Picture Element VGA: 648 (H) x 494 (V)
Cell Size 9.9 (H) x 9.9 (V) µm
Scanning System Progressive
Vertical Frequency 122.11786 Hz at full resolution 0.97814 to 419.03186 Hz adjustable via the communication (Frame rate depends on the AOI setting) Maximum frame rate (419.03186 Hz) is when vertical resolution AOI setting is 104.
Horizontal Frequency 64.19536KHz
Pixel Frequency 50.07272 MHz
Noise Level
@ 8bit output
<= 3 Digit (Gain 0 dB)
@ 10bit output
<= 12 Digit (Gain 0 dB)
@ 12bit output
<= 48 Digit (gain 0 dB)
Minimum Scene Illumination 43.64 Lux at F1.2, 122.27770Hz
Sync System Internal
Video Output Digital 8 ,10 ,12 bit Raw Data
Interface PoE: IEEE802.3af CLASS3 (1000BASE-T)
Protocol GigE Vision 1.2 and GeniCam 2.0 compliant
Exposure Time Preset continuous mode: 10 seconds to 16,777,216 seconds; Preset trigger mode: 10 seconds to 16,777,216 seconds; Pulse width mode: 10 seconds to Unlimited.
ALC Electronic iris and AGC (ON/OFF)
Gain 0 to 18.309 dB
Gamma Gamma 1.0 (Factory default) or downloadable gamma table
AOI Function Programmable AOI setting via the communication
Smear Reduction Selectable ON/OFF via the communication
Color Interpolation Available on RGB output
White Balance Function Auto, Manual, and push to set white balance is available on both Raw Data output and RGB output.
Trigger Mode Edge preset trigger, pulse width trigger (unlimited exposure time)
Communication UART communication through Ethernet Port
I/Os One opt isolated input and two open collector outputs
Input Voltage
+10.8 to +26.4Vdc through power/IO connector or Power Over Ethernet; (Auto detection with power/IO connector prioritized)
12V: 3.2W / 2.9W, PoE: 3.4W / 3.1W
Dimensions 35 (W) x 35 (H) x 57.3 (D) mm excluding connectors
Optical Filter IR cut filter on
Optical Center Accuracy Positional accuracy in H and V directions: +/- 0.3 mm; Rotational accuracy of H and V: +/- 1.5 deg.
Material Aluminum (AC)
Lens Mount C Mount
Connectors RJ45 connector; Power/IO connector: HR10A-10R-6PB (Hirose) or equivalent
Camera Mount Screws Two ¼” Tripod screw holes (one each on top and bottom plate); Twelve M4 screw holes (four each on top, bottom, and two each on both side plates)
Weight Approx. 130
Operating Temperature
Environmental Temperature: -5 deg. C
Environmental Temperature: 35 deg. C or camera housing temperature (Top Plate) : 65 deg. C
Storage Temperature Environmental Temperature: -30 to 65 deg. C
Vibration 20Hz to 200Hz to 20Hz (5min/cycle), acceleration 10G, 3 directions 30 min. each
Shock Acceleration 38G, half amplitude 6ms, 3 directions, 3 times each
Standard Compliancy EMS: EN61000-6-2, EMI: EN55011
RoHS RoHS compliant
