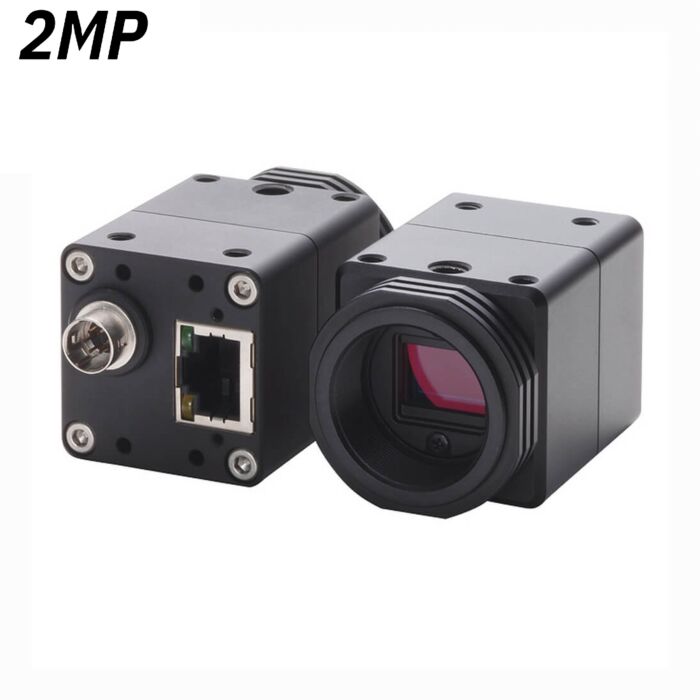

Omron STC-SB202POE 2.0MP Monochrome GigE Camera

The STC-SB202POE is a1624 pixels x 1236 pixels, 1/1.8" PS IT CCD, 15 fps, Power over Ethernet Gigabit Ethernet Camera. (CCD Sensor: ICX274AL)
SKU
STC-SB202POE

The STC-SC202POE is part of Omron/Sentech's Brand New Power over Ethernet GigE camera series. It features a 1/1.8" color UXGA sensor, 15fps and communication over a 6 pin Hirose or Ethernet connector. The STC-SC202POE boasts a compact 35(w) x 35(H) x 55.9 (D) mm size, a user-programmable Area of Interest (AOI) and a Gamma Table that can be imported. This camera meets all industry standards for GigE Vision® and GenICam™, and is compatible with all standard industry drivers. The GigE PoE series is available now at an extremely low cost.

Features:

  • User Programmable AOI
  • Power Over Ethernet
  • 2.0 Megapixel Resolution with 15 fps
STC-SC202POE Specifications
Imager 1/1.8” interline UXGA monochrome progressive CCD: ICX274AL
Total Picture Element 1688 (H) x 1246 (V)
Active Picture Element UXGA: 1624 (H) x 1236 (V)
Chip Size 8.5 (H) x 6.8 (V) mm
Cell Size 4.4 (H) x 4.4 (V) um
Scanning System Progressive
Vertical Frequency 15.31668 Hz at full resolution; 0.29261 to 61.26674 Hz changeable via the communication; Maximum frame rate is dependent on the AOI setting; Maximum frame rate of the camera (61.26674 Hz) is 104 vertical resolution AOI setting.
Horizontal Frequency 19.1761 Hz
Pixel Frequency 38.818175 MHz
Noise Level
@ 8bit output
<= 3 Digit (Gain 0 dB)
@ 10bit output
<= 12 Digit (Gain 0 dB)
@ 12bit output
<= 48 Digit (gain 0 dB)
Minimum Scene Illumination 7.27 Lux at F1.2, 15.31668 Hz
Sync System Internal
Video Output Digital 8 ,10 or 12 bit Raw Data or RGB 8 bit
Interface PoE: IEEE802.3af CLASS3 (1000BASE-T)
Protocol GigE Vision 1.2 and GeniCam 2.0 compliant
Exposure Time Preset continuous mode: 10 seconds to 16,777,216 seconds; Preset trigger mode: 10 seconds to 16,777,216 seconds; Pulse width mode: 10 seconds to Unlimited.
ALC Electronic iris and AGC (ON/OFF)
Gain 0 to 20.4 dB
Gamma Gamma 1.0 (Factory default) or downloadable gamma table
AOI Function Programmable AOI setting via the communication
Smear Reduction Selectable ON/OFF via the communication
Color Interpolation Available on RGB output
White Balance Function Auto, Manual, and push to set white balance is available on both Raw Data output and RGB output.
Trigger Mode Edge preset trigger, pulse width trigger (unlimited exposure time)
Communication UART communication through Ethernet Port
I/Os UART communication through Ethernet Port
Power
Input Voltage
+10.8 to +26.4Vdc through power/IO connector or Power Over Ethernet; (Auto detection with power/IO connector prioritized)
Consumption
12V: 3.0W / 2.9W, PoE: 3.3W / 3.3W
Dimensions 35 (W) x 35 (H) x 57.3 (D) mm excluding connectors
Optical Filter IR cut filter on
Optical Center Accuracy Positional accuracy in H and V directions: +/- 0.3 mm; Rotational accuracy of H and V: +/- 1.5 deg.
Material Aluminum (AC)
Lens Mount C Mount
Connectors RJ45 connector; Power/IO connector: HR10A-10R-6PB (Hirose) or equivalent
Camera Mount Screws Two ¼” Tripod screw holes (one each on top and bottom plate); Twelve M4 screw holes (four each on top, bottom, and two each on both side plates)
Weight Approx. 130
Operating Temperature
Minimum
Environmental Temperature: -5 deg. C
Maximum
Environmental Temperature: 35 deg. C or camera housing temperature (Top Plate) : 65 deg. C
Storage Temperature Environmental Temperature: -30 to 65 deg. C
Vibration 20Hz to 200Hz to 20Hz (5min/cycle), acceleration 10G, 3 directions 30 min. each
Shock Acceleration 38G, half amplitude 6ms, 3 directions, 3 times each
Standard Compliancy EMS: EN61000-6-2, EMI: EN55011
RoHS RoHS compliant
