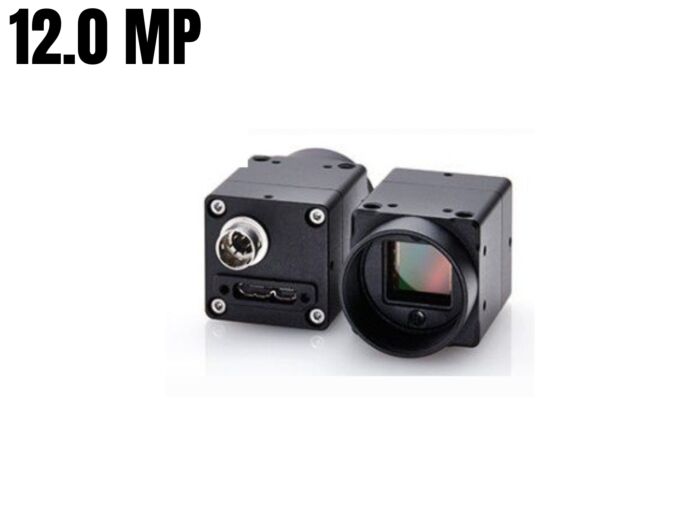

  • Sentech STC-MCS123BU3V | 12MP Camera | USB3 Camera | Color Camera  Image #1

Sentech STC-MCS123BU3V 12MP USB3, Color Camera

Quick Overview

Sentech's STC-MCS123BU3V is a USB3 camera with a 1.1" sensor (IMX253) and an astonishing 12MP of resolution.
Overview

The STC-MCS123BU3V is built for several industrial imaging applications. The versatility of the unit allows for numerous uses in factories and in surveillance.





Features:



  • USB3 Vision
  • Frame Rate (Full resolution): 41.9 fps @ 8.9 MP 8bits, 30.4 fps @ 12.3M 8bits
  • CMOS Global Shutter
  • Up to 64 Pixel Defect Correction (Default: ON)
  • 8bits, 10bits, 12bits output
  •


    Applications:



  • Machine Vision
  • Industrial IMaging
  • Factory Automation
  • Specifications
    Model Number STC-MBS123CU3V
    Image Sensor 1.1” 12.3M Progressive Monochrome CMOS (Sony: IMX253)
    Shutter Type Global
    Active Picture Elements 4,096 (H) x 3,000 (V)
    Cell Size 3.45 (H) x 3.45 (V) µm
    Sync System Free run / External trigger (Hardware / Software)
    Maximum Frame Rate (Full Scan)

    8bits output/30.5 fps

    10bits output/15.2 fps

    10bits Packed output/24.4 fps

    12bits output/15.2 fps

    12bits output/15.2 fps

    12bits Packed output/20.3 fps

    ADC bits width 10bits / 12bits
    Video Format BayerRG8 / BayerRG10 / BayerRG10p / BayerRG12 / BayerRG12p
    Noise Level

    8bits output/Less than 3 LSBs (Gain 0 dB)

    10bits / 10bits Packed output/Less than 12 LSBs (Gain 0 dB)

    12bits / 12bits Packed output/Less than 48 LSBs (Gain 0 dB)



    Sensitivity 490 Lux
    Image Flip Horizontal / Vertical / Horizontal and Vertical / Off
    Communication Via USB3.0 bus
    Interface USB3.0 Super speed (USB3.0 Micro B)
    Protocol USB3 Vision® 1.0 , GenICam Standard Version (SFNC 2.2, PFNC 2.0) compliant and Sentech’s unique protocol (on Normal SDK / Trigger SDK)
