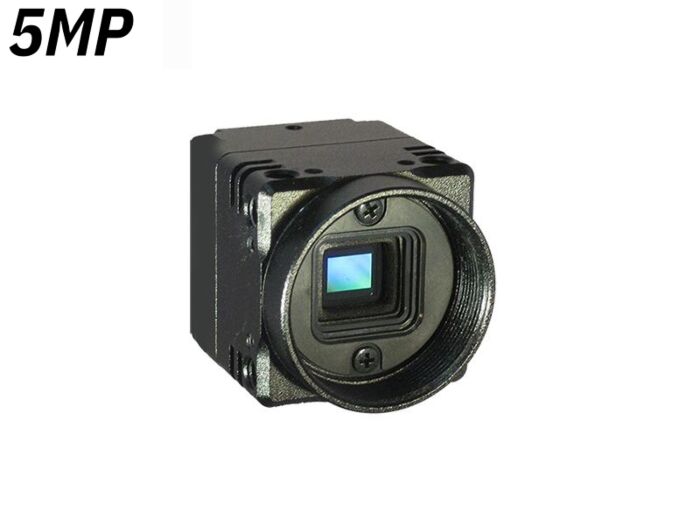

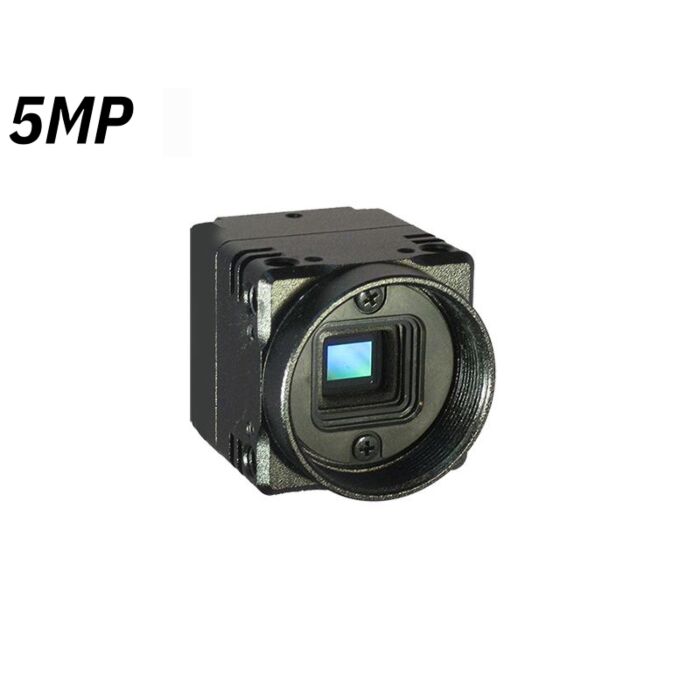

Omron STC-MCA5MUSB3 5MP USB 3.0, Color Camera (Discontinued)
SKU
STC-MCA5MUSB3
Quick Overview
*Product is Discontinued, Call For Replacement Options
The Omron/Sentech STC-MCA5MUSB3 USB 3.0 color camera features a 1/2.5" CMOS Aptina sensor with a scalable 5MP (14fps) to 32 x 32 pixels (2,106fps) resolution.
Omron is proud to present the STC-MCA5MUSB3, a member of the brand new USB 3.0 camera series. The color CMOS USB 3.0 camera is available in a 1/2.5" CMOS sensor with a 5MP to VGA scalable resolution and 14 to 123 FPS. This low cost, high performance camera is compatible with all standard industry drivers, and comes with the Omron Viewing Software and SDK.
Features:
Features:
- 1/2.5" CMOS Sensor
- 5 Megapixel to VGA Scalable Resolution
- Low Cost
| Image Sensor | 1/2.5” 5Mpixel CMOS; (Aptina: MT9P031/12STM) |
| Active Picture Element | 2592 (H) x 1944 (V) |
| Cell Size | 2.2 (H) x 2.2 (V) µm |
| Scanning System | Progressive |
| Shutter Type | Rolling Shutter |
| Scanning Methods | Full Scanning. Variable AOI (Horizontal/Vertical) |
| Maximum Frame Rate | |
14 fps @ | QSXGA (2592 x 1944) |
21 fps @ | QXGA (2048 x 1536) |
31 fps @ | UXGA (1600 x 1200) |
42 fps @ | SXGA (1280 x 1024) |
63 fps @ | XGA (1024 x 768) |
90 fps @ | SVGA (800 x 600) |
123 fps @ | VGA (540 x 480) |
| Sync System | Internal |
| Video Output | B GR-8bit; RAW 8bit/10bit/12bit.; Mono8bit/10bit/12bit |
| S/N Ratio | ≤ 4 Digit (Gain 0 dB) |
| Minimum Scene Illumination | 9.0 Lux @ F1.2 |
| ALC | Auto Shutter /Auto Gain |
| Electronic Shutter | Free-run Mode: Exposure Time -- 32 µsec to 38sec (in full scanning mode) Edge Preset Trigger Mode: Exposure Time -- 32 µsec to 38sec (in full scanning mode) Pulse-width Trigger Mode: Exposure Time -- 32 µsec to unlimited (in full scanning mode) |
| Gain | |
Analog | 0 to 26.97 dB |
Digital | 0 to 12.04 dB |
| Digital Clamp | 0 to 255 (LSB of 12bit output) |
| Gamma | 0.1 to 4.0 (settable with 0.1 step) |
| AOI Function | AOI (Horizontal: 32 to 2592 pixels / Vertical: 32 to 1944 lines); Adjustable Steps: 4 pixels in horizontal direction and 4 lines in vertical direction |
| Binning | Horizontal 1/2, 1/4 Vertical 1/2, 1/4 *Only pixels in the horizontal direction can be added to increase the brightness. |
| Skipping | Horizontal 1/2, 1/3, 1/4, 1/5, 1/6, 1/7 Vertical 1/2, 1/3, 1/4, 1/5, 1/6, 1/7, 1/8 |
| Mirror Image | Horizontal / Vertical / Horizontal and Vertical |
| Pixel Blemish Correction | Up to 64 pixels (This function is turned off at shipping.) |
| White Balance | Auto / Manual / One shot |
| Operation Mode | Free-run / Edge preset trigger / Pulse width trigger / Start and Stop trigger |
| Frame Memory | 1 frame (2592 x 1944) |
| Input / Output | USB 3.0 Super Speed (USB 3.0 Micro B) |
| Power | |
Input Voltage | +5V (typ.) (Conform to USB Standard) |
Consumption | Less than 2.0 W |
| Dimensions | 28 (W) x 28 (H) x 33.8 (D) mm (excluding connector) |
| Lens Mount | CS Mount |
| Optical Filter | IR Cut Filter |
| Optical Center Accuracy | Positional accuracy in H and V directions: +/- 0.5 mm Rotational accuracy of H and V: +/- 0.35 deg. |
| Weight | Approximately 38 g |
| Interface Connector | USB: USB3 Micro-B USB connector; IO signal: 6pin connector (HR10A-7R-6PB or equivalent) (2 inputs/ 2 outputs) |
| Operating Temperature | 0 to 40 deg. C |
| Storage Temperature | -30 to 65 deg. C |
| Vibration | 20Hz to 200Hz to 20Hz (5min./cycle), acceleration 10G, 3 directions 30 min. each |
| Shock | Acceleration 38G, half amplitude 6ms, 3 directions 3 times each |
| Standard Compliancy | EMS: EN61000-6-2, EMI: EN55011 |
| RoHS | RoHS compliant |
