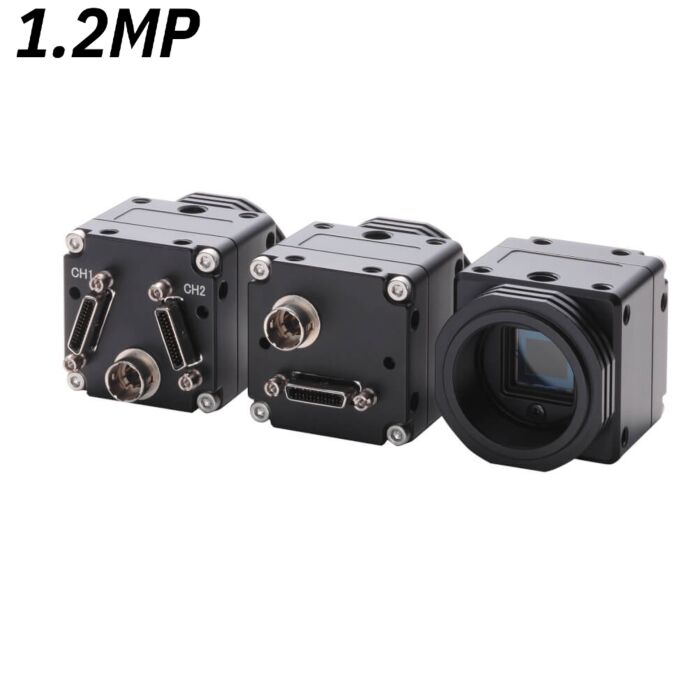

Omron STC-MC133PCL (STCMC133PCL) CCD CameraLink 1/3" Color Camera (CMOS Sensors: Sony ICX445AQA & Sony ICX445ALA)

Sentech's STC-MC133PCL is a CCD CameraLink 1/3" color camera built for industrial imaging applications (CMOS Sensors: Sony ICX445AQA & Sony ICX445ALA)
SKU
STC-MC133PCL

Discover all the capabilities of Sentech's STC-MC133PCL and simplify your imaging systems.

Features:

  • CameraLink CCD model (standard model)
  • Smallest and lightest compact camera link camera
  • 1/3 inch SX VGA CCD device adopted

Applications:

  • Machine Vision
  • Industrial Imaging
  • Industrial Inspection
Model STC-MC133PCL (color) STC-MB133PCL (black and white)
Image sensor 1/3 inch square pixel type SX VGA progressive color CCD (Sony made: ICX445 AQA)
Spectral distribution graph
1/2 inch square pixel type SX VGA progressive black and white CCD (Sony made: ICX445ALA)
Spectral distribution graph
Total number of pixels 1348 (H) x 976 (V)
Effective number of pixels SX VGA class: 1280 (H) x 960 (V)
Chip size (mm) 6.26 (H) x 5.01 (V) mm
Cell size (μm) 3.75 (H) x 3.75 (V) μm
Imaging method progressive
Partial scan Full scan, 1/2 scan, 1/4 scan,
Optional partial scan (minimum number of lines: 232)

Binning, binning, partial scan,
Binning 1/2 partial scan,
Binning 1/4 partial scan,
Binning arbitrary partial scan (minimum number of lines: 232)

Full scan, 1/2 scan, 1/4 scan,
Optional partial scan (minimum number of lines: 232)
Vertical frequency (frame rate) 22.4 Hz
Horizontal frequency 22.18 KHz
Pixel frequency 36.8181 MHz
S / N ratio (standard deviation) When outputting 10 bits: <= 10 Digit (Gain 0 dB)
Minimum subject illumination 0.1 Lux or less at F1.2 0.1 Lux or less at F1.2
Video output 8/10/12 bit Raw, RGB Data (Base configuration)
Number of taps 1 tap
Shutter speed OFF, 1 / 5.5 to 1 / 120,000 seconds (arbitrary H and CLK unit)
ALC Supported (AE, AGC), (Default: AE: OFF, AGC: OFF)
gain 0 to 27 dB
Gamma characteristics 1.0, 0.45
White balance Manual, Auto -
Pixel defect correction Up to 64 points
Power supply 12 Vdc (via camera link connector)
Current consumption 3.0 W or less
Trigger mode Edge preset trigger (V reset, non reset), pulse width trigger (V reset, non reset)
Communication function RS232 compliant (via camera link connector)
Dimensions (W) x (H) x (D) 28 (W) x 28 (H) x 40 (D) mm * Connector not included
Optical filter No IR cut filter No IR cut filter
Optical axis accuracy Position accuracy in H, V direction: ± 0.31 mm, Rotation accuracy of effective pixel plane in H, V direction: ± 2.1 °
Material Outer case: aluminum alloy, pedestal: polycarbonate ABS
Lens mount C mount
External connector Camera Link Connector: Miniature Connector (SDR)
Input / output signal connector: HR10A-7R-6PB (made by Hirose) equivalent
Camera mounting pedestal 4 side mounting possible (underside: 4 points, 3 side: 3 points screwing)
weight About 40 g
Guaranteed operating temperature Ambient temperature: 0 to + 50 ° C, Humidity: 0 to 85% RH (without condensation)
storage temperature Ambient temperature: -25 ° C to +65 ° C, Humidity: 0 to 90% RH (no condensation)
Vibration resistance 20 Hz to 200 Hz to 20 Hz (5 minutes / cycle), acceleration 10 G, 30 minutes in each direction
Shock resistance Acceleration 70 G, 6 ms (sine half wave), 3 times in each direction of XYZ
Standard EMS: EN61000-6-2, EMI: EN55011 (Class A)
Regulatory chemical substance correspondence RoHS compliant
