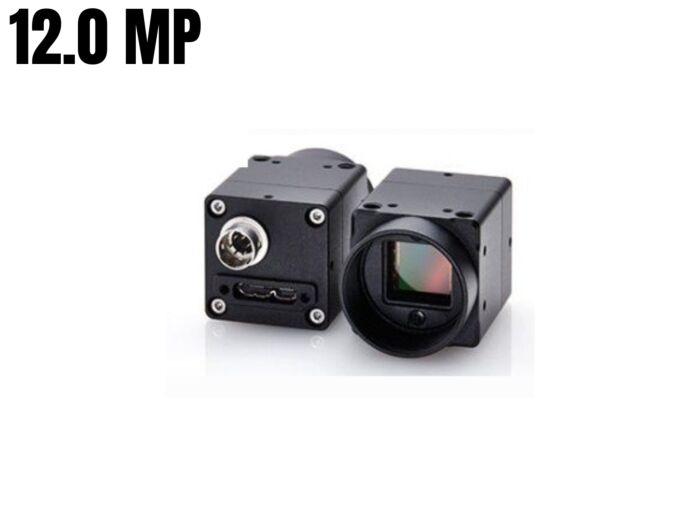

  • Sentech STC-MBS123BU3V | 12MP Cameras | USB3 Cameras | Monochrome Cameras Image #1

Sentech STC-MBS123BU3V 12MP USB3, Monochrome Camera

Quick Overview

Sentech's STC-MBS123BU3V is a monochrome camera ready to apply in industrial imaging applications.
Overview

The Sentech STC-MBS123BU3V is a 12MP USB3 Camera featuring an IMX253 sensor.



Features:



  • USB3 Vision
  • Frame Rate (Full resolution): 41.9 fps @ 8.9 MP 8bits, 30.4 fps @ 12.3M 8bits
  • CMOS Global Shutter
  • Up to 64 Pixel Defect Correction (Default: ON)
  • 8bits, 10bits, 12bits output




Applications:



  • Machine Vision
  • Industrial IMaging
  • Factory Automation
Specifications
Model Number STC-MBS123BU3V
Image Sensor 1.1” 12.3M Progressive Monochrome CMOS (Sony: IMX253)
Shutter Type Global
Active Picture Elements 4,096 (H) x 3,000 (V)
Cell Size 3.45 (H) x 3.45 (V) µm
Sync System Free run / External trigger (Hardware / Software)
Maximum Frame Rate (Full Scan)

8bits output/30.5 fps

10bits output/15.2 fps

10bits Packed output/24.4 fps

12bits output/15.2 fps

12bits output/15.2 fps

12bits Packed output/20.3 fps

ADC bits width 10bits / 12bits
Video Format Mono8 / Mono10 / Mono10p / Mono12 / Mono12p
Noise Level

8bits output/Less than 3 LSBs (Gain 0 dB)

10bits / 10bits Packed output/Less than 12 LSBs (Gain 0 dB)

12bits / 12bits Packed output/Less than 48 LSBs (Gain 0 dB)



Sensitivity 490 Lux
Image Flip Horizontal / Vertical / Horizontal and Vertical / Off
Communication Via USB3.0 bus
Interface USB3.0 Super speed (USB3.0 Micro B)
Protocol USB3 Vision® 1.0 , GenICam Standard Version (SFNC 2.2, PFNC 2.0) compliant and Sentech’s unique protocol (on Normal SDK / Trigger SDK)
