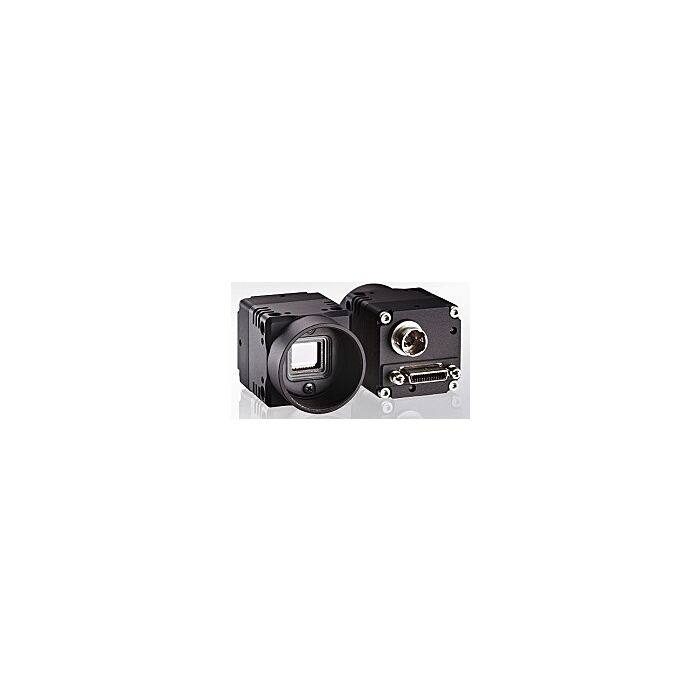

Omron STC-MB232PCL (STCMB232PCL) 1/1.8 inch CCD UXGA CameraLink Monochrome Camera
The Sentech STC-MB23PCL is a 1 / 1.8 inch CCD UXGA CameraLink camera built for industrial imaging applications and a variety of other functions the user requires.
$1,250.00
Please call for pricing
SKU
STC-MB232PCL
Sentech STC-MB232PCL
Features:
Applications:
| Model | STC-MC232PCL (color) | STC-MB232PCL (black and white) | |
| Image sensor | 1 / 1.8 inch square pixel type UXGA progressive color CCD (made by Sony: ICX274AQ) Spectral distribution graph |
1 / 1.8 inch square pixel type UXGA progressive black and white CCD (made by Sony: ICX274AL) Spectral distribution graph |
|
| Total number of pixels | 1688 (H) x 1248 (V) | ||
| Effective number of pixels | UXGA class: 1620 (H) x 1236 (V) | ||
| Chip size (mm) | 8.50 (H) x 6.80 (V) mm | ||
| Cell size (μm) | 4.40 (H) x 4.40 (V) μm | ||
| Imaging method | progressive | ||
| Partial scan | Full scan, 1/2 scan, 1/4 scan, Optional partial scan (minimum number of lines: 232) Binning, binning, partial scan, |
Full scan, 1/2 scan, 1/4 scan, Optional partial scan (minimum number of lines: 232) |
|
| Vertical frequency (frame rate) | 30.63 Hz | ||
| Horizontal frequency | 38.352 kHz | ||
| Pixel frequency | 73.636 MHz | ||
| S / N ratio (standard deviation) | When outputting 10 bits: <= 15 Digit (Gain 0 dB) | ||
| Minimum subject illumination | TBD Lux at F1.2 | TBD Lux at F1.2 | |
| Synchronization method | Internal sync | ||
| Video output | 8, 10 bit Raw Data (Base configuration) | ||
| Number of taps | 2 taps (camera link output clock frequency: 36.818 MHz) | ||
| Shutter speed | OFF, 1/9 to 1 / 240,000 seconds (arbitrary H and CLK units) | ||
| gain | 5.1 to 41.8 dB | ||
| Gamma characteristics | 1.0 | ||
| Power supply | 12 Vdc (via camera link connector) | ||
| Current consumption | 4.0 W or less | ||
| Trigger mode | Edge preset trigger (V reset, non reset), pulse width trigger (V reset, non reset) | ||
| Communication function | RS232 compliant (via camera link connector) | ||
| Dimensions (W) x (H) x (D) | 28 (W) x 28 (H) x 46.5 (D) mm * Connector not included → Drawing (PDF) | ||
| Optical filter | No IR cut filter | No IR cut filter | |
| Optical axis accuracy | Position accuracy in H, V direction: ± 0.31 mm, Rotation accuracy of effective pixel plane in H, V direction: ± 2.1 ° | ||
| Material (Exterior case) | Front, Base, Rear: Aluminum die-cast (ADC12), Cover: galvanized steel | ||
| Lens mount | C mount | ||
| External connector | Camera Link Connector: Miniature Connector (SDR) Input / output signal connector: HR10A-7R-6PB (made by Hirose) equivalent |
||
| weight | Approximately 65.5 g | ||
| Guaranteed operating temperature | -0 ° C to + 40 ° C | ||
| storage temperature | -30 ° C to + 65 ° C | ||
| Vibration resistance | 20 Hz to 200 Hz to 20 Hz (5 minutes / cycle), acceleration 10 G, 30 minutes in each direction | ||
| Shock resistance | Acceleration 70 G, 6 ms (half sine wave), 3 times in each direction | ||
| standard | EMS: EN61000-6-2, EMI: EN55011 (Class B) | ||
| Regulatory chemical substance correspondence | RoHS compliant | ||
