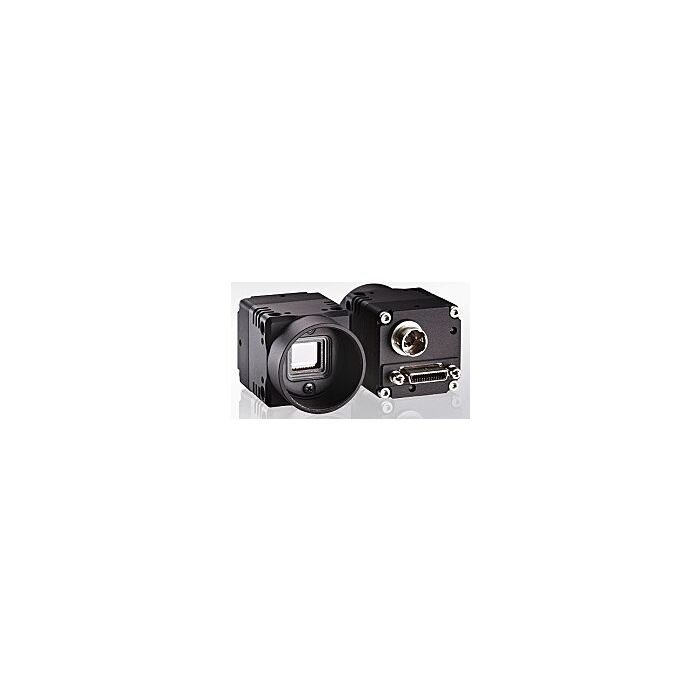

The Sentech STC-MB202PCL is a CCD camera link 1/1.8" monochrome camera.
SKU
STC-MB202PCL

Sentech STC MB202PCL built for a complete line-up of industrial imaging.



Features:



  • CameraLink CCD model (standard model)
  • Smallest and lightest compact camera link camera
  • 1 / 1.8 inch UXGA CCD element adoption, UXGA class
  • Successor to STC-POCLC 202A / STC-POCL 202A
  •


    Applications:



  • Industrial Imaging
  • Industrial Inspection
  • Machine Vision
  • Model STC-MC202PCL (color) STC-MB202PCL (black and white)
    Image sensor 1 / 1.8 inch square pixel type UXGA progressive color CCD (made by Sony: ICX274AQ)
    Spectral distribution graph
    1 / 1.8 inch square pixel type UXGA progressive black and white CCD (made by Sony: ICX274AL)
    Spectral distribution graph
    Total number of pixels 1688 (H) x 1248 (V)
    Effective number of pixels UXGA class: 1620 (H) x 1236 (V)
    Chip size (mm) 8.50 (H) x 6.80 (V) mm
    Cell size (μm) 4.40 (H) x 4.40 (V) μm
    Imaging method progressive
    Partial scan Full scan, 1/2 scan, 1/4 scan,
    Optional partial scan (minimum number of lines: 232)

    Binning, binning, partial scan,
    Binning 1/2 partial scan,
    Binning 1/4 partial scan,
    Binning arbitrary partial scan (minimum number of lines: 232)

    Full scan, 1/2 scan, 1/4 scan,
    Optional partial scan (minimum number of lines: 232)
    Vertical frequency (frame rate) 15.316 Hz
    Horizontal frequency 19.176 KHz
    Pixel frequency 36.8181 MHz
    S / N ratio (standard deviation) When outputting 10 bits: <= 10 Digit (Gain 0 dB)
    Minimum subject illumination 0.1 Lux or less at F1.2 0.1 Lux or less at F1.2
    Video output 8/10/12 bit Raw, RGB Data (Base configuration)
    Number of taps 1 tap
    Shutter speed OFF, 1/4 to 1 / 120,000 seconds (arbitrary H and CLK units)
    ALC Supported (AE, AGC), (Default: AE: OFF, AGC: OFF)
    gain 0 to 27 dB
    Gamma characteristics 1.0, 0.45
    White balance Manual, Auto -
    Pixel defect correction Up to 64 points
    Power supply 12 Vdc (via camera link connector)
    Current consumption 3.0 W or less
    Trigger mode Edge preset trigger (V reset, non reset), pulse width trigger (V reset, non reset)
    Communication function RS232 compliant (via camera link connector)
    Dimensions (W) x (H) x (D) 28 (W) x 28 (H) x 40 (D) mm * Connector not included → Drawing (PDF)
    Optical filter No IR cut filter No IR cut filter
    Optical axis accuracy Position accuracy in H, V direction: ± 0.31 mm, Rotation accuracy of effective pixel plane in H, V direction: ± 2.1 °
    Material Outer case: aluminum alloy, pedestal: polycarbonate ABS
    Lens mount C mount
    External connector Camera Link Connector: Miniature Connector (SDR)
    Input / output signal connector: HR10A-7R-6PB (made by Hirose) equivalent
    Camera mounting pedestal 4 side mounting possible (underside: 4 points, 3 side: 3 points screwing)
    weight About 40 g
    Guaranteed operating temperature Ambient temperature: 0 to + 50 ° C, Humidity: 0 to 85% RH (without condensation)
    storage temperature Ambient temperature: -25 ° C to +65 ° C, Humidity: 0 to 90% RH (no condensation)
    Vibration resistance 20 Hz to 200 Hz to 20 Hz (5 minutes / cycle), acceleration 10 G, 30 minutes in each direction
    Shock resistance Acceleration 70 G, 6 ms (sine half wave), 3 times in each direction of XYZ
    standard EMS: EN61000-6-2, EMI: EN55011 (Class A)
    Regulatory chemical substance correspondence RoHS compliant
