Omron STC-HD93SDI-B (STCHD93SDIB) 1/3" HD Board Level Camera

Omron STC-HD93SDI-CS (STCHD93SDICS) 1/3" HD CCD Camera

Omron's STC-HD93SDI-CS is 1280 pixels x 720p, 1/3" CCD, 60 fps, HD-SDI, Cased High Definition Block Camera. Available in Color Video Output DVI Model- DVI 1.0 conformity RGB, 1280 (H) x 720 (V),59.94Hz / 60Hz / 50Hz / 29.97Hz / 30Hz / 25Hz SDI Model - HD-SDI (SMPTE292M Compliant) YPbPr, 1280 (H) x 720 (V), 60 Hz / 59.94 Hz / 50 Hz Min Illumination: 4 Lux at F1.2 at 50 % IRE, AGC ON and 1/60 seconds shutter speed with IR cut filter (CMOS Sensor: Sony ICX692AQA)

*Product is discontinued, Replacement Option: STC-HD213SDI

SKU
STC-HD93SDI-CS

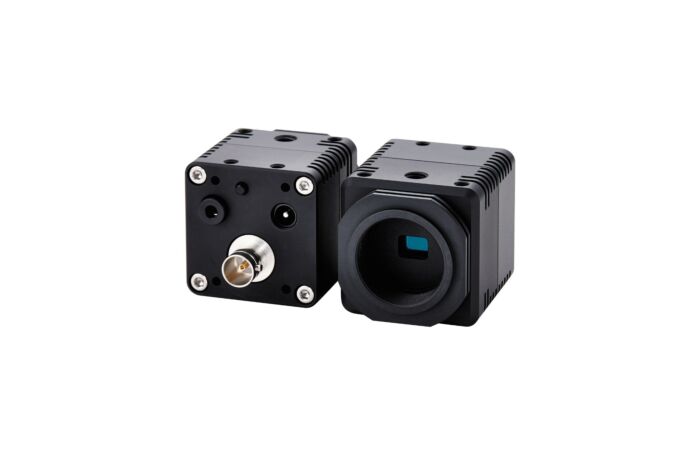

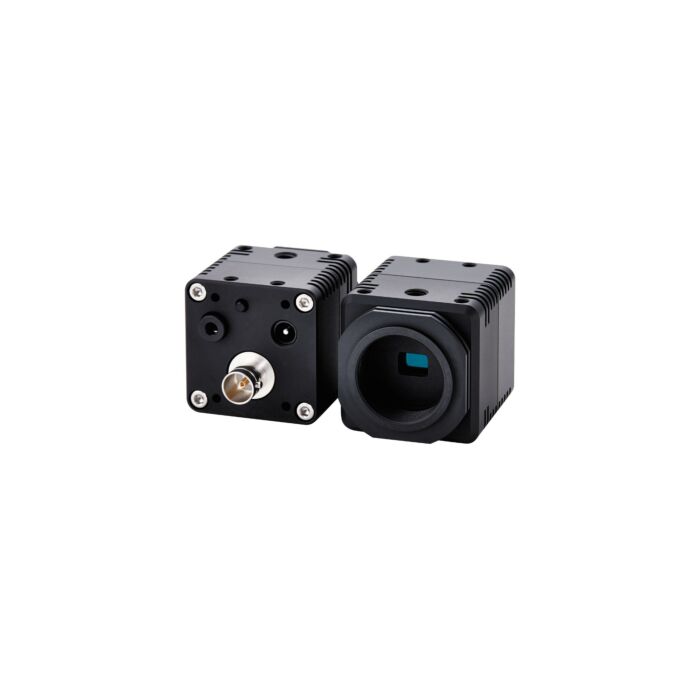

The STC-HD93SDI-CS is our first HD Digital output cased camera, ideal for applications requiring direct-connect monitor viewing with High Definition resolution. This CCD based camera outputs a true HD 720p, 16x9 image at 60fps. It also features the capability to program 28 individual DSP profiles and has a programmable on-camera push-button for manual control. The STC-HD93SDI also boasts an ultra-compact size of 40 (W) x 40 (H) x 45.8 (D) mm.

Features:

  • 1/3" CCD Image Sensor
  • True 720p, High Definition Output
  • Low Cost & Compact Case Size

  • Applications:

  • Inspection
  • Industrial
  • Factory Automation
  • Robotics
  • Machine Vision
  • Image Sensor 1/3" interline SXGA CCD: ICX692AQA
    HD Active Picture Element 1280 (H) x 720 (V)
    Chip Size 6.04 (H) x 4.0 (V) mm
    Cell Size 4.08 (H) x 4.08 (V) µm
    Minimum Scene Illumination 4 Lux at F1.2 at 50 % IRE, AGC ON and 1/60 seconds shutter speed with IR cut filter
    Resolution 600 TV lines
    Sync System Internal
    SDI Model
    HD-SDI (SMPTE292M Compliant) YPbPr, 1280 (H) x 720 (V), 60 Hz / 59.94 Hz / 50 Hz
    ALC Can be configured via the UART communication with auto electronic shutter and AGC
    Shutter Speed Adjustable shutter speed via the UART communication Up to 1/100,000 seconds at 60 Hz / 59.94 Hz or up to 1/83,947 seconds at 50 Hz
    Gain AGC or Fixed gain selectable via the UART communication Gain range: 0 to 18.3 dB
    Digital Gain Up to 5.9866 dB
    Gamma 1.0, 0.9, 0.8, 0.7, 0.6, 0.5, 0.45, 0.3 or manual gamma Selectable gamma via the UART communication
    White Balance Auto white balance / manual white balance / push to set white balance Selectable white balance via the UART communication
    Mirror Image Normal image and horizontal flip are selectable mirror image via the UART
    DSP Preset Twenty eight DSP presets Selectable picture mode via the UART communication
    Line Generator Both horizontal and vertical with all available colors Adjustable thickness via the UART communication
    Shadow Mask Generator Both horizontal and vertical with shading level adjustment via the UART communication
    Communication +3.3V UART communication via 3.5Φ stereo jack
    Character Generator Built-in character generation function via the UART communication
    Pixel Blemish Collection Up to 64 pixel blemish static collection
    Input Voltage
    +9 to +15 Vdc (Typical: +12 Vdc)
    Input Voltage
    Less than 2.8W
    Dimensions 40 (W) x 40 (H) x 45.8 (D) mm
    Optical Filter IR cut filter on
    Lens Mount CS-mount
    Video Output
    SDI Output:BNCconnector
    Power Input
    12V power jack
    External Control
    3.5Φ stereo jack with SW board
    Communication
    3.5Φ stereo jack
    Button Primary SW Initial press button function: push to set white balance Initial hold button function: Auto white balance (Function is selectable via the UART communication)
    Weight Approximate 120g
    Operating Temperature 0 to +40 deg. C
    Storage Temperature -30 to +65 deg. C
    Vibration 20Hz to 200Hz to 20Hz (5min./cycle), acceleration: 10G, 30 min., XYZ each directions
    Shock Acceleration: 38G, half amplitude 6ms, 3 times XYZ each directions
    Standard Compliancy EMS: EN61000-6-2, EMI: 55011
    RoHS RoHS compliance
