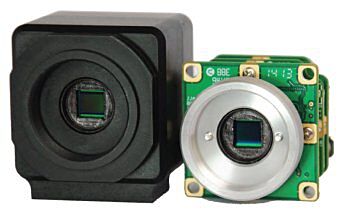

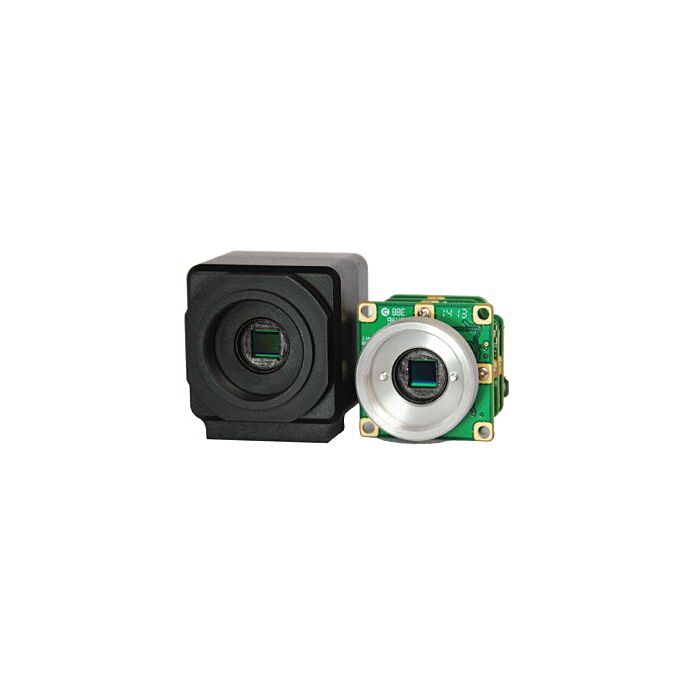

Omron STC-HD223 (STCHD223) 1080p Camera (Cased) (14 MP CMOS Sensor)

The STC-HD223 features a 2/2.23” CMOS Sensor, and 60 FPS. With an extremely low cost, this camera can easily integrate into any system requiring high quality, high resolutions image. This CMOS based camera outputs a true HD 1080p, a 16x9 image at 60fps.

Additional Sentech HD-223 Cameras include:

STC-HD223-B (Board Level Camera)

STC-HD223B-CS (CS-Mount Board Level)



SKU
STC-HD223

The STC-HD233-B is our first CMOS HD Digital output board camera, ideal for applications requiring direct-connect monitor viewing with High Definition resolution.


Features:


  • HD 1080p Resolution
  • 60 FPS
  • LVDS or SDI Video Output
  •

    Applications:

  • Remote Viewing
  • Surveillance
  • Inspection
  • Industrial
  • Security
  • Imaging



    Model No

    STC-HD223B

    Image Sensor

    1/2.33” 14 MP CMOS Sensor ( 4416 (H) x 3312 (V) )

    HD Active Picture Elements

    1920 (H) x 1080 (V) / 1280 (H) x 720 (V)

    Scanning System

    Full scanning, Variable ROI

    Image Size

    6.23 (H) x 4.65 (V) mm

      Function



    Pixel Size

    1.4 (H) x 1.4 (V) um

    S/N Ratio

    35 dB

    Minimum Scene Illumination

    650 mV / Lux - sec

    Sync System

    Internal

    Video Output

    DVI 1.0 conformity RGB, 1920 (H) x 1080 (V) 60 / 50 / 30 Hz, 1280 (H) x 720 (V) 60 / 50 Hz

      Mechanical



    Camera functions

    -

    - Exposure Control

    Shutter: 14.81 usec ~ 16.67 msec Configurable via UART communication

    - Gain Control

    Gain: 1x ~ 60.24x Configurable via UART communication

    - White Balance

    Auto, manual, or push to set white balance available Configurable via UART communication

    - Auto Band Filter

    Configurable via UART communication

    - Auto Black Level Calibration

    Configurable via UART communication

    - Gamma

    0.3 to 1.0 Configurable via UART communication

    - Binning

    2 x 2 Binning Configurable via UART communication

    - Mirror Image

    Normal Image / Horizontal Flip / Vertical Flip / Horizontal & Vertical Flip Configurable via UART communication

    - Pixel Defect Correction

    Automatic detection and correction Configurable via UART communication

    - UART Communication

    +3.3V UART communication via 3.5 Φ stereo jack Speed: 9,600 bps

    Power

    -

    - Input Voltage

    +9 ~ +15 Vdc (Typical: +12 Vdc)

    - Consumption

    120

    Dimensions

    35 (W) x 35 (H) x Var. (D) mm

    Optical Filter



    Lens Mount

    CS-Mount (Cased & Board Cameras) No Lens Mount (Board Cameras)

    Interface Connector

    -

    - Video Output

    HDMI Connector

    - Power Input

    12V power jack

    - Communication

    3.5φ stereo jack

    Weight

    Approx. 88g

      Environmental



    Temperature

    -

    - Operational

    0 to 50 deg. C

    - Storage

    -30 ~ 65°C

    Standard Compliance

    FCC Compliant

    RoHS

    RoHS Compliant
