Omron Sentech STC-HD203SDI 3G-SDI Industrial Camera | Sony IMX136 1080p CMOS | C-Mount (Discontinued)
*In Stock Now Only 3 Left, Replacement Option: STC-HD213SDI

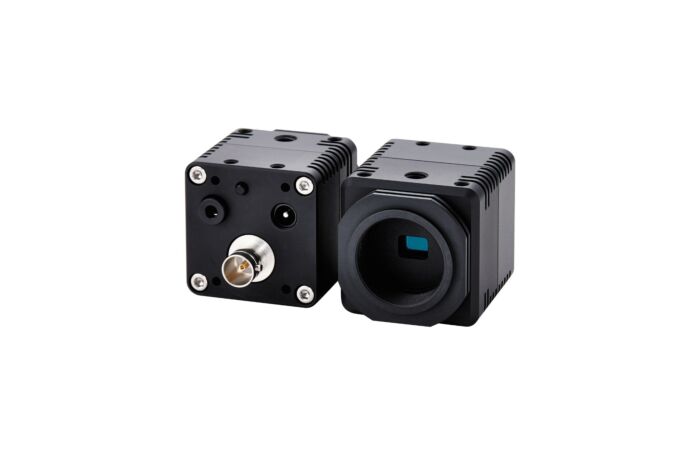

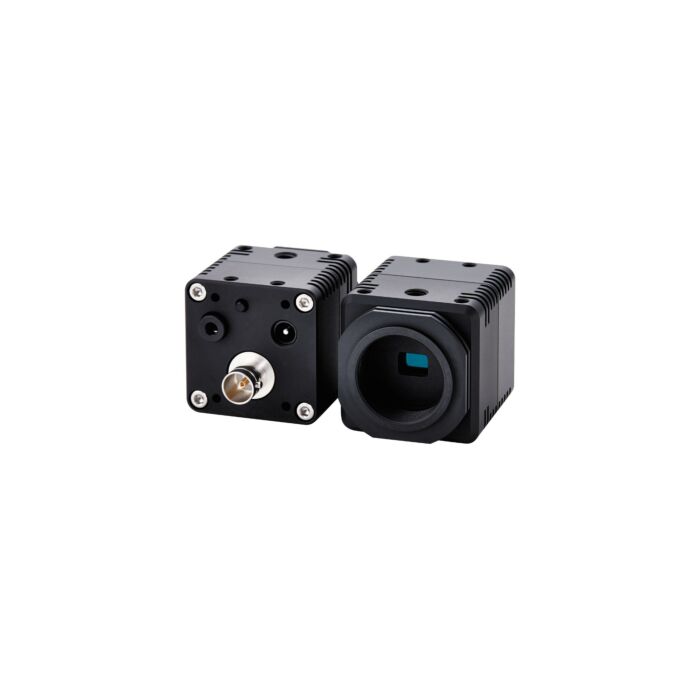

The STC-HD203SDI is our first CMOS HD Digital output cased camera, ideal for applications requiring direct-connect monitor viewing with High Definition resolution. This CMOS based camera outputs a true HD 1080p, 16x9 image at 60fps (CMOS Sensor: Sony IMX136)
The STC-HD203SDI from Omron Sentech is a high-performance Full HD industrial camera designed for machine vision, monitoring, and imaging applications requiring reliable 3G-SDI video output.
Built around the Sony IMX136 CMOS sensor, the camera delivers 1920 × 1080 resolution with excellent sensitivity and image quality. The integrated 3G-SDI interface provides uncompressed digital video transmission, making it ideal for broadcast monitoring systems, industrial inspection stations, robotics, and surveillance platforms.
The camera features an ultra-compact 40mm square housing, making it easy to integrate into space-constrained systems such as OEM vision platforms, robotics systems, and embedded inspection equipment.
Advanced image processing capabilities allow users to configure DSP profiles, gain control, shutter speed, white balance, WDR, gamma settings, and other parameters through UART communication, giving engineers complete control over imaging performance.
Although the STCHD203SDI is discontinued, Aegis Electronic Group continues to support customers with compatible replacement cameras, integration support, and technical guidance.
Features:
- 1/2.8" CMOS Sensor
- Full HD 1080p
- Direct-Connect Monitor Viewing via 3G-SDI
- Low Cost & Compact Case Size
Applications:
- Machine Vision Inspection Systems
- Industrial Automation Imaging
- Robotics Vision Systems
- Scientific Imaging
- Factory Quality Control
- Security and Surveillance Systems
- Broadcast and Monitoring Systems
- Embedded Vision Platforms
- Medical and Laboratory Imaging
Imaging
Model No | STC-HD203SDI |
Image Sensor | 1/2.8" CMOS (Sony: IMX136) Rolling Shutter |
Active Picture Element | 1936 (H) x 1096(V) |
HD Active Picture Element | 1920 (H) x 1080 (V) |
Optical Size | 5.44 (H) x 3.09 (V) mm |
Cell Size | 2.8 (H) x 2.8 (V) μm |
Function
Minimum Illumination | 0.6 Lux (AGC On) @ F1.2 |
Sync System | Internal |
Video Output | - |
- SDI Model | 3G-SDI(SMPTE424M Compliant), 4:2:2 YCbCr 10bit 1080P60/59.94/50; HD-SDI (SMPTE292M Compliant) 4:2:2 YCbCr 10bit 1080P30/29.97/25 720P60/59.94/50 |
ALC | Can be configured via UART communication with auto electronic shutter and AGC |
Shutter Speed | - |
- Extended | Extend shutter frame unit (Up to2.55 sec) |
- High Speed | Up to 1/10,000 seconds |
Gain | AGC or Fixed Gain selectable via the UART communication; 0 to 45 dB |
Gamma | Selectable gamma through 5 preset (one preset is manual, / 0.45 / 0.6 / 0.8 / 1); Selectable gamma via the UART communication (Default: manual) |
White Balance | Auto white balance / manual white balance / push to set white balance; Selectable white balance via the UART (Default: Auto white balance) |
WDR | Wide Dynamic Range OFF/ON (Defalut:OFF) WDR enable via the UART communication |
Mirror Image | Both horizontal and vertical with shading level adjustment via the UART communication( Default: Disable) |
Picture Modes | 8 user preset mode, Normal picture mode or pseudo color mode can be selectable; Selectable picture mode via the UART communication (Default: Preset 0) |
Line Generator | Both horizontal and vertical with all available colors (Line number: 2); Adjustable thickness via the UART communication ( Default: Disable) |
Shadow Mask Generator | Both horizontal and vertical with shading level adjustment via the UART communication( Default: Disable) |
Freeze Image | - |
Communication | +3.3V UART communication via 3.5Φ stereo jack; (Baud rate: 38,400bps, 19,200bps, 9,600bps) |
Character Generation | Built-in character generating function via the UART communication |
Pixel Blemish Correction | Supported |
Mechanical
Power | - |
- Input Voltage | +9 ~ +15 Vdc (Typical: +12 Vdc) |
Consumption | 4.4W (preliminary) |
Dimensions | 40 (W) x 40 (H) x 51.1(D) mm (Excluding the connector) |
Optical Filter | IR cut filter with OPLF |
Material | Aluminum (AC) |
Lens Mount | C mount (Recommendation F: more than 2.0) |
Interface Connector | - |
Video Output | DVI Output: HDMI Connector |
Power Input | +9 ~ +15 Vdc (Typical: +12 Vdc) |
External Control | 3.5φ stereo jack |
Environmental
Communication | Approx. 116g |
Operating Temperature | 0 ~ 40°C |
Storage Temperature | -30 ~ 65°C |
Vibration | 20 Hz ~ 200 Hz ~ 20 Hz (5 min. /cycle), Acceleration 10G, XYZ 3 directions 30 minutes each |
Shock | Acceleration 70G, half amplitude 6 ms, XYZ 3 directions 3 times each |
Standard Compliancy | EMS: EN61000-6-2, EMI: EN55022 (Class B) |
RoHS | RoHS Compliant |
