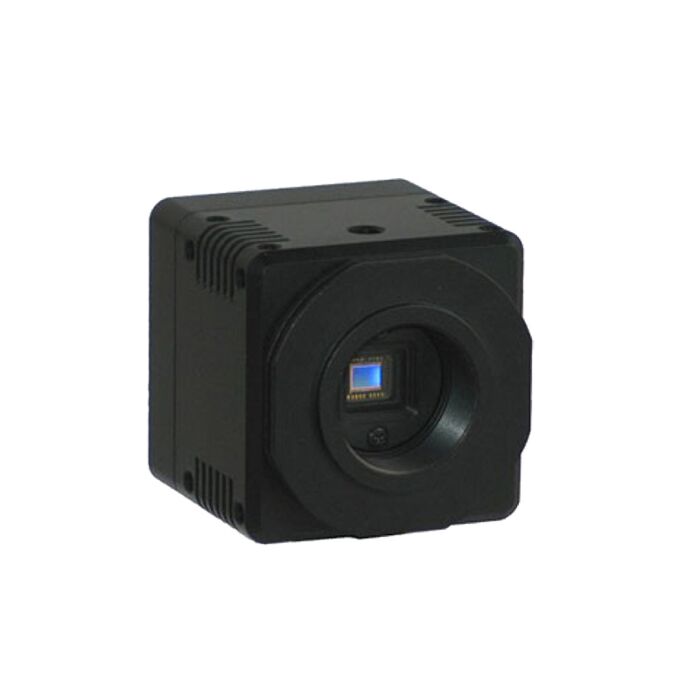

Omron STC-HD133DV (STCHD133DV) 1/3" HD Camera
1280 pixels x 720p, 1/3" CCD, 60 fps, HD-DVI, Cased High Definition Block Camera. Available in Color Video Output: DVI 1.0 compliant; RGB, 1280 (H) x 720 (V); 60 FPS / 59.94 Hz / 50 Hz Min Illumination: 5 Lux at F1.2 at 50% IRE; AGC ON and 1/60 second shutter speed with IR Cut Filter (CMOS Sensor: Sony ICX445AQA)
SKU
STC-HD133DV
The STC-HD133DV is Sentech's first HD Digital output cased camera, ideal for applications requiring direct-connect monitor viewing with High Definition resolution. This CCD based camera outputs a true HD 720p, 16x9 image at 60fps. It also features the capability to program 28 individual DSP profiles and has a programmable on-camera push-button for manual control. The STC-HD133DV also boasts an ultra-compact size of 40 (W) x 40 (H) x 45.8 (D) mm.
Features:
Applications:
| Resolution | 16:9 Format 720p | ||||||||
| Image Sensor | 1/3" Interline SXGA CCD (ICX445AQA) | ||||||||
| Effective Picture Element | 1296 (H) x 966 (V) | ||||||||
| Active Picture Element | 1280 (H) x 720 (V) | ||||||||
| Chip Size (um) | 6.26 (H) x 5.01 (V) mm | ||||||||
| Cell Size (um) | 3.75 (H) x 3.75 (V) μm | ||||||||
| Minimum Illumination | 5 Lux at F1.2 at 50% IRE; AGC ON and 1/60 second shutter speed with IR Cut Filter | ||||||||
| Sync System | Internal Sync. | ||||||||
| Video Output | DVI 1.0 compliant, RGB, 1280 (H) x 720 (V), 60 Hz / 50 Hz | ||||||||
| ALC | Can be configured via the UART communication; w/ Optical Iris, Auto Electronic Shutter and AGC | ||||||||
| Shutter Speed | Shutter speed adjustable via the UART Communication; Up to 1/100,000 seconds at 60Hz or up to 1/83,947 seconds at 50Hz | ||||||||
| Gain | AGC or Fixed gain, selectable via the UART communication; Gain range: 0 to 18.3 dB | ||||||||
| Digital Gain | Up to 5.9866 dB | ||||||||
| Gamma | 1.0, 0.9, 0.8, 0.7, 0.6, 0.5, 0.45, 0.3 or manual gamma; Gamma selectable via the UART communication | ||||||||
| WhiteBalance | Auto / Manual / Push-to-set White Balance selectable via the UART communication | ||||||||
| Mirror Image | Normal Image and Horizontal Flip are selectable via UART communication | ||||||||
| DSP Preset | 28 DSP Presets: Picture, Bright and Pseudo Color (includes 30 pseudo colors); Picture mode selectable via the UART communication | ||||||||
| Line Generator | Both horizontal and vertical available with all colors; Thickness adjustable via the UART communication | ||||||||
| Shadow Mask Generator | Horizontal and vertical with shading level adjustment via the UART communication | ||||||||
| Communication | UART communication via 3.5ф stereo jack | ||||||||
| Character Generator | Built-in character generating function via the UART communication | ||||||||
| Pixel Blemish Collection | Up to 64 pixel blemish static collection | ||||||||
| Optical Filter | Includes IR Cut Filter | ||||||||
| Button | One push button; Initial press button function: push-to-set white balance; Initial hold button function: Auto white balance; (Function is selectable via the UART communication) | ||||||||
| Interface Connector |
|
||||||||
| Power |
|
||||||||
| Temperature |
|
||||||||
| Dimensions | 40 (W) x 40 (H) x 45.8 (D) mm | ||||||||
| Weight | Approximately 120g |
