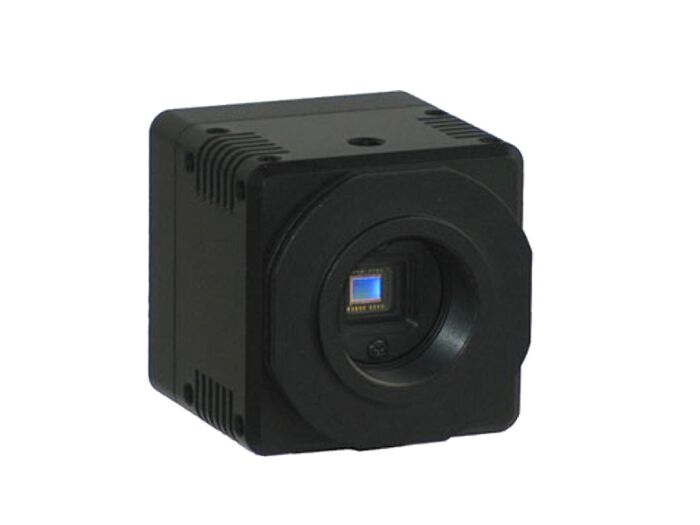

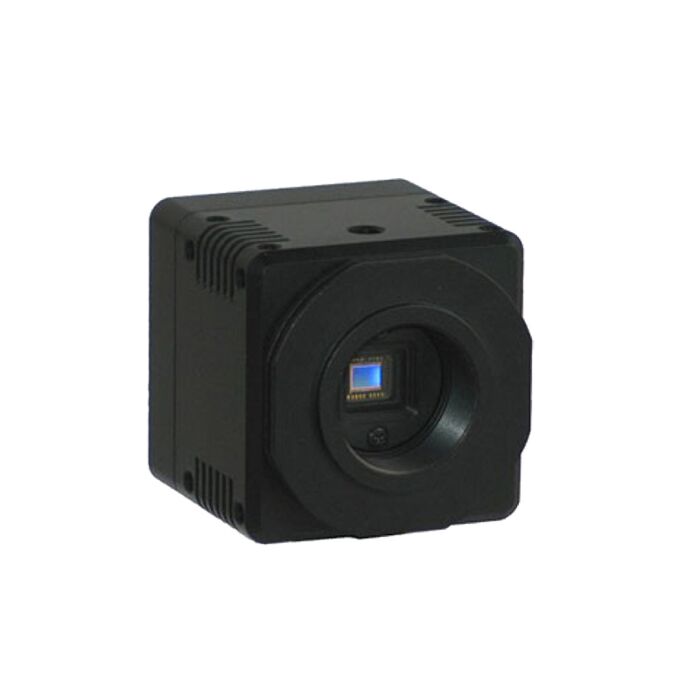

Omron STC-GEC83OX 0.8MP GigE Camera

1024 pixels x 768 pixels, 1/3" PS IT CCD, 36 fps, Gigabit Ethernet Camera. Available in Color
SKU
STC-GEC83OX-Sentech EOL

The STC-GEC83OX is part of Sentech's GigE camera line. It features a 1/3" color XGA sensor, 36fps and communication over a 12 pin Hirose or Ethernet connector. The STC-GEC83OX boasts a user-programmable Xilinx FPGA, a 32MB user memory and eight opto-isolated configurable I/Os. This camera meets all industry standards for GigE Vision® and GenICam™

  • 1/3" CCD Image Sensor
  • XGA (0.8 Megapixel), 36fps
  • User-Programmable Xilinx FPGA
STC-GEC83OX Specifications
Imager 1/3” Interline XGA color progressive CCD: ICX204AQ
Total Picture Element 1077 (H) x 788 (V)
Active Picture Element XGA: 1024 (H) x 768 (V)
Chip Size 5.5 (H) x 4.92 (V) mm
Cell Size 4.65 (H) x 4.65 (V) µm
Scanning System Progressive
Vertical Frequency 36.42113 Hz at full resolution 0.44238 to 147.16356 Hz adjustable via the communication Max. frame rate depends on the AOI setting Max. frame rate of the camera (147.16356 Hz) is 146 vertical resolution AOI setting
Horizontal Frequency 28.9907 kHz
Pixel Frequency 36.818175 MHz
Noise Level
@ 8bit output
<= 3 Digit (Gain 0 dB)
@ 10bit output
<= 12 Digit (Gain 0 dB)
@ 12bit output
<= 48 Digit (gain 0 dB)
Minimum Scene Illumination 24.70 Lux at F1.2, 36.42113 Hz
Sync System Internal
Video Output Digital 8 ,10 or 12 bit Raw Data or RGB 8 bit
Interface PoE: IEEE802.3af CLASS3 (1000BASE-T)
Protocol GigE Vision 1.2 and GeniCam 2.0 compliant
Exposure Time Preset continuous mode: 10 seconds to 16,777,216 seconds; Preset trigger mode: 10 seconds to 16,777,216 seconds; Pulse width mode: 10 seconds to Unlimited.
ALC Auto iris lens, electronic iris and AGC (ON / OFF)
Gain 0 to 20.4 dB
Gamma Gamma 1.0 (Factory default) or downloadable gamma table
AOI Function Programmable AOI setting via the communication
Smear Reduction Selectable ON/OFF via the communication
Color Interpolation Available on RGB output
White Balance Function Auto, manual and push-to-set white balance is available on both Raw data output and RGB output
I/Os Three opto-isolated inputs and five opto-isolated outputs
Auto Iris Lens Control DC IRIS control input with video level target, peak/average and zone weight settings via the communication
Power
Input Voltage
+10.8 to +26.4 Vdc through power/IO connector or Power Over Ethernet (Auto detection with power/IO connector prioritized)
Consumption
< 6.0 W (when user configurable FPGA is working)
Trigger Mode Edge preset trigger, Pulse width trigger (unlimited long exposure)
Communication UART Communication through Ethernet port
User Configurable FPGA
FPGA
XILINX FPGA (XC3SD1800A, CSG484 package), 1,800K gates
DDR2
W9725G6JB-25 (Winbond), 32 MB
EEPROM
M95512-RMN6TP (ST Micro), 512 KB
Configuration EEPROM
M25P80-VMP6G (ST Micro), 8 MB
Dimensions 50 (W) x 50 (H) x 53.4 (D) mm excluding connectors
Optical Filter IR cut filter on
Optical Center Accuracy Positional accuracy in H and V directions: +/- 0.3 mm Rotational accuracy of H and V: +/- 1.5 deg.
Material Aluminum (AC)
Lens Mount C Mount
Connectors RJ45 connector Power/IO connector: HR10A-10R-12PB (Hirose) or equivalent DC IRIS lens connector: M1951 (EMUDEN) or equivalent
Camera Mount Screws Two ¼” Tripod screw holes (one on each top and bottom plate) Sixteen M4 screw holes (Four on each top, bottom and both side plate)
Weight Approximately 170g
Operating Temperature
Minimum
Environmental Temperature: -5 deg. C
Maximum
Camera housing temperature (Top plate): 70 deg. C (See Operational temperature and Power Consumption)
Storage Temperature -30 ~ 65 deg. C
Vibration 20 Hz to 200 Hz to 20 Hz (5 min. /cycle), acceleration 10G, 3 directions 30 min. each
Shock Acceleration 38G, half amplitude 6 ms, 3 directions 3 times each
Standard Compliancy TBD
RoHS RoHS compliant
