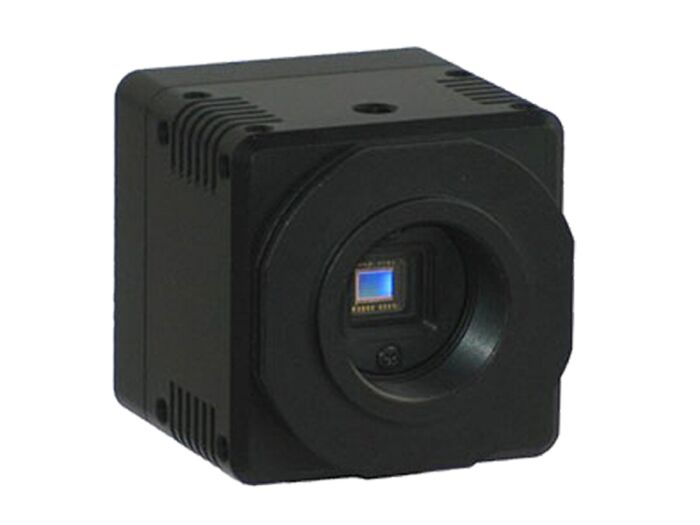

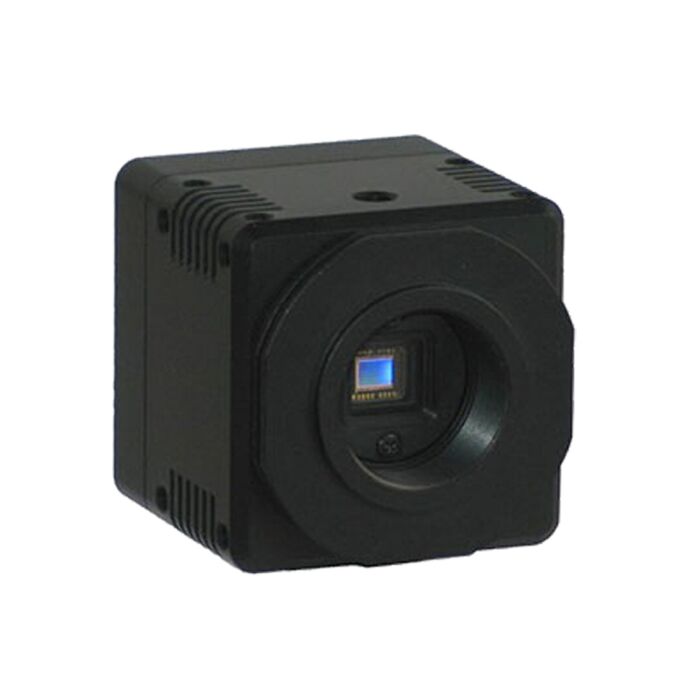

Omron STC-GE152OX 1.3MP GigE Camera

1360 pixels x 1040 pixels, 1/2" PS IT CCD, 95 fps, Gigabit Ethernet Camera. Available in Monochrome (Black & White)
SKU
STC-GE152OX-DP-Sentech EOL

The STC-GE152OX is part of Sentech's GigE camera line. It features a 1/2" monochrome SXGA sensor, 19fps and communication over a 12 pin Hirose or Ethernet connector. The STC-GE152OX boasts a user-programmable Xilinx FPGA, a 32MB user memory and eight opto-isolated configurable I/Os. This camera meets all industry standards for GigE Vision® and GenICam™.

  • 1/2" CCD Image Sensor
  • SXGA (1.3 Megapixel), 19fps
  • User-Programmable Xilinx FPGA
STC-GE152OX Specifications
Imager 1/2” Interline SXGA monochrome progressive CCD: ICX205AL
Total Picture Element 1434 (H) x 1050 (V)
Active Picture Element SXGA: 1360 (H) x 1040 (V)
Chip Size 7.6 (H) x 6.2 (V) mm
Cell Size 4.65 (H) x 4.65 (V) µm
Scanning System Progressive
Vertical Frequency 19.25954 Hz at full resolution 0.31387 to 71.66965 Hz adjustable via the communication Max. frame rate depends on the AOI setting Max. frame rate of the camera (71.66965 Hz) is 200 vertical resolution AOI setting
Horizontal Frequency 20.5688 kHz
Pixel Frequency 36.8181 MHz
Noise Level
@ 8bit output
<= 3 Digit (Gain 0 dB)
@ 10bit output
<= 12 Digit (Gain 0 dB)
@ 12bit output
<= 48 Digit (gain 0 dB)
Minimum Scene Illumination 0.41 Lux at F1.2, 19.25954 Hz
Sync System Internal
Video Output Digital 8 ,10 or 12 bit Raw Data
Interface PoE : IEEE802.3af CLASS3 (1000BASE-T)
Protocol GigE Vision 1.2 and GeniCam 2.0 compliant
Exposure Time Preset continuous mode: 10 useconds to 16,777,216 useconds Preset trigger mode: 10 useconds to 16,777,216 useconds Pulse width mode: 10 useconds to Unlimited
ALC Auto iris lens, electronic iris and AGC (ON / OFF)
Gain 0 to 20.4 dB
Gamma Gamma 1.0 (Factory default) or downloadable gamma table
AOI Function Programmable AOI setting via the communication
Smear Reduction Selectable ON/OFF via the communication
Color Interpolation N/A
White Balance Function N/A
I/Os Three opto-isolated inputs and five opto-isolated outputs
Auto Iris Lens Control DC IRIS control input with video level target, peak/average and zone weight settings via the communication
Power
Input Voltage
+10.8 to +26.4 Vdc through power/IO connector or Power Over Ethernet (Auto detection with power/IO connector prioritized)
Consumption
< 6.5 W (when user configurable FPGA is working)
Trigger Mode Edge preset trigger, Pulse width trigger (unlimited long exposure)
Communication UART Communication through Ethernet port
User Configurable FPGA
FPGA
XILINX FPGA (XC3SD1800A, CSG484 package), 1,800K gates
DDR2
W9725G6JB-25 (Winbond), 32 MB
EEPROM
M95512-RMN6TP (ST Micro), 512 KB
Configuration EEPROM
M25P80-VMP6G (ST Micro), 8 MB
Dimensions 50 (W) x 50 (H) x 53.4 (D) mm excluding connectors
Optical Filter No filter
Optical Center Accuracy Positional accuracy in H and V directions: +/- 0.3 mm Rotational accuracy of H and V: +/- 1.5 deg.
Material Aluminum (AC)
Lens Mount C Mount
Connectors RJ45 connector Power/IO connector: HR10A-10R-12PB (Hirose) or equivalent DC IRIS lens connector: M1951 (EMUDEN) or equivalent
Camera Mount Screws Two ¼” Tripod screw holes (one on each top and bottom plate) Sixteen M4 screw holes (Four on each top, bottom and both side plate)
Weight Approximately 170g
Operating Temperature
Minimum
Environmental Temperature: -5 deg. C
Maximum
Camera housing temperature (Top plate): 70 deg. C (See Operational temperature and Power Consumption)
Storage Temperature -30 ~ 65 deg. C
Vibration 20 Hz to 200 Hz to 20 Hz (5 min. /cycle), acceleration 10G, 3 directions 30 min. each
Shock Acceleration 38G, half amplitude 6 ms, 3 directions 3 times each
Standard Compliancy TBD
RoHS RoHS compliant
