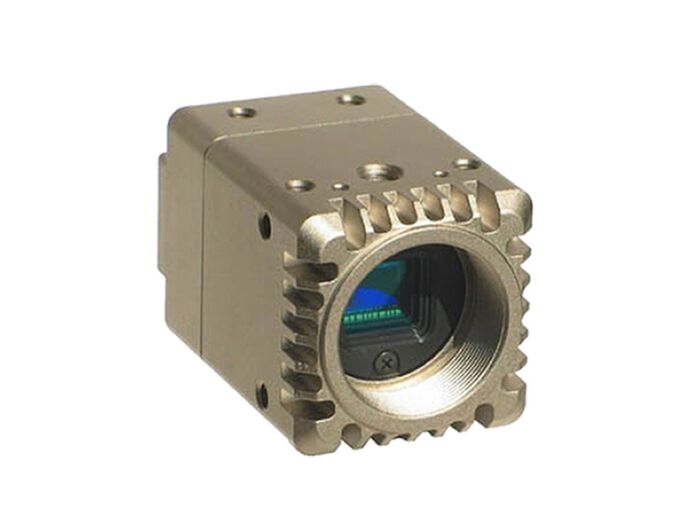

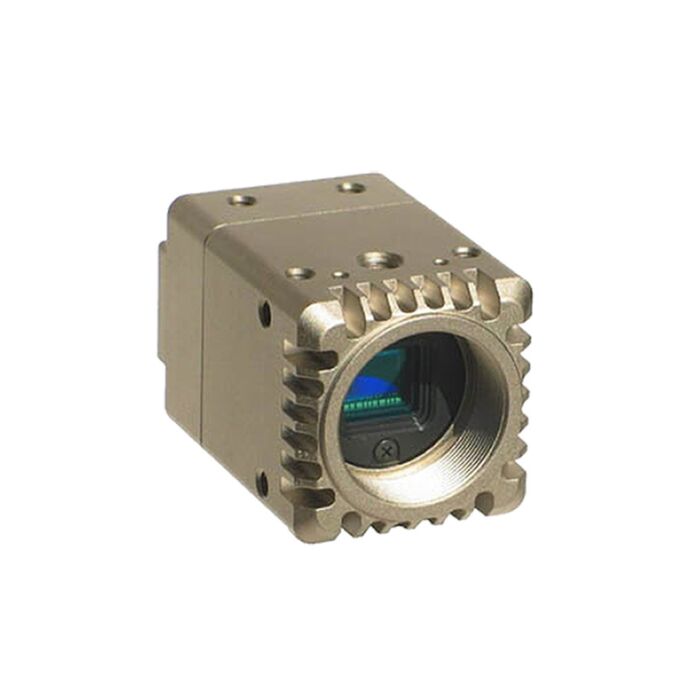

  • Sentech STC-GE152A | GigE Camera Image #1

Sentech STC-GE152A 1.3MP Monochrome GigE Camera

Quick Overview

1360 pixels x 1040 pixels, 1/2" PS IT CCD, 19 fps, Gigabit Ethernet Camera. Available in Monochrome (Black & White)

The STC-GE152A is part of Sentech's Standard GigE camera line. It features a 1/2" monochrome SXGA sensor, 19fps and communication over a 6 pin Hirose or Ethernet connector. The STC-GE152A boasts precision housing with accurate CCD alignment, a DC Auto Iris Lens Driver, a user-programmable Area of Interest (AOI) and a Gamma Table that can be imported. This camera meets all industry standards for GigE Vision® and GenICam™.


  • 1/2" CCD Image Sensor
  • SXGA (1.3 Megapixel), 19fps
  • User-Programmable Area of Interest (AOI)
  • Specifications
    Image Sensor 1/2” Interline SXGA monochrome progressive CCD: ICX205AL
    Total Picture Element 1434 (H) x 1050 (V)
    Active Picture Element SXGA: 1360 (H) x 1040 (V)
    Chip Size 7.6 (H) x 6.2 (V) mm
    Cell Size 4.65 (H) x 4.65 (V) µm
    Scanning System Progressive
    Vertical Frequency (Frame Rate) 19.25954 Hz at full resolution 0.31387 to 77.03817 Hz adjustable via the communication Max. frame rate depends on the AOI setting Max. frame rate of the camera(77.03817) is 200 vertical resolution AOI setting
    Horizontal Frequency 20.5688 kHz
    Pixel Frequency 36.818175 MHz
    Noise Level
    @ 8bit output
    ≤ 3 Digit (Gain 0 dB)
    @ 10bit output
    ≤ 12 Digit (Gain 0 dB)
    @ 12bit output
    ≤ 48 Digit (Gain 0 dB)
    Minimum Scene Illumination 0.41 Lux at F1.2, 19.25954 Hz
    Sync System Internal
    Video Output Digital 8, 10 or 12 bit Raw Data or RGB 8 bit
    Interface IEEE802.3 (1000BASE-T)
    Protocol GigE Vision® 1.2 and GenICam™ 2.0 compliant
    Exposure Time Preset continuous mode: 10 useconds to 16,777,216 useconds Preset trigger mode: 10 useconds to 16,777,216 useconds Pulse width mode: 10 useconds to Unlimited
    ALC Auto iris lens, electronic iris and AGC (ON / OFF)
    Gain 0 to 20.4 dB
    Gamma Gamma 1.0 (Factory default) or uploadable gamma table
    AOI Function Programmable AOI setting via the communication
    Smear Reduction Selectable ON / OFF via the communication
    Color Interpolation N/A
    White Balance Function N/A
    Trigger Mode Edge preset trigger, Pulse width trigger (unlimited long exposure)
    Communication UART communication through Ethernet port
    I/Os One opto-isolated input and two LVTTL outputs
    Auto IRIS lens control DC IRIS control input with video level target, peak/average and zone weight settings via the communication
    Input Voltage
    +10.8 to +26.4 Vdc
    < 5.0 W
    Dimensions 35 (W) x 35 (H) x 50.6 (D) mm excluding connectors
    Optical Filter No filter
    Optical Center Accuracy Positional accuracy in H and V directions: +/- 0.3 mm Rotational accuracy of H and V: +/- 1.5 deg.
    Material Aluminum (AC)
    Lens Mount C mount
    Connectors RJ45 connector Power/IO connector: HR10A-7R-6PB (Hirose) or equivalent DC IRIS lens connector: M1951 (EMUDEN) or equivalent
    Camera Mount Screws Two 1/4” Tripod screw holes: (One on each top and bottom plate), Twelve M4 screws holes: (Four on each top and bottom plate, two on each side plate)
    Weight Approximately 120g
    Operating Temperature
    Environmental temperature -5 deg. C
    Camera housing temperature (top plate) shall not exceed 65 deg.. C (This corresponds to an environmental temperature of approximately 35 deg. C)
    Storage Temperature Environmental temperature -30 ~ 65 deg. C
    Vibration 20 Hz to 200 Hz to 20 Hz (5 min. /cycle), acceleration 10G, 3 directions 30 min. each
    Shock Acceleration 38G, half amplitude 6 ms, 3 directions 3 times each
    Standard Compliancy EMS: EN61000-6-2, EMI: EN55011
    RoHS RoHS Compliant
