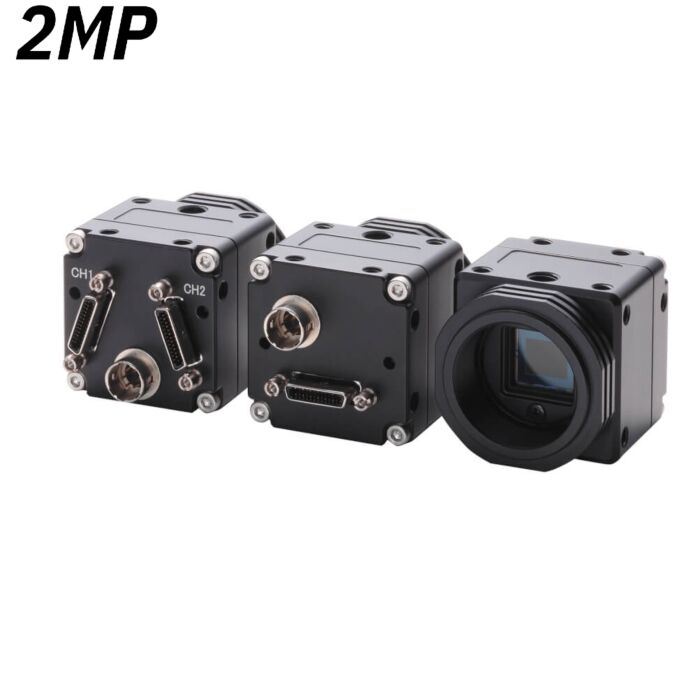

Sentech STC-CMC200PCL 2MP 2/3" CL Color Camera (CMOSIS)

Quick Overview

The STC-CMC200PCL is part of the mini high-speed, CMOSIS Camera Link Camera series. This color camera utilizes the famous CMOSIS 2 Megapixel sensor which outputs full resolution at 333 fps.
Overview

The STC-CMB200PCL also provides full triggering capabilities, a configurable AOI (Area of Interest) and comes in an ultra-small package of 40 (W) x 40 (H) x 40.5 (D) mm.



Features:



  • 2/3" CMOS Sensor, High-Speed Data Rate
  • Power Over Camera Link or Hirose Connector
  • High-Performance Machine Vision
  • Full Triggering Functionality
  •


    Applications:



  • Machine Vision
  • Industrial Imaging
  • Surveillance
  • Specifications

    Imaging



    Model No

    STC-CMC200PCL

    Imager

    2/3" 2MP Color CMOS (CMOSIS: CMV2000)

    Active Picture Element

    2048 (H) x 1088 (V)

    Chip Size

    11.264 (H) x 5.984 (V) mm

    Cell Size

    5.5 (H) x 5.5 (V) μm

      Function



    Scanning Method

    Full scanning, Variable ROI

    Pixel Frequency of the Sensor

    -

    - 1X2-1Y (8bit/10bit):

    10.625MHz (2,048 x 1,088), 21.250MHz (1,024 x 1,088), 42.500MHz ( 512 x 1,088)

    - 1X4-1Y (8bit/10bit):

    42.500MHz (2,048 x 1,088)

    - 1X8-1Y (8bit):

    21.250MHz (2,048 x 1,088), 42.500MHz (1,024 x 1,088)

    - 1X10-1Y (8bit):

    48.000MHz (2,040 x 1,088)

    Frame rate Vertical frequency of the Camera Link output

    -

    - 1X2-1Y (8bit/10bit):

    73.8fps (2,048 x 1,088),147.6fps (1,024 x 1,088),295.1fps (512 x 1,088)

    - 1X4-1Y (8bit/10bit):

    147.6fps (2,048 x 1,088), 295.1fps (1,024 x 1,088)

    - 1X8-1Y (8bit):

    295.1fps (2,048 x 1,088)

    - 1X8-1Y (8bit):

    333.3fps (2,040 x 1,088)

    Horizontal frequency of the Camera Link output

    -

    - 1X2-1Y (8bit/10bit):

    82kHz (2,048 x 1,088), 164kHz (1,024 x 1,088), 329kHz (512 x 1,088)

    - 1X4-1Y (8bit/10bit):

    164kHz (2,048 x 1,088), 329kHz (1,024 x 1,088)

    - 1X8-1Y (8bit):

    329kHz (2,048 x 1,088)

    - 1X10-1Y (8bit):

    372kHz (2,040 x 1,088)

    Pixel frequency o the Camera Link output

    -

    - 1X2-1Y (8bit/10bit):

    85MHz / 42.5MHz

    - 1X4-1Y (8bit/10bit):

    85MHz / 42.5MHz

    - 1X8-1Y (8bit):

    85MHz / 42.5MHz

    - 1X10-1Y (8bit):

    85MHz / 42.5MHz

    Noise level (8bit output)

    Less than 3 digit (Gain 0 dB)

    Dynamic Range

    60 bD

    Minimum Scene Illumination

    2 Lux @ f1.2

    Sync System

    Internal

    Video Output

    -

    - @ 8 Bit Output

    10TAP / FULL / MEDIUM / BASE configuration

    - @ 10 Bit Output

    MEDIUM / BASE configuration

    Shutter Speed

    45 seconds to 21u seconds (Variable at line), from 22 u seconds (Variable at usec)

    Digital Gain

    1x ~ 5x

    Gamma

    1.0

    Power

    -

    - Input Voltage

    12Vdc ± 10% (PoCL or Power/IO connector)

    - Consumption

    Less than 3.0 W

    Operating Mode

    Free Run, Edge Preset Trigger (V-reset) Pulse Width Trigger (V-reset)

    Communication

    RS232 via CameraLink® connector

      Mechanical



    Dimensions

    40 (W) x 40 (H) x 40.5 (D) mm (Excluding the connector)

    Optical Filter

    No IR cut filter

    Material

    Aluminum (AC)

    Lens Mount

    C Mount

    Interface Connector

    Camera Link connector: SDR connector x 2 Power/IO connector: HR10A-7R-6PB (Hirose) or equivalent

    Weight

    Approximately 90g

      Environmental



    Operating Temperature

    -5 ~ 40°C

    Storage Temperature

    -30 ~ 65°C

    Vibration

    20 Hz ~ 200 Hz ~ 20 Hz (5 min. /cycle), Acceleration 10G, XYZ 3 directions 30 minutes each

    Standard Compliancy

    EMS: EN61000-6-2, EMI: EN55022 (Class B)

    RoHS

    RoHS Compliant
