Omron STC-CMC120APCL (STCCMC120APCL) 12MP CL Mono Camera (PoCL)

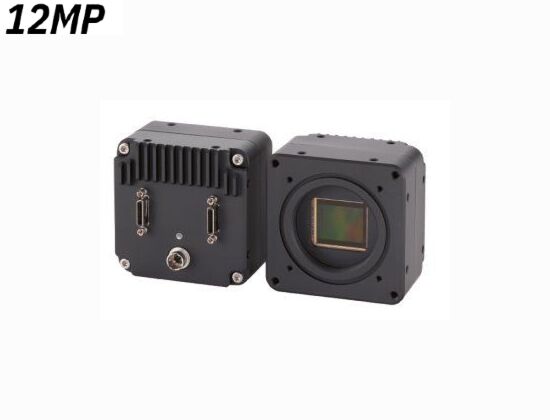

The STC-CMC120APCL monochrome camera, featuring Power Over Camera Link, is part of the high-speed, CMOS Camera Link Camera series from Omron (CMOS Sensor: CMOSIS CMV12000)
SKU
STC-CMC120APCL

This monochrome camera uses the C-MOSIS 12 Megapixel sensor which outputs full resolution at 62 fps. STC-CMC120APCL also provides full triggering capabilities, a user-configurable AOI (Area of Interest) and comes in a small package of 68 (W) x 68 (H) x 40 (D) mm.



Features:

  • 1.76" CMOSIS Sensor
  • 12MP Resolution
  • 62fps
  • Power Over Camera Link or Hirose Connector
  •

    Applications:

  • Machine Vision
  • Security
  • Surveillance
  • Industrial Inspection
  • Industrial Imaging
  •  Imaging



    Model No

    STC-CMC120APCL

    Image Sensor

    1.76 “ Type 12Meg color progressive CMOS (CMOSIS: CMV12000)

    Shutter Type

    Global Shutter

    Active Picture Element

    4090 (H) x 3072 (V): 10TAP 4096 (H) x 3072 (V): 8TAP,4TAP,2TAP 4092 (H) x 3072 (V): 3TAP

    Chip Size

    22.5 × 16.9 mm

    Cell Size

    5.5 (H) x 5.5 (V) μm

      Function



    Scanning System

    Full scanning, Variable ROI

    Scanning Method

    Full scanning, Variable AOI

    Frame rate Vertical frequency of the Camera Link output

    62.3Hz(8bit 10TAP), 51.8Hz (8bit 8TAP), 25.9Hz (8/10/12bit 4TAP), 19.4Hz (8bit 3TAP), 12.9Hz (8/10/12bit 2TAP)

    Pixel Frequency

    10TAP, 8TAP,4TAP,3TAP,2TAP: 85MHz or 42.5MHz (Selectable)

    Noise level (8bit output)

    120

    Minimum Scene Illumination

    TBD Lux @ F2.25 (10TAP)

    Sync System

    Internal

    Video Output

    8bit: 10TAP, Full, Medium, Base Configuration 10bit: Base Medium Configuration 12bit: Base Configuration

    Shutter Speed

    10, 8, 4, 2TAP:41[us] to TBD [s] (Variable at Line unit, Pulse Width Trigger),42[us] to TBD [s] (Variable us unit) 3TAP 42[us] to TBD [s] (Variable at Line unit, Pulse Width Trigger),43[us] to TBD [s] (Variable us unit )

    Digital Gain

    1 to x5

    Gamma

    1.0

    Trigger Mode

    Edge Preset Trigger(V Reset), Pulse Width Trigger (V Reset)

    Power

    -

    - Input Voltage

    12 Vdc ± 10%

    - Consumption

    10TAP, Full Configuration: Less than 7.0 W Base Configuration: Less than 5.0W

    Communication

    RS232 via CameraLink® connector

      Mechanical



    Dimensions

    68 (W) x 68 (H) x 40 (D) mm (Excluding the connector)

    Optical Filter

    No IR cut filter

    Material

    Aluminum alloy

    Lens Mount

    M42 mount (F mount with adapter) FB = 10.0mm(in Air)

    Interface Connector

    Camera Link connector: SDR connector x 2 Power/IO connector: HR10A-7R-6PB (Hirose) or equivalent

    Weight

    Approx. 305g

      Environmental



    Operating Temperature

    -5 ~ 40°C

    Storage Temperature

    -30 - 70°C

    Vibration

    20Hz to 200Hz to 20Hz (5min./cycle), acceleration 10G, XYZ 3 directions 30 min. each)

    Shock

    Acceleration 38G, half amplitude 6ms, XYZ 3 directions 3 times each

    Standard Compliancy

    EMS: EN61000-6-2, EMI: EN55022 (Class B)

    RoHS

    RoHS Compliant
