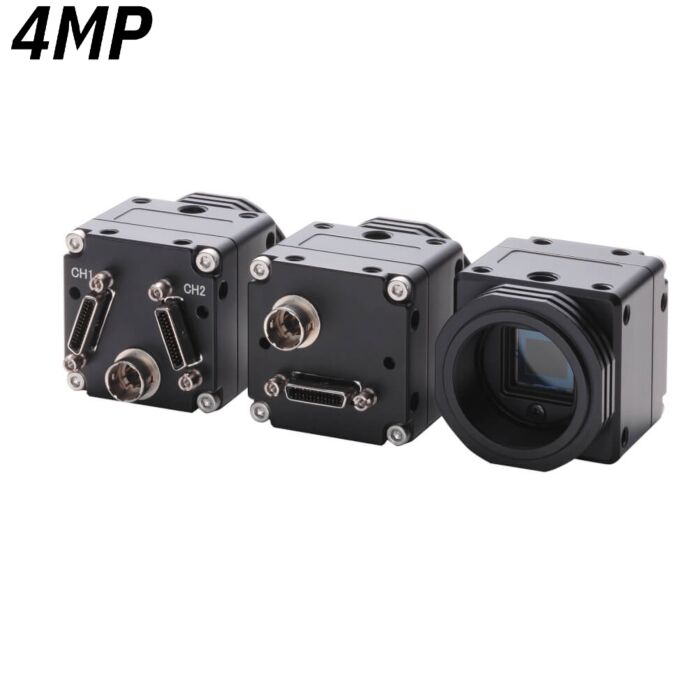

Omron STC-CMB401PCL (STCCMB401PCL) 4MP Mini CL Camera

The STC-CMB401PCL is part of the new mini high-speed, CMOSIS Camera Link Camera series. This monochrome camera utilize the famous CMOSIS 4 Megapixel sensor which outputs full resolution at 180 fps (CMOS Sensor: CMOSIS CMV4000)
SKU
STC-CMB401PCL

Omron is proud to introduce the brand new Mini C-MOSIS Camera Link series. These cameras feature global shutter, which will allow them to safely record moving objects. The 2M & 4M models are available in Near IR versions. These models are the second generation C-MOSIS Camera Link cameras, and have a smaller size, lower power consumption, and are a lower cost.

Features:

  • 2048(H) x 2048(V) 180fps
  • 5.5μm x 5.5μm 1” Sensor
  • Global Shutter
  • PoCL / External Power Supply
  • 40 x 40 x 40.5 mm (excluding connector)

Applications:
  • Traffic Camera
  • Security
  • Education
  • In Car Camera
  • Meetings
  • Industrial
Image Sensor Type 1" 4M CMOS (CMOSIS CMV4000)
Shutter Type Global Shutter
Effective Pixels 2048 (H) x 2048 (V)
Cell Size 5.5 (H) x 5.5 (V) μm
Frame Rate 180fps
Noise Levels 3 digits or less (8-bit, Gain 0 dB)
Video Format 8/10 bit Raw Data, RGB 8 bit (Color)
8/10 bit Raw Data (Monochrome, IR)
Interface CameraLink Base/Medium/Full/10Tap
Exposure Time 25μsec ~ 45 sec
ALC AGC ON/OFF and Electronic Iris
Digital Gain 1 ~ 5 dB
Gamma 1.0 (fixed)
White Balance Auto / Manual / Push to Set (Color Models Only)
Operating Mode Edge Preset Trigger / Pulse Preset Trigger
Communication RS232 communication (via Camera Link connector)
Power Consumption less than 3.5W
Dimensions 40 (W) x 40 (H) x 40.5 (D) mm (excluding connector)
Optical Filter N/A
Lens Mount C Mount
External Connector Miniature Connector (SDR)
Power & Signal Connector HR10A-7R-6PB (Hirose) or equivalent
Camera Mounting 1/4" tripod mounting screw holes (1 on bottom surface)
M4 Mounting Screws 4 mounting screws on the top and bottom of the camera
Weight 102g
Compliance RoHS Compliant
