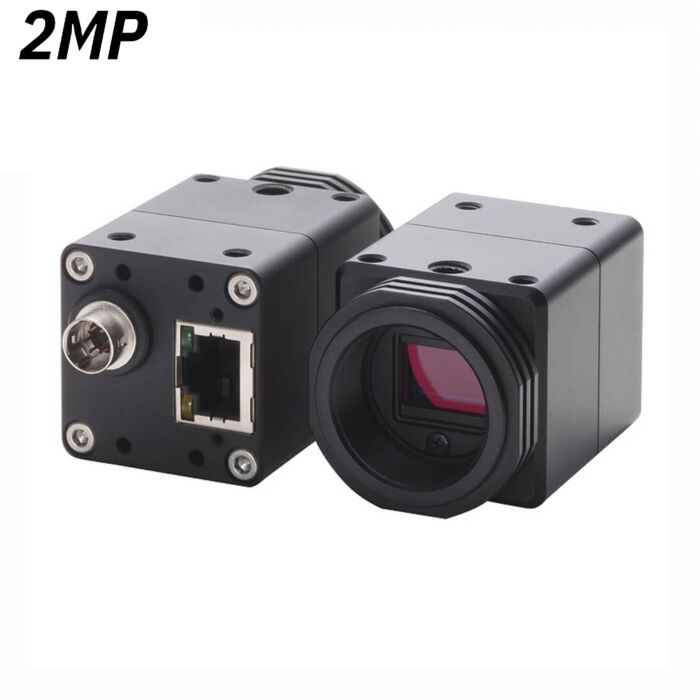

Omron STC-CMB2MPOE 2MP GigE, Monochrome Camera With CMOS Sensor: CMV2000 (Discontinued)
SKU
STC-CMB2MPOE
Quick Overview
*Product is Discontinued, Call For Replacement Options
The Omron/Sentech STC-CMB2MPOE is part of the GigE Vision CMOSIS Series and uses a 2/3” CMOSIS sensor that outputs a magnificent 2-megapixel resolution along with 50 FPS. The camera comes in monochrome and color versions. (CMOS Sensor: CMV2000)
Recently Omron/Sentech added 2 megapixel high speed models to our GigE Vision product line. With a high speed 50fps (2M), productivity can be increased with ease. Both cameras are designed for Power over Ethernet and do not require a separate power supply.
Features:
Applications:
| Image Sensor | Type 2/3" 2M CMOS (CMOSIS CMV2000) |
| Shutter Type | Global |
| Effective Pixels | 2048 (H) x 1088 (V) |
| Pixel Cell Size | 5.5 (H) x 5.5 (V) µm |
| Frame Rate | 50 fps (full image size) 25fps @ 10-bit output 1 ～ 780 fps (with AOI settings) Max frame rate of 780fps with V. size of 32 pixels |
| Noise Level | Less than 3 digits at 8-bit output (Gain=0dB) - Less than 12 digits at 10-bit output (Gain=0dB) |
| Minimum Scene Illumination | TBD Lux at F1.2 (2M Color) 0.12 Lux at F1.2 (2M Mono) 0.09 Lux at F1.2 (2M NIR) |
| Video Format | 8/10 bit Raw Data, RGB 8 bit (Color) 8/10 bit Raw Data (Mono, IR) |
| Interface | IEEE802.3 (1000BASE-T) |
| Protocol | GigE Vision® 1.2 & GenICam™ 2.0 compliant |
| Exposure Time | 25 μsec ～ 2,000 msec |
| ALC | Electronic Iris and AGC on and off |
| Digital Gain | 1 - 3x |
| Gamma | 1.0 or up to loadable Gamma table |
| Color Interpolation | Included (Color Model Only) |
| White Balance | Auto, Manual, & Push to Set White (Color Model Only) |
| Operating Modes | Edge Preset Trigger & Pulse Width Trigger |
| Communication | UART through Ethernet port |
| Input/Output | 1 input (opt isolated), 2 outputs (3.3V LVTTL) |
| Input Voltage | +10.8 ～ +26.4 Vdc |
| Power Consumption | less than 3.6W |
| Dimensions | 35 (W) x 35 (H) x 55.9 (D) mm (excluding connectors) |
| Optical Filter | Not Included |
| Lens Mount | C Mount |
| Ethernet Connector | RJ45 |
| Power & I/O | HR10A-7R-6PB (or equivalent) |
| 1/4" Mount Holes | 1/4" Camera mount holes on top and bottom |
| M4 Mounting Holes | 4 each on the top and bottom |
| Weight | Approx. 120g |
| Compliance | RoHS Compliant |
