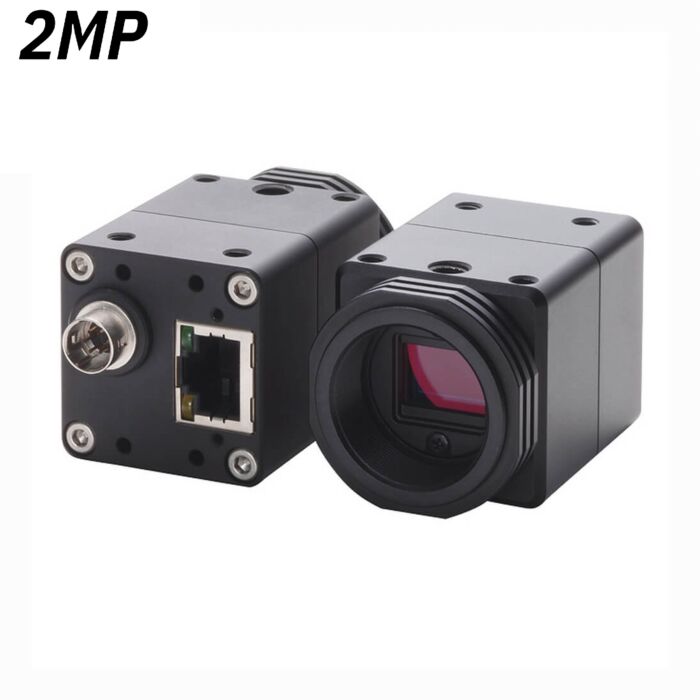

  • Sentech STC-CMB2MPOE-NIR | GigE Cameras | Near IR Cameras Image #1

Sentech STC-CMB2MPOE-NIR 2MP GigE Near IR, Monochrome Camera (CMOS)

Quick Overview

The STC-CMB2MPOE is part of Sentech’s GigE Vision CMOSIS Series and uses a 2/3” CMOSIS sensor that outputs a magnificent 2-megapixel resolution along with a blazingly fast 50 FPS.
Overview

The camera features Power over Ethernet or 6 pin Hirose, Full AOI Functionality, Global Shutter and much more. The STC-CMB2MPOE brings CMOSIS versatility to the reliability of the GigE Vision format and is ready to be used in your application.



Features:



  • 2-megapixel resolutions
  • CMOSIS Sensor
  • Global Shutter
  • High Quantum Efficiency
  •


    Applications:



  • Medical Imaging
  • Industrial Imaging
  • Machine Vision
  • Industrial Inspection
  • Security
  • Surveillance
  • Specifications

    Function



    Scanning System

    Full scanning, Variable ROI

    Vertical Frequency (Frame Rate)

    50 Hz at full resolution (25Hz on 10bit for ether net bandwidth limitation), 1.00000 to 780 Hz adjustable via the communication, (Frame rate depends on the AOI setting), Maximum frame rate (780 Hz) is when vertical resolution AOI setting is 32.

    Horizontal Frequency

    58.1 kHz

    Pixel Frequency

    120 MHz

    Noise Level

    -

    - @ 8 Bit Output

    <= 2.5 Digit (Gain 0 dB)

    - @ 10 Bit Output

    <= 15 Digit (Gain 0 dB)

    Minimum Scene Illumination

    Less than 1 Lux @ F1.2, 50 Hz

    - Near IR (-NIR)

    Less than 1 Lux @ F1.2, 50 Hz

    Sync System

    Internal

    Video Output Format

    Digital 8, 10 bit Raw Data, (Default:8bit Raw)

    Interface

    IEEE802.3 (1000BASE-T)

    Protocol

    GigE Vision® 1.2 and GenICam™ 2.0 Compliant

    Exposure Time

    Preset continuous mode: 25 microseconds to 2000 milliseconds, Preset trigger mode:25 microseconds to 2000 milliseconds, Pulse width mode: 25 microseconds to 2000 milliseconds

    ALC (Automatic Light Compensation)

    Automatic Exposure (AE) and Automatic Gain Control (AGC) (ON/OFF) (adjustable via the communication), (Default: AE OFF, AGC ON)

    Gain

    x1 to x3 (Default: x1)

    Gamma

    Gamma 1.0 (Factory default) or uploadable gamma table (Default:1)

    AOI Function

    Variable AOI setting via the communication

    Color Interpolation

    N/A

    White Balance

    N/A

    Operating Mode

    Edge preset trigger, Pulse width trigger (Default:OFF)

    Communication

    UART Communication through Ethernet port

    I/Os

    One opt-isolated input and two open collector outputs(+3.3V)

      Mechanical



    Power

    -

    - Input Voltage

    +10.8 ~ +26.4 Vdc

    - Consumption

    Less than 3.6 W

    Dimensions

    35 (W) x 35 (H) x 55.9 (D) mm excluding connectors

    Optical Filter

    No Filter

    Optical Center Accuracy

    Positional accuracy in H and V directions:: ±0.3 mm, Rotational accuracy of H and V: ±1.0 deg

    Material

    Aluminum (AC)

    Lens Mount

    C Mount

    Connectors

    RJ45 connector, Power- I/O connector: HR10A-10R-6PB (Hirose) or equivalent

    Camera Mount Screws

    Two 1/4'' Tripod screw holes (one each on top and bottom plate) Twelve M4 screws holes (four each on top and bottom plate, two each on both side plate)

    Weight

    Approx. 120g

      Environmental



    Operating Temperature

    -

    - Minimum

    Environmental Temperature: -5°C

    - Maximum

    Camera housing temperature (top plate) shall not exceed 65⁰C, (This corresponds to an environmental temperature of approximately 35⁰C)

    Storage Temperature

    Environmental Temperature: -30 to +65 ºC, Environmental Humidity: 0 to 85%

    Vibration

    20Hz ~ 200Hz ~ 20Hz (5min./cycle), acceleration 10G, 3 directions 30 min. each

    Shock

    Acceleration 38G, half amplitude 6 ms, 3 directions 3 times each

    Standard Compliancy

    EMS: EN61000-6-2, EMI: EN55011

    RoHS

    RoHS Compliant
