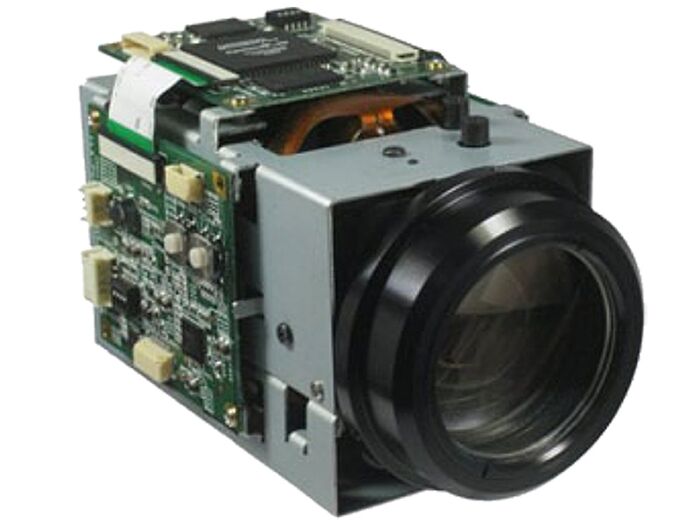

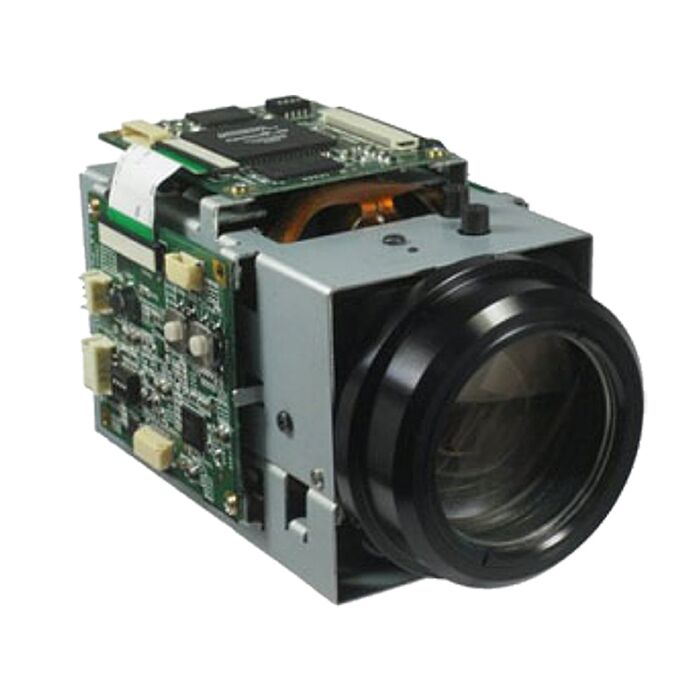

Omron STC-AF133B 1/3" 18x Zoom HD Block Camera

1280 pixels x 720p, 1/3" CCD, 18x zoom, 250mm close-up lens, High Definition Block Camera. Available in Color Video Output: Mini-HDMI connector Min Illumination: 13 Lux at F1.6 (at zoom out position) at 50% IRE, AGC ON and 1/60 second shutter speed with IR cut filter (CMOS Sensor: Sony ICX445AQA)
SKU
Sentech STC-AF133B

The STC-AF133B HD Auto Focus is the newest addition to Sentech’s Auto Focus Block camera line. It is our first High-Definition auto focus block camera, ideal for low vision systems, industrial and medical applications. This CCD based camera outputs a true HD 720p resolution, 16 x 9 image and has complete “on-camera” low vision processing.

Features:

  • 1/3" Image Sensor
  • 720p, High Definition Output
  • Does Not Include Close-up Lens

  • Applications:

  • Low Vision Systems
  • Industrial
  • Medical Applications
  • Inspection
  • Factory Automation
  • Resolution 720p
    Image Sensor ⅓” Interline SXGA CCD: ICX445AQA
    Effective Picture Element 1296 (H) x 966 (V)
    Active Picture Element 1280 (H) x 720 (V)
    Chip Size (um) 6.26 (H) x 5.01 (V) mm
    Cell Size (um) 3.75 (H) x 3.75 (V) μm
    Minimum Scene Illumination 13 Lux at F1.6 (at zoom out position) at 50% IRE, AGC ON and 1/60 second shutter speed with IR cut filter
    Sync System Internal
    Video Output DVI 1.0 Conformity RGB, 1280 (H) x 720 (V), 60 Hz / 50 Hz
    ALC Can be configured via the UART communication With optical iris, auto electronic shutter and AGC
    Shutter Speed

    Adjustable shutter speed via the UART communication
    Extended - Available up to 0.5 seconds
    High Speed - Up to 1/100,000 seconds at 60 Hz or up to 1/83,333 seconds at 50Hz

    Gain

    AGC or Fixed Gain selectable via the UART communication
    AGC - 0 to 18.3 dB
    Fixed Gain -0 to 18.3 dB

    Digital Gain

    Up to 5.9866 dB

    Gamma 1.0, 0.9, 0.8, 0.7, 0.6, 0.5, 0.45, 0.3 or manual gamma Selectable gamma via the UART communication
    WhiteBalance Auto white balance / manual white balance / push-to-set white balance White balance selectable via the UART communication
    Mirror Image Horizontal and vertical flip are selectable via UART communication
    Picture Modes 3 picture modes: Picture, Bright and Pseudo Color (includes 30 pseudo colors) Picture mode selectable via the UART communication
    Line Generator Both horizontal and vertical with all available colors Thickness adjustable via the UART communication
    Shadow Mask Generator Horizontal and vertical w/ shading level adjustment via the UART communication
    Motion Detection ON/OFF selectable via the UART communication
    Digital Zoom x1 to x 128 digital zoom Digital pan and tilt is available on still images
    Communication UART communication via C304 (S4B-ZR-SM4A, JST) connector
    Freeze Image Live or freeze image is selectable via UART communication Digital pan and tilt is available on still images
    Character Generator Built-in character generation function via the UART communication
    Optical Zoom Manual zoom position control via UART communication
    Focus Auto focus / manual focus / push set focus Focus mode selectable via the UART communication
    Iris Auto iris / manual iris / push-set iris Selectable iris control mode via the UART communication
    Input Voltage 8Vdc to 15Vdc (Typically: 12Vdc)
    Consumption < 5.2W
    Dimensions 64 (W) x 60 (H) x 89.3 (D) mm
    Auto Focus Lens 18x auto focus zoom lens (Tamron) Optical zoom range: from 4.7 mm to 84.6 mm Aperture: F1.6 at f = 4.7 mm to F2.8 at f = 84.6 mm
    Close-up Lens Does not include close-up lens
    Optical Filter IR cut filter on IR cut filter ON/OFF selectable via the UART communication
    Interface Connector

    Mini-HDMI connector
    Video Output - CN303, S2B-ZR-SM4A (JST)
    External Control - CN305, SM06B-SRSS (JST) 6-pin connector header for connectivity of up to nine external switches
    Communication - CN304, S4B-ZR-SM4A (JST)

    Weight Approximately 227 g
    Operational 0 to 45 C
    Storage -30 to 65 C
