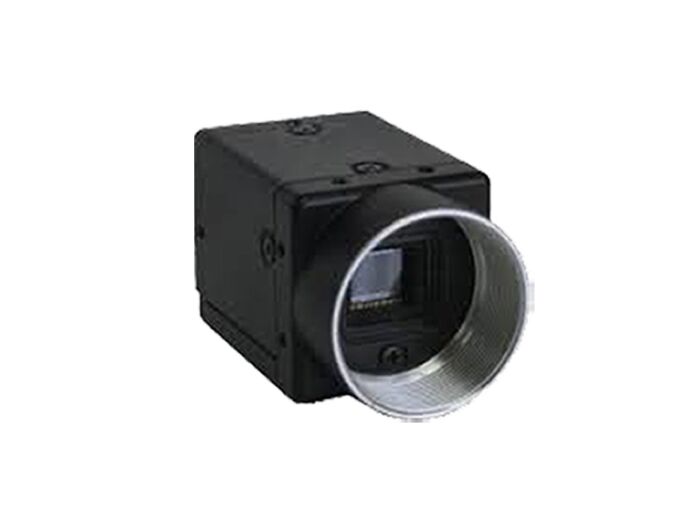

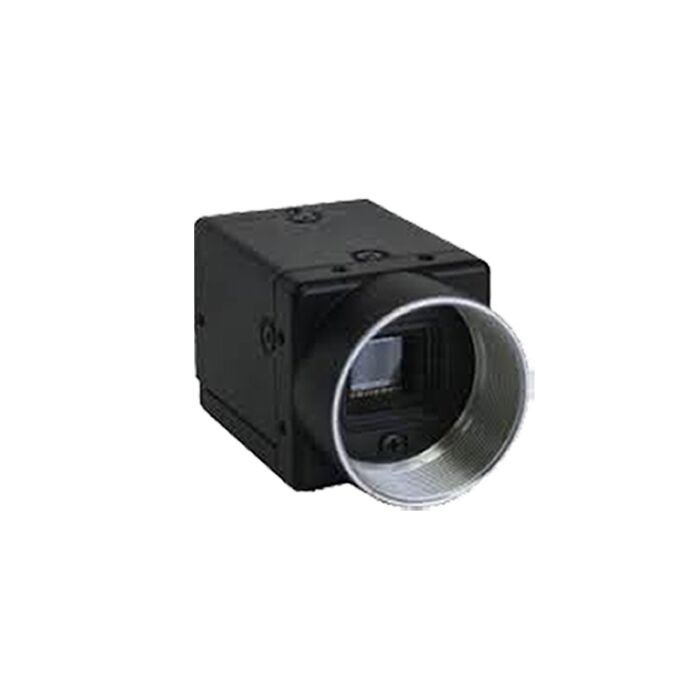

Omron STC-A202A Machine Vision Camera Progressive Scan Cased Cameras
The STC-A202A is a 1/1.8" monochrome progressive scan cube camera with 1620 x 1220 resolution. This series features a UXGA sensor with a scan rate of 15fps, analog output and variable integration shutter trigger.
SKU
STC-A202A-Sentech EOL
The STC-A202A is a 1/1.8" monochrome progressive scan cube camera with 1620 x 1220 resolution. This series features a UXGA sensor with a scan rate of 15fps, analog output and variable integration shutter trigger.
Features:
Applications:
| Image Sensor | 1/1.8" interline UXGA monochrome progressive CCD: ICX274AL |
| Total picture elements | 1688 (H) x 1248 (V) |
| Effective picture elements | 1628 (H) x 1236 (V) UXGA: 1620 (H) x 1220 (V) |
| Chip size | 8.5 (H) x 6.8 (V) |
| Cell size | 4.4 (H) x 4.4 (V) |
| Scanning system | Progressive |
| Scanning method | Full scanning, Partial full scanning, 1/2 partial scanning, 1/4 partial scanning, Variable partial scanning, Binning, Binning partial scanning, Binning 1/2 partial scanning, Binning 1/4 partial scanning, Binning variable partial scanning |
| Vertical frequency (Frame rate) | 15.3164 Hz |
| Horizontal frequency | 119.176 kHz |
| Pixel frequency | 36.8181 MHz |
| S/N ratio (standard deviation) | 56 dB (GAIN 0 dB) |
| Minimum scene illumination | 1 Lux at F1.4 |
| Sync. System | Internal / External |
| Video output | 1.0 Vp-p / 75Ω, DC Coupling (0V) |
| Tap | - |
| Shutter Speed |
Dip Switch: OFF, 1/200, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/8,000, 1/20,000 second |
| Gain | 0 to 27 dB |
| Gamma | 1.0 |
| Input voltage | DC12V ± 10% |
| Consumption | Less than 2.5 W |
| Trigger mode | Edge preset trigger (V-reset, Non-reset) Pulse width trigger (V-reset, Non-reset) |
| Communication | RS232 via Camera Link connector |
| Dimensions | 28 (W) x 28 (H) x 46.3 (D) mm including lens mount and the connector |
| Optical filter | No IR cut filter |
| Optical center accuracy | Position accuracy in H and V directions: +/- 0.31mm Rotation accuracy of H and V:+/- 2.1 deg. |
| Tripod | Tripod can be attached to 4 plates (4 screws on the bottom plate, 3 screws on the other 3 plates) |
| Lens mount | C Mount |
| Tripod | Tripod can be attached to 4 plates (4 screws on the bottom plate, 3 screws on the other 3 plates) |
| Operational Temp | Temperature: -5 to 50 deg. C, RH: 0 to 85% (No condensation) |
| Storage Temp | Temperature: -30 to 65 deg. C, RH: 0 to 90% (No condensation) |
| Vibration | 20Hz to 200Hz to 20Hz (5min./cycle), acceleration 10G, 3 directions 30 min. each |
| Shock | Acceleration 70G, half amplitude 6ms, 3 directions 3times each |
| Standard compliancy | EMS: EN61000-6-2, EMI: EN55011 (Class B) |
| RoHS | RoHS compliance |
