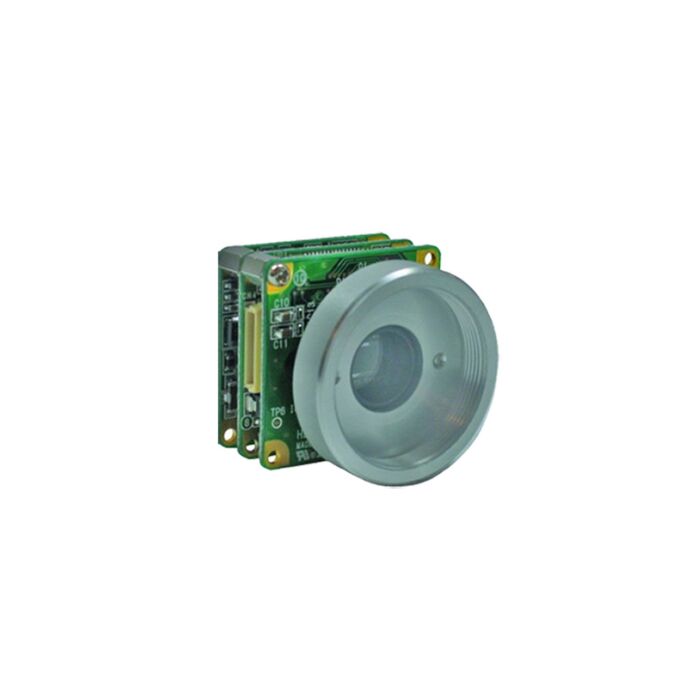

Omron STC-83 Machine Vision Camera Progressive Scan Board Cameras

1024 x 779 Effective Pixels, 1/3" Interline CCD, CS Mount.
SKU
STC-83

The STC-33 is a full featured, low cost, VGA progressive scan machine vision board camera with a 1/3" monochrome CCD. The STC-33 features a full frame 60fps (at double speed) VGA output, partial scanning, triggering and reset capabilities.

Features:

  • 60fps (at double speed)
  • VGA Output
  • Partial Scanning
  • Triggering
  • Reset Capabilities

  • Applications:

  • Machine Vision
  • Factory Automation
  • Industrial
  • Inspection
  • Image Sensor 1/3" Monochrome IT CCD
    Signal Format Progressive
    Effective Picture Element 659 (H) v 494 (V)
    Active Picture Element 648 (H) x 494 (V)
    Chip Size 5.79 (H) x 4.89 (V) mm
    Cell Size 7.4 (H) x 7.4 (V) µm
    Horizontal Drive Frequency 12.2727255MHz (Normal), 24.545451MHz (Double)
    Horizontal Frequency 15.734kHz (Normal), 31.468kHz (Double)
    Vertical Frequency 29.97Hz (Normal), 59.94Hz (Double)
    Minimum Illumination 0.8 Lux @ F1.2
    Resolution 486TVL (Horizontal)
    494TVL (Vertical)
    Sync System Internal/External (HD/VD) Automatically
    Scanning System Progressive
    Scanning Method Full Scan, 1/2 Partial Scan, 1/4 Partial Scan
    S/N Ratio 50dB (Gain 0dB)
    Gamma 1
    Lens Mount CS Mount
    Gain AGC/Manual Gain
    Electronic Shutter 1/30 ~ 1/16,000 Second (10 Steps)
    1/60 ~ 1/32,000 Second (10 Steps at Double Speed)
    Trigger Shutter Pulse Width Trigger (3 ~ 1/100,000 Second)
    Edge Preset Trigger (10 Steps)
    Video Output VS 1Vp-p 75W
    Power Supply 12V DC
    Power Consumption 110mA
    Operation Temperature  -10°C ~ 45°C (14°F ~ 113°F)
    Storage Temperature  -30°C ~ 60 °C (-22°F ~ 140°F)
    Dimensions 30 (W) x 30 (H) x 32 (D) mm (1.2" x 1.2" x 1.28")
    Weight 27g (.95 oz.)
