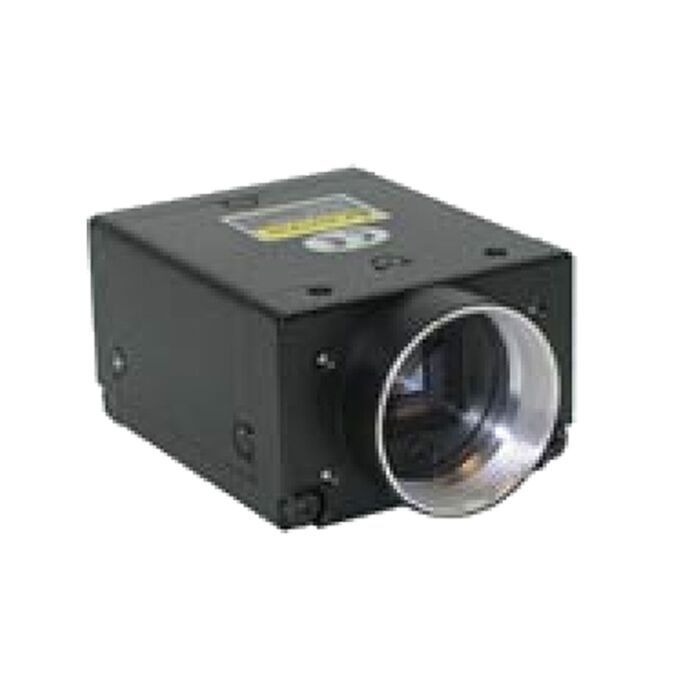

Omron STC-720 Machine Vision Camera 2:1 Interlace Cased Cameras

The STC-720 is a full-featured 2/3 " Monochrome area scan CCD camera featuring random trigger functionaltiy, field/frame integration, internal/external sync, and much more. Available in EIA and CCIR formats.
SKU
STC-720
The STC-720 is a full-featured 2/3 " Monochrome area scan CCD camera featuring random trigger functionaltiy, field/frame integration, internal/external sync, and much more. Available in EIA and CCIR formats.
 Specifications :.
 Image Sensor: STC-720 (EIA): 1/2" Monochrome IT CCD
STC-725 (CCIR): 1/2" Monochrome IT CCD
 Formats: EIA & CCIR
 Effective Picture Element: EIA: 768 (H) x 494 (V)
CCIR: 752 (H) x 582 (V)
 Scanning System: 2:1 Interlace/Non-Interlace
 Horizontal Resolution: 570 TV Lines
 Horizontal Frequency: 15.734 kHZ
 Vertical Frequency: 59.94 Hz
 Chip Size: 7.95 (H) x 6.45 (V)
 Scanning Area: 6.45 (H) x 4.84 (V) mm
 Integration Mode: Frame of Field
 Sync System: Internal or External (HD/VD)
 Minimum Illumination: 0.12 Lux @ F1.2, 50 IRE (AGC On)
 S/N Ratio: >56dB (AGC Off)
 Gamma: 0.45 or 1 Selectable
 Lens Mount : C-Mount
 Gain: AGC (0-20dB), /Manual (0-20dB), Fixed (13dB)
 External Trigger Type: Switch Setting Random Shutter Trigger
Variable Integration Random Trigger Single or Dual Pulse
 External Trigger Mode: Non-Reset/Reset Mode
 Reset/Restart: Integration time controlled by external VD (requires external HD/VD)
 WEN: Active high, H level = 3~5V, L level = 0~0.6V
 Electronic Shutter: 9 Steps to 1/10,000 Second
 Power Supply: 12V DC
 Operating Temperature:  -10°C ~ 45°C (14°F ~ 113°F)
 Storage Temperature:  -30°C ~ 60 °C (-22°F ~ 140°F)
 Connectors: 12 Pin Hirose & BNC
 Weight: 97g (3.42 oz.)
 Dimensions: 44 (W) x 29 (H) x 65 (D) mm (1.76" x 1.16 " x 2.4")
 Vibration Resistance: 7G (20Hz-220Hz)
