Omron STC-160 Series Machine Vision Camera 2:1 Interlace Board Cameras

SKU
STC-160

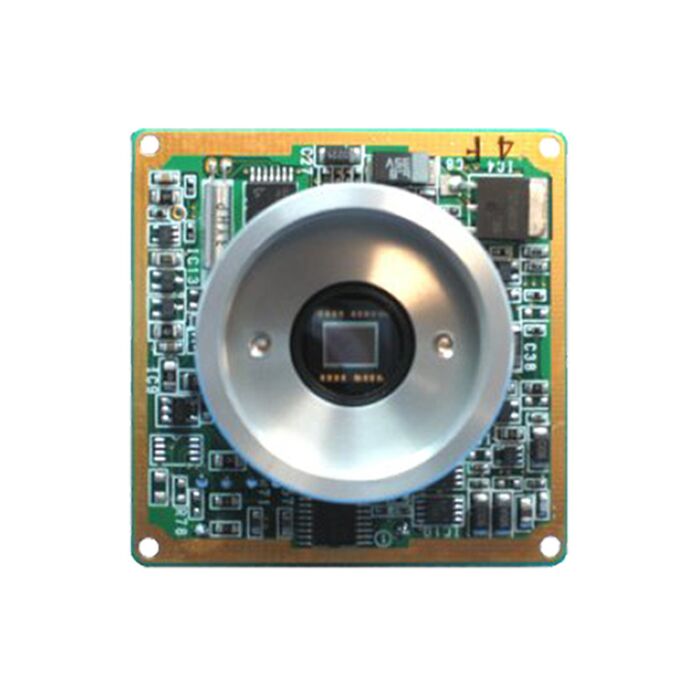

The STC-160 series is a 1/3" high resolution CCD machine vision camera in a single board. Small in size, this camera series offers many features and functions not found on most boar level cameras. Like most Sentech cameras, the STC-160 series comes in a board level and cased version. Available in EIA and CCIR formats and seven lens options.

 Specifications
 Image Sensor: STC-160 (EIA): 1/3" Monochrome IT CCD
STC-165 (CCIR): 1/3" Monochrome IT CCD
 Formats: EIA & CCIR
 Effective Picture Element: EIA: 768 (H) x 494 (V)
CCIR: 752 (H) x 582 (V)
 Scanning System: 2:1 Interlace
 Horizontal Resolution: 570 TV Lines
 Horizontal Frequency: 15.734 kHZ
 Vertical Frequency: 59.94 Hz
 Sync System: Internal or External (HD/VD) Auto Detect
 Minimum Illumination: 0.07 Lux @ F1.2, 50 IRE (AGC On)
 S/N Ratio: >56dB (AGC Off)
 Gamma: 0.45 or 1 Selectable
 White Balance: Auto or Manual
 Gain: On/Off Selectable
 Electronic Iris: 1/60 (1/50) to 1/100,000 Second
 Electronic Shutter: 1/60 to 1/100,000 Second
 Back Light: On/Off Selectable
 Video Out: VS 1.0Vp-p, 75W
 Power Supply: 12V DC
 Power Consumption: 135mA
 Operating Temperature:  -10°C ~ 45°C (14°F ~ 113°F)
 Storage Temperature:  -30°C ~ 60 °C (-22°F ~ 140°F)
 Weight: 20g (.70 oz.)
 Dimensions: 45 (W) x 45 (H) x variable (D) mm (1.8" x 1.8" x variable)
