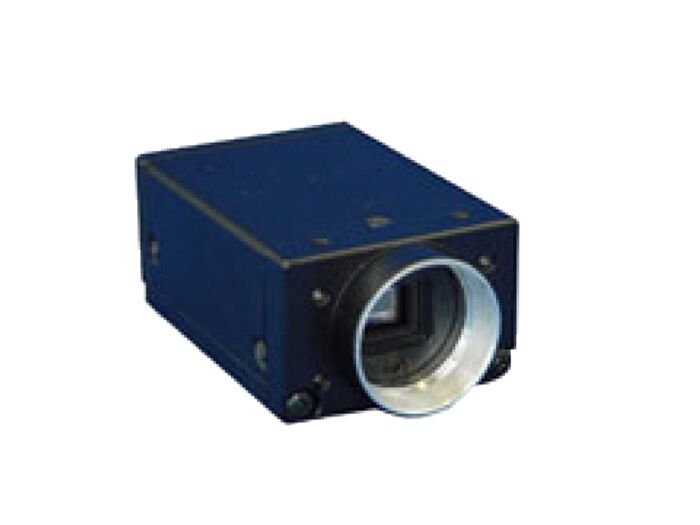

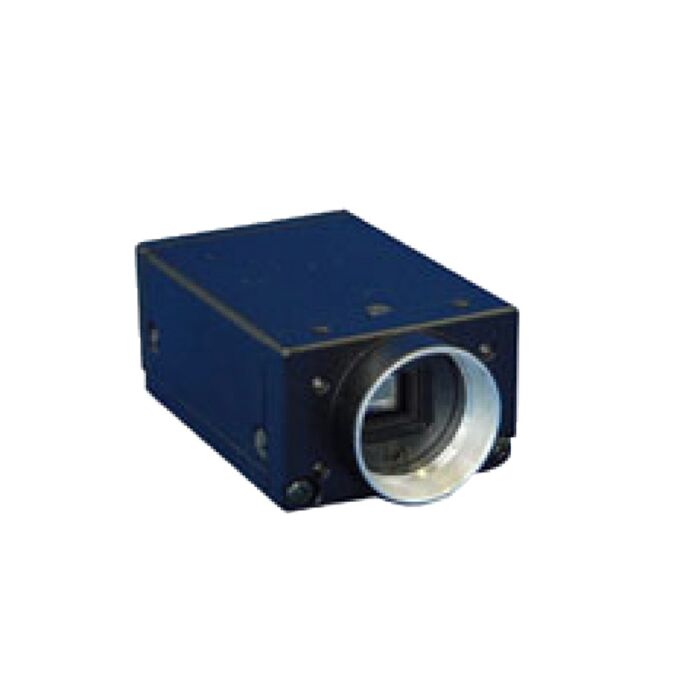

Omron STC-CLC1140 Machine Vision Camera Progressive Scan Cased Cameras

648 x 488 Effective Pixels, 1/3" IT CCD with RGB Primary Color Filter, C-Mount.
SKU
STC-CLC1140

The STC-CLC1140 is a Quad Speed VGA digital Camera Link® camera with 1/3" CCD and RGB Primary Color Filter, featuring 120fps, partial scanning, and full trigger functionality.

Features:

  • 1/3” Interline CCD
  • Digital 10bit Camera Link Output
  • Progressive Scan
  • VGA Signal Format
  • Available in B/W & Color
  • 120fps

  • Applications:

  • Security
  • Inspection
  • Industrial
  • Machine Vision
  • Image Sensor 1/3" IT CCD with RGB Primary Color Filter
    Signal Format Progressive
    Effective Picture Element 648 (H) x 488 (V)
    Active Picture Element 640 (H) x 480 (V)
    Chip Size 5.87 (H) x 4.71 (V) mm
    Cell Size 7.4 (H) x 7.4 (V) µm
    Scanning Area 4.80 (H) x 3.61 (V) mm
    Horizontal Drive Frequency 50.88MHz
    Horizontal Frequency 60.00KHz
    Vertical Frequency 119.99Hz
    Minimum Illumination 8 Lux @ F1.2
    Sync System Internal/External (HD/VD) Automatically
    Scanning System Progressive Scan/Partial Scan (H, V Center)
    S/N Ratio 50dB (Gain 0dB)
    Gamma 1
    Lens Mount C Mount
    Gain Manual/Fixed Gain
    Electronic Shutter 1/120 ~ 1/20,000 (8 Steps)
    Trigger Shutter Pulse Variable Integration Shutter Trigger (3~1/100,000 Second)
    Edge Preset Trigger (8 Steps)
    Video Output Digital: 10bit Camera Link®
    Power Supply 12V DC
    Power Consumption 300mA
    Performance Temperature 0°C ~ +40°C (-32° F ~ + 104°F)
    Operating Temperature  -10°C ~ 45°C (14°F ~ 113°F)
    Storage Temperature  -30°C ~ 60 °C (-22°F ~ 140°F)
    Weight 113g (3.98 oz.)
    Dimensions 44 (W) x 29 (H) x 60 (D) mm (1.76" x 1.16" x 2.4 ")
