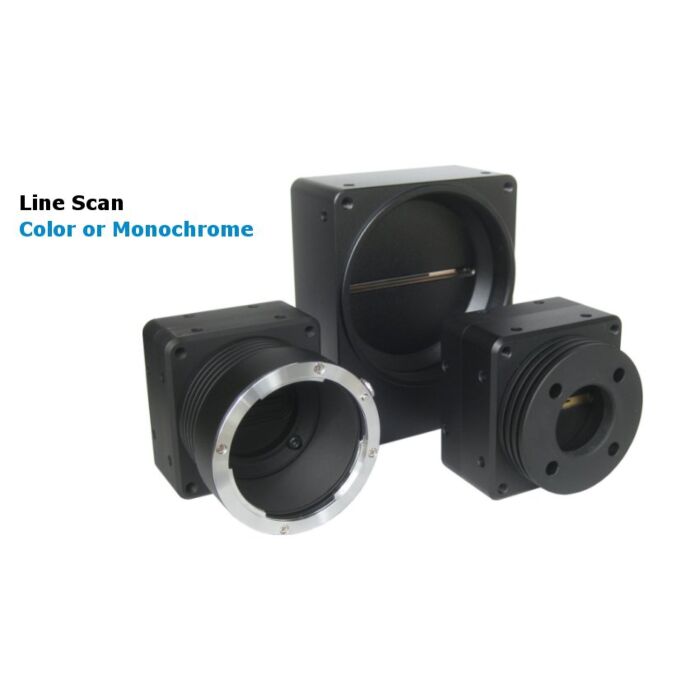

  • Sentech FS-C8KU7DCLU | 8MP Cameras | Color Cameras | Line Scan Camera  Image #1

Sentech FS-C8KU7DCLU 8MP Color Line Scan CL Camera

Quick Overview

The Sentech FS-C4KU7DCLU is an 8MP CMOS Line Scan camera with the image sensor 8k CMOS image sensor DR-2X8K-7- RGB(AWAIBA).
Overview

The FS-C8KU7DCLU is an 8MP Color Line Scan Camera available with an F, C Mount.



Features:



  • 8,192 Mega-Pixels
  • Camera Link Medium/Base configuration
  • Anti-blooming
  • High-speed exposure control
  • External trigger control
  • Flat Field Correction(FFC)
  •


    Applications:



  • Machine Vision
  • Factory Automation
  • Industrial Inspection
  • Specifications
    Model FS-C8KU7DCLU
    Sensor 8k CMOS image sensor DR-2X8K-7- RGB(AWAIBA)
    Active pixels 8,192 pixels x 2lines(Bayer)
    Pixel Size 57.344 mm
    data rate 85MHz x6tap(RGBx2) 80MHz x6tap(RGBx2) 50MHz x6tap(RGBx2) 85MHz x3tap(RGB) 80MHz x3tap(RGB) 50MHz x3tap(RGB)
    Maximum line rate 40.5kHz(85MHzx6tap(RGBx2)) 38.5kHz(80MHzx6tap(RGBx2)) 24kHz (50MHzx6tap(RGBx2)) 20.5kHz (85MHz x3tap(RGB)) 19kHz (80MHz x3tap(RGB)) 12kHz (50MHz x3tap(RGB))
    Video output Camera Link Full configuration (8bit ) Medium/Base configuration (8bit/10bit/12bit)
    Power Input Voltage +12 Vdc to +24 Vdc
    Consumption 7.5W(typ)
    Communication RS232C via Camera Link connector
    Functions Anti-blooming High speed exposure control External trigger control Flat Field Correction(FFC)
    Dimensions 80(W) x 100(H) x 38.1(D) mm (excluding the connector)
    Lens mount M72 mount(P=0.75mm)
    Weight about 472g
    Interface Connectors Camera Link connector (MDR) x2 Power connector (6pin connector)
    Operations Temperature 0 to 40 deg. C
    No Video available

    Sentech FS-C8KU7DCLU 8MP Color Line Scanning Camera Link Camera
