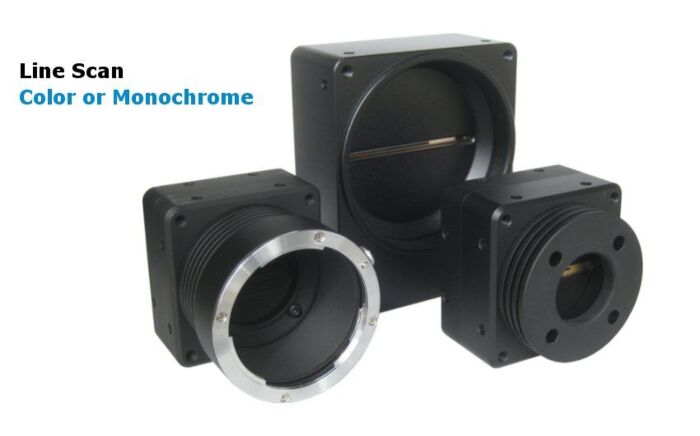

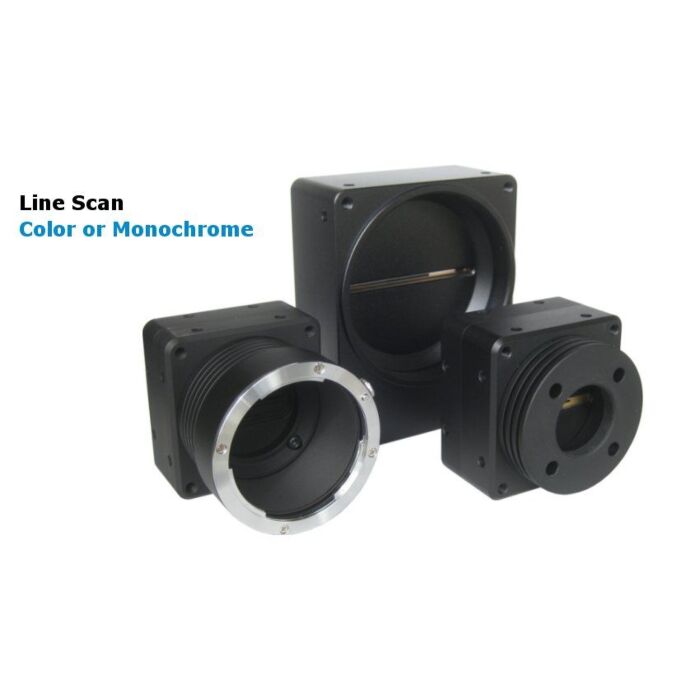

  • Sentech FS-B8KU7DCLU | 8MP Cameras |  Dual Line Scan Cameras Image #1

Sentech FS-B8KU7DCLU 8MP Monochrome Dual Line Scan CL Camera

Quick Overview

The FS-B8KU7DCLU is a 8 mega-pixel Dual Line Scan Camera Link Camera with an 8k CMOS image sensor DR-2X8K-7 (AWAIBA).


Additional Models:









FS-B8KU7DCLU-M72  B&W 8K Dual line Camera Link 7umx7um M72-Mount
Overview

Sentech's FS-B8KU7DCLU is part of the Monochrome Dual Line Scan Camera Link Series.



Features:



  • High-speed Camera Link Output
  • 8K Pixels
  • CMOS Sensor
  • M72 mount(P=0.75mm)
  •


    Applications:



  • Machine Vision
  • Factory Automation
  • Inspection
  • Industrial Imaging
  • Specifications
    Model  FS-B8KU7DCLU
    Sensor 8k CMOS image sensor DR-2X8K-7 (AWAIBA)
    Active Pixels 8,192 pixels x 2lines
    Pixel Size 7(H) x 7(V)um (7um pitch)
    Photo Array Length 57.344 mm
    Data Rate 85MHz x 8tap
    Maximum Line Rate 80kHz (85MHzx8tap)*
    Video Output Camera Link Full configuration (8bit) Camera Link Medium / Base Configuration (8, 10, 12bit)
    Power Input Voltage +12 Vdc to +24 Vdc
    Power Consumption 8.5 W(typ)
    Communication RS232C via Camera Link connector
    Function High-speed exposure control External trigger control Flat Field Correction(FFC) Binning 1Line delay FieldUpdate
    Dimensions 80(W) x 100(H) x 38.1(D) mm (excluding the connector)
    Lens Mount M72 mount(P=0.75mm)
    Weight Approx. 453g
    Interface Connectors Camera Link connector (MDR) x2 Power connector (6pin connector)
