  • Sentech | FS-B4KU7DCLU | 4MP Monochrome Dual Line Scan Camera Image #1

Sentech FS-B4KU7DCLU 4MP Monochrome Dual Line Scan CL Camera

Quick Overview

The FS-B4KU7DCLU is a 4 mega-pixel Dual Line Scan Camera Link Camera with a 4k CMOS image sensor DR-2X4K-7-inver (AWAIBA).


Additional Models:













FS-B4KU7DCLU-F  B&W 4K Dual line Camera Link 7umx7um F-Moun
FS-B4KU7DCLU-M42 B&W 4K Dual line Camera Link 7umx7um M42-Mount
Overview

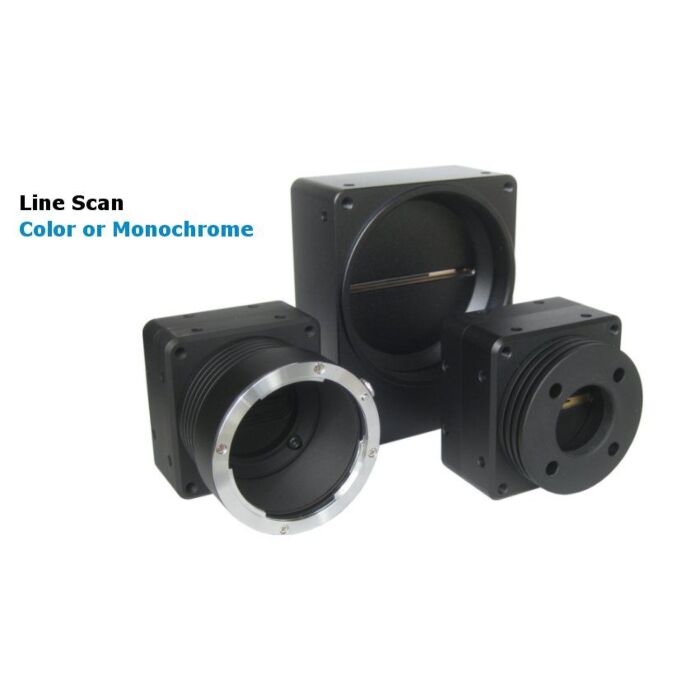

Sentech's FS-B4KU7DCLU is part of the Monochrome Dual Line Scan Camera Link Series.



Features:



  • High-speed Camera Link Output
  • 4K Pixels
  • CMOS Sensor
  • F, C, M42 mount
  •


    Applications:



  • Machine Vision
  • Factory Automation
  • Inspection
  • Industrial Imaging
  • Specifications
    Model  FS-B4KU7DCLU
    Sensor 4k CMOS image sensor DR-2X4K-7-inver (AWAIBA)
    Active Pixels 4,096 pixels x 2lines
    Pixel Size 7(H) x 7(V)um (7um pitch)
    Photo Array Length 28.672 mm
    Data Rate 85MHz x 8tap
    Maximum Line Rate 160kHz (85MHz x8tap)*
    Video Output Camera Link Full configuration (8bit) Camera Link Medium / Base Configuration (8, 10, 12bit)
    Power Input Voltage +12 Vdc to +24 Vdc
    Power Consumption 6.0 W(typ)
    Communication RS232C via Camera Link connector
    Function High-speed exposure control External trigger control Flat Field Correction(FFC) Binning 1Line delay FieldUpdate
    Dimensions 56(W) x 58(H) x 26.5(D) mm
    Lens Mount F , M42 mount
    Weight Approx. 198g
    Interface Connectors Camera Link connector (MDR) x2 Power connector (6pin connector)
