  • Sentech FS-B2KU7DCLU | 2MP Cameras | Dual Line Scan Camera Image #1

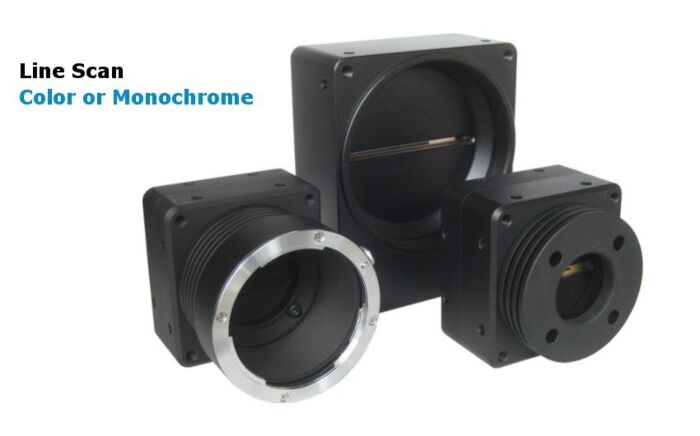

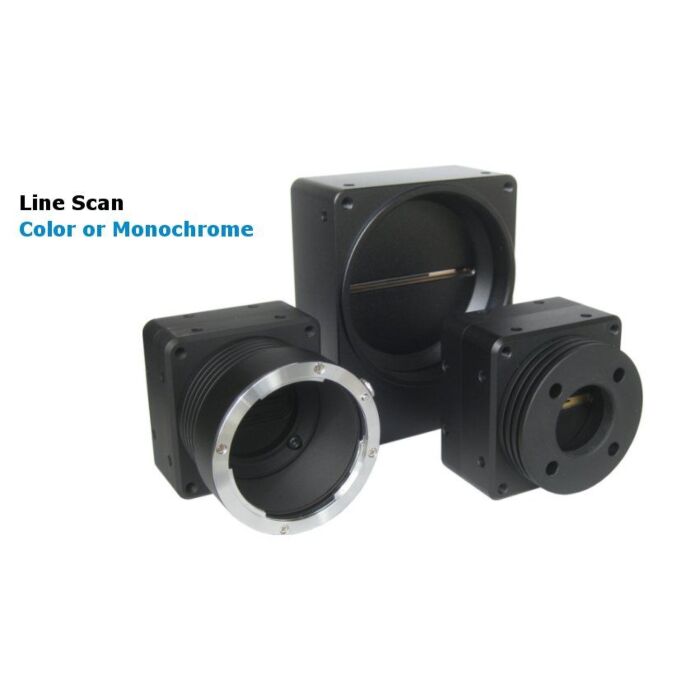

Sentech FS-B2KU7DCLU 2MP Monochrome Dual Line Scan CL Camera

Quick Overview

The FS-B2KU7DCLU is a 2 mega-pixel Dual Line Scan Camera Link Camera with a 2k CMOS image sensor DR-2X2K-7-inver (AWAIBA).


Additional Models:

















FS-B2KU7DCLU-F   B&W 2K Dual line Camera Link 7umx7um F-Mount
FS-B2KU7DCLU-C B&W 2K Dual line Camera Link 7umx7um C-Mount
FS-B2KU7DCLU-M42  B&W 2K Dual line Camera Link 7umx7um M42-Mount
Overview

Sentech's FS-B2KU7DCLU is part of the Monochrome Dual Line Scan Camera Link Series.



Features:



  • High-speed Camera Link Output
  • 2K Pixels
  • CMOS Sensor
  • F, C, M42 mount
  •


    Applications:



  • Machine Vision
  • Factory Automation
  • Inspection
  • Industrial Imaging
  • Specifications
    Model  FS-B2KU7DCLU
    Active Pixels 2,048 pixels x 2lines
    Pixel Size 7(H) x 7(V)um (7um pitch)
    Photo Array Length 14.336 mm
    Data Rate 85MHz x 4tap
    Maximum Line Rate 160kHz (85MHz x 4tap)*
    Video Output Camera Link Medium configuration(8, 10, 12bit)
    Power Input Voltage +12 Vdc to +24 Vdc
    Power Consumption 6.0 W(typ)
    Communication RS232C via Camera Link connector
    Function High-speed exposure control External trigger control Flat Field Correction(FFC) Binning 1Line delay FieldUpdate
    Dimensions 56(W) x 58(H) x 26.5(D) mm
    Lens Mount F, C, M42 mount
    Weight Approx. 198g
    Interface Connectors Camera Link connector (MDR) x2 Power connector (6pin connector)
    No Video available

    Sentech FS-B2KU7DCLU 2MP Monochrome Dual Line Scan Camera
