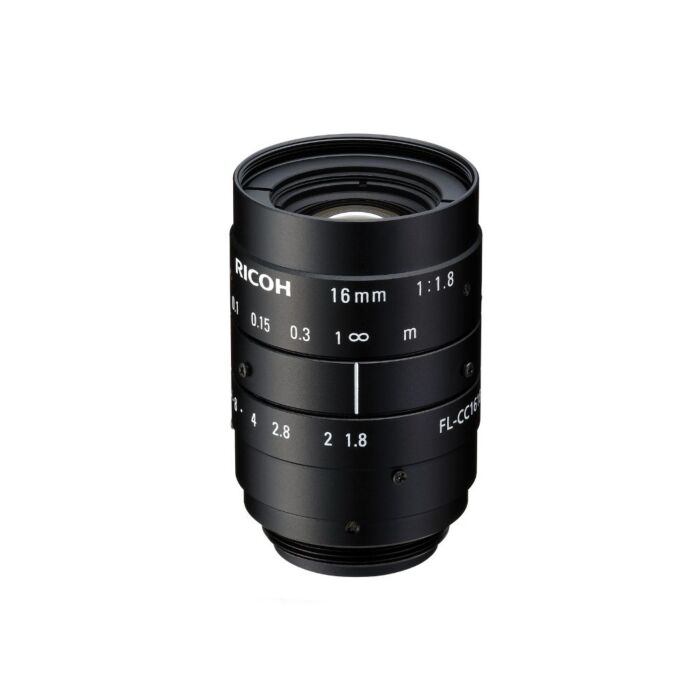

  • Ricoh FL-CC1618-5MX | 5MP Lens | 16mm FA Camera Lens Image #1

Ricoh FL-CC1618-5MX 5MP 16mm FA Camera Lens

Quick Overview

The 5MX Series uses JIIA (Japan Industrial Imaging Association) lens standards and satisfy S-Rank (Best Performance Class) criteria as high-performance lenses for 2/3 5 Megapixel camera. As entire field 5 Megapixel camera lenses, they capture high resolution, distortion images not just from the center to the periphery but over the entire measurement field.
Overview

The new lenses feature a φ33mm compact design. Despite their 5 Megapixel high resolution, their size allows a high degree of freedom incorporating them into a wide range of equipment positions.





Features:



  • S-Rank
  • 5MP at all range
  • Compact Design
  • Floating Focusing Mechanism

  • Applications:



    • checking for missing pixels in LCD monitors, OEL monitor
    • surface inspection/metal parts, hairline cracks
    • errors and in making detailed inspections/shape, color and surface of food and pharmaceuticals
    • visual sensors
    Specifications
    Resolution over 5 Mega-Pixel
    Format size 2/3" format
    Focal length 16mm
    Maximum aperture ratio 1:1.8
    Iris range 1.8~16
    Mount C
    Horizontal
    angle of view
    1/3" format 17.1°
    1/2" format 22.7°
    1/1.8" format 25.4°
    2/3" format 30.9°
    Minimum object distance 0.1m
    Back focal length 13.4mm
    Filter size 30.5 P=0.5mm
    Dimensions φ33×47mm
    Weight 80g
    Remarks Focus & Iris lock screw
