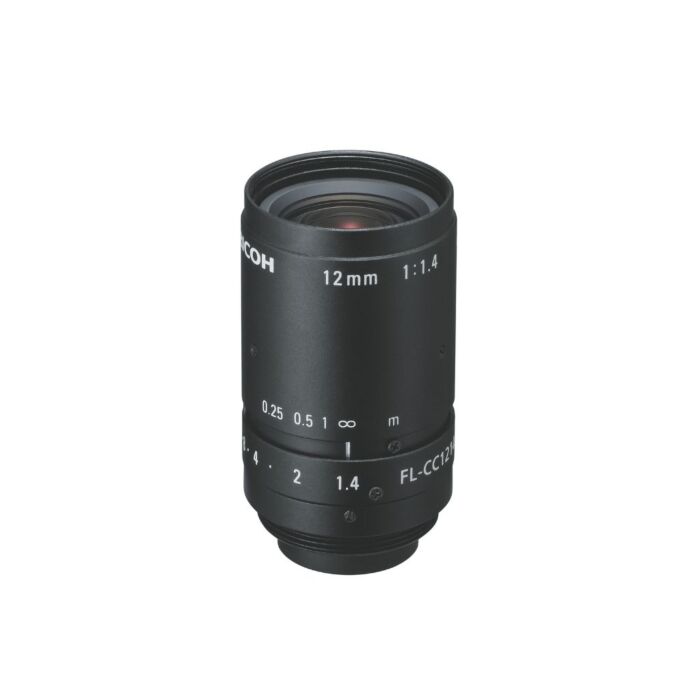

  • Ricoh FL-CC1218-5MX | 5MP Cameras | 12mm FA Camera Lens Image #1

Ricoh FL-CC1218-5MX 5MP 12mm FA Camera Lens

Quick Overview

5MX Series uses JIIA (Japan Industrial Imaging Association) lens standards and satisfy S-Rank (Best Performance Class) criteria as high-performance lenses for 2/3 5 Megapixel camera. As entire field 5 Megapixel camera lenses, they capture high resolution, distortion images not just from the center to the periphery but over the entire measurement field.
Overview

The lenses provide a high-resolution image right up to the periphery and have low distortion, making them ideal for visually inspecting high density printed circuit boards, confirming hairline cracks and other surface defects on sheet metals, checking for missing pixels on LCD monitors, inspecting multiple aspects simultaneously such as the shape, color and surface of food and pharmaceuticals for errors and in making detailed inspections of a wide range of objects.





Features:



  • S-Rank
  • 5MP at all range
  • Compact Design
  • Floating Focusing Mechanism
  •




    Applications:



    • checking for missing pixels in LCD monitors, OEL monitor
    • surface inspection/metal parts, hairline cracks
    • errors and in making detailed inspections/shape, color and surface of food and pharmaceuticals
    • visual sensors
    Specifications
    Resolution over 5 Mega-Pixel
    Format size 2/3" format
    Focal length 12mm
    Maximum aperture ratio 1:1.8
    Iris range 1.8~16
    Mount C
    Horizontal
    angle of view
    1/3" format 22.7°
    1/2" format 30.0°
    1/1.8" format 33.6°
    2/3" format 40.5°
    Minimum object distance 0.1m
    Back focal length 13.2mm
    Filter size 30.5 P=0.5mm
    Dimensions φ33×47mm
    Weight 85g
    Remarks Focus & Iris lock screw
