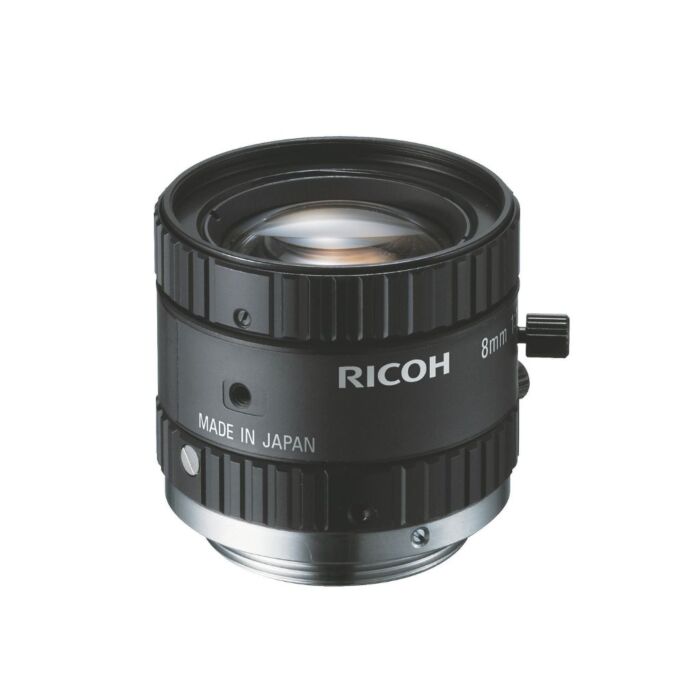

RICOH FL-CC0814A-2M (FLCC0814A2M) 2/3" (2MP) 8mm Manual Iris Lens

The Ricoh Lenses FL-CC0814A-2M is a F1.4 f8mm 2/3" with C mount thread and manual aperture. A min. working distance of 100mm.
SKU
FL-CC0814A-2M-Ricoh

The FL-CC0814A-2M has minimal degradation of resolution and contrast throughout the periphery, enable high resolution and high contrast images across the entire frame.


Features:


  • High-performance lenses for close-up imaging with 2 mega-pixel CCD and CMOS sensors
  • Sharp high resolution, high contrast images, that limit resolution loss from the center to periphery
  • With compact size, light weight, and durability, these are excellent lenses for FA and machine vision use
  • They greatly reduce distortion that causes problems in image measurement and recognition
  • Built to handle environments with vibration, etc. Easy to use, reliable focus and iris locking mechanisms as standard features

  • Applications:


  • high-precision manufacturing inspection
  • chip mounters
  • wafers
  • electronic substrates
  • Format size  2/3" format
    Focal length 8 mm
    Maximum aperture ratio 1:1.4
    Iris range 1.4-16
    Mount C
    Horizontal
    angle of view
    1/3" format 32.6°
    1/2" format 42.7°
    1/1.8" format 47.4°
    2/3" format 56.3°
    Minimum object distance 0.1 m
    Back focal length 11.1 mm
    Filter size 40.5 P=0.5 mm
    Dimensions φ42×36.7 mm
    Weight 76 g
    Remarks Focus & Iris lock screws
