  • FL-BC2518-9M | Ricoh Lenses | 1" Manual Iris Lens Image #1

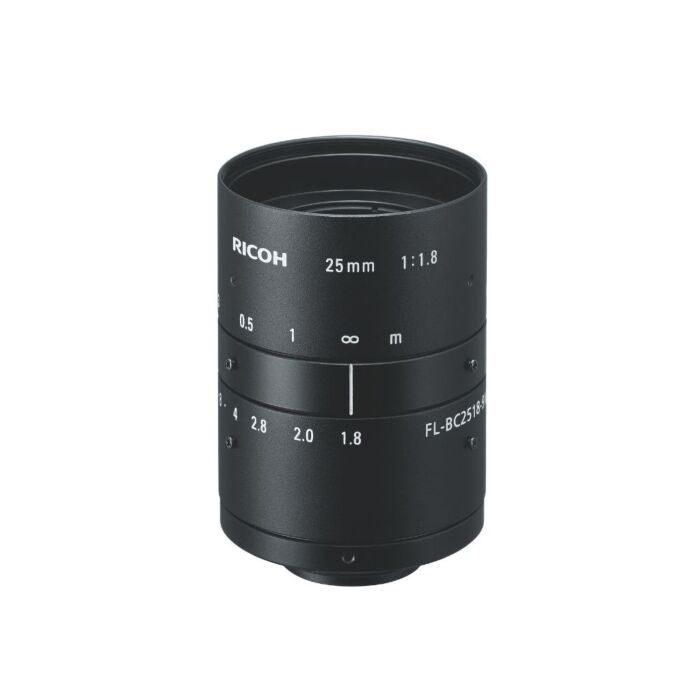

RICOH FL-BC2518-9M 1" (9MP) 25 mm Manual Iris Lens

Quick Overview

RICOH FL-BC2518-9M 1" 25MM F1.8 Manual Iris, 9 MP, C-Mount Lens
$490.00

Availability: In stock

Overview

The RICOH FL-BC2518-9M is a Manual Iris Lens compatible with 1" format cameras up to 9 megapixels.



Features:



  • Fixed focal length lens
  • high-resolution
  • compact Design
  • 9 Megapixel lens
  • with locking screws
  • for C- and CS-Mount cameras
  • High resolving power of 135 lp/mm from center to corners of the image
  •


    Applications:



  • Visual inspection of printed circuit boards and sheet materials (metal, paper, film)
  • Verifying type of printed matter
  • Inspecting the shape, color, and surface of food and pharmaceuticals for errors
  • Confirming hairline cracks and other surface defects in diameter sheet metals
  • Checking for missing pixels on LCD monitors
  • Visual and foreign substance inspections on everything from precision machined items to containers
  • In capturing precision machining products such as electronic substrates and wafers

  • Specifications
    Format Size 1"
    Focal Length 25 mm
    Maximum aperture ratio 1:1.8
    Iris Range  1.8~16
    Mount C
    Horizontal Angle of View 1/3" Format 11.0°
    Horizontal Angle of View 1/2" Format 14.6°
    Horizontal Angle of View 1 1/8" Format 16.4°
    Horizontal Angle of View 2/3" Format 20.0°

    Horizontal Angle of View 1"Format

    28.8°
    Min. Object Distance 28.8°
    Back Focal Length 14.1mm
    Filter Size 40.5 P=0.5mm
    Dimensions φ42mmx57.5mm
    Weight 149g
    Comments Focus & Iris lock screws
    https://www.youtube.com/watch?v=7H39zREN0PQ

    RICOH FL-BC2518-9M
