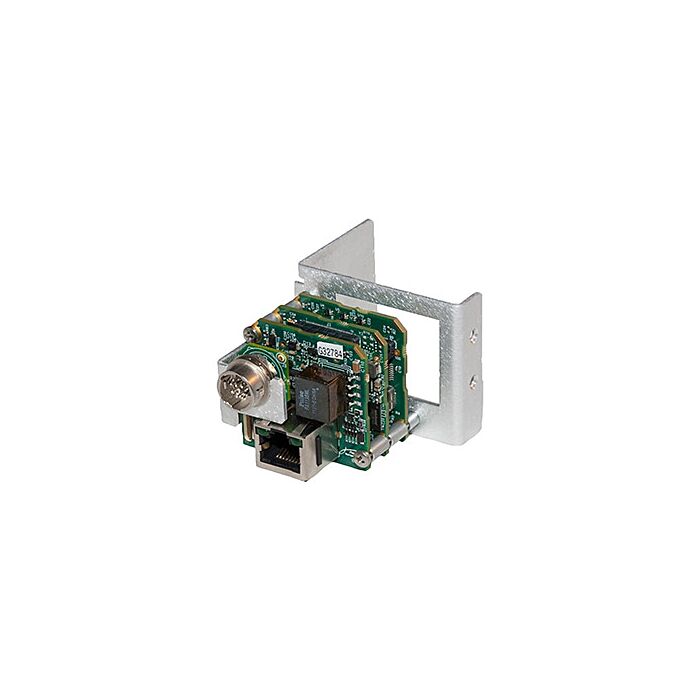

  • Pleora’s iPORT™ SB-GigE-EV7520A | Sony External Frame Grabber | Image #1

Pleora’s iPORT™ SB-GigE-EV7520A

Quick Overview

Pleora’s iPORT™ SB-GigE-EV7520A External Frame Grabber improves the usability of a Sony block FCB-EV7520A camera by allowing systems manufacturers and integrators to treat it as a native GigE Vision® camera.
Overview

The SB-GigE-EV7520A presents a user-friendly interface to the Sony® VISCA™ protocol set, both graphically and in the eBUS SDK (software development kit). This allows system designers to rapidly prototype interactions between the SB-GigE-EV7520A, the FCB-EV7520A, and their software as well as quickly deploy production-ready software. The SB-GigE-EV7520A transmits full-resolution video with low, predictable latency over a GigE link. The connection at the PC is a standard GigE plug, eliminating the need for a desktop PC with an available peripheral card slot for a traditional frame grabber. As a result, system designers can reduce system size, cost, and power consumption by using computing platforms with smaller form factors, such as laptops, embedded PCs, and single board computers. GigE supports cabling distances of up to 100 meters using standard CAT5e/6 cabling. Deploying an off-the-shelf Ethernet switch, extended distances and more flexible network configurations are supported.



Features:



  • Transforms Sony block FCB-EV7520A camera into GigE Vision camera – transmit full-resolution images at the maximum rate supported by the block camera with low, predictable latency
  • Power, control, and video over the same cable
  • Plugs into a wide range of computing platforms without needing a PCI frame grabber
  • Converts video to 8-bit monochrome formats to conserve bandwidth (except in 1080p modes at 50 fps or higher)
  • Simplifies Sony VISCA interface
  • GigE Vision and GenICam compliant, enabling interoperability in multi-vendor environments
  •


    Applications:



  • System designers can reduce system size, cost, and power consumption by using computing platforms with smaller form factors, such as laptops, embedded PCs, and single board computers
  • Ship-to-Shore Crane
  • Telepresence Robots
  • Specifications
    iPORT External Frame Grabbers • Highly reliable, 1 Gb/s data transfer rate with low, end-to-end latency • OEM, in-camera board set
    eBUS SDK • eBUS Universal Pro driver • Sample applications, including NetCommand™ sample application, a demonstration of multi-device network connectivity • Driver installation tool • Documentation
    GigE Vision and GenICam™ • Fully-compliant firmware load • Guarantees delivery of all packets • Comprehensive data transfer diagnostics
    Video acquisition • Digital video interface
    Input Resolutions • Full resolution images • 1080p, 25/29.97/30Hz • 1080i, 50/59.94/60Hz • 720p, 25/29.97/30/50/59.94/60HZ • 1080p, 50/59.94/60Hz
    Pixel formats
    • Mono8 (8 bits per pixel)
    • BayerGR8 (8 bits per pixel)
    • YUV 4:2:2 (16 bits per pixel)
    • YUV 4:1:1 (12 bits per pixel)



    Gigabit Ethernet based
    • Connection to low-cost, easy-to-use equipment
    • Compatible with 10/100/1000 Mb/s IP/ Ethernet Networks
    • Supports IEEE 802.3 (Ethernet), IP, IGMP v.2,
    • UDP, ICMP (ping), and IEEE 1588 Precision Time
    • Long reach: 100 m point-to-point, further with Ethernet Switches
    Multicast capability Enables advanced distributed processing and control architectures
    Mechanical Bracket • Easy assembly with Sony block cameras
    12-pin circular connector

    • GPIO
    • RS-232 serial communication interface
    • External power (optional)

    RJ-45 jack
    • Network/computer interface
    • Power over Ethernet (PoE)
    30-pin connector

    • Sony block camera interface
    • VISCA serial command interface
    • Power for block camera

    Size (Without bracket)   • 37 mm X 37 mm X 34.3 mm
    Operating Temperature Commercial1
    Storage temperature   • -40°C to 85°C
    External power supply • 4.8 V to 16 V
    Power consumption • Up to approximately 7.0 W
    MTBF @ 40o C • 1,189,775 hours
    ECCN • EAR99
