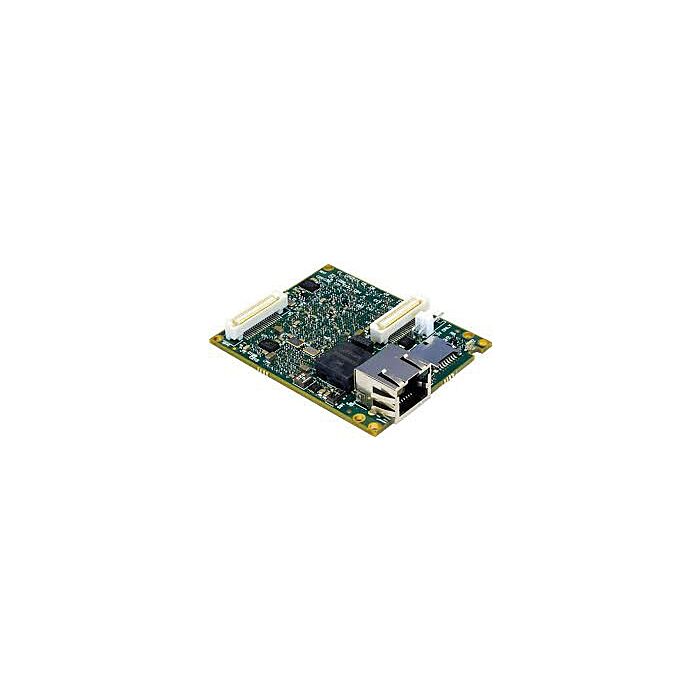

Pleora iPORT NTx-NBT25 Embedded Video Interface

Quick Overview

Pleora’s iPORT™ NTx-NBT25 Embedded Video Interface hardware helps manufacturers shorten time-to-market, reduce risk, and lower costs by providing a straightforward way to integrate GigE Vision® 2.0 video connectivity over NBASE-T into imaging devices and systems.
Overview

The NTx-NBT25 Embedded Video Interface supports 2.5 Gbps transmission of uncompressed images over a standard Cat 5E Ethernet cable for distances up to 100 meters.



Features:



  • Supports 2.5 Gbps transmission of uncompressed images over standard Cat 5e Ethernet cabling for distances up to 100 meters
  • Small footprint embedded hardware easily integrated into existing and new imaging device designs
  • GigE Vision 2.0 compliance ensures interoperability in multi-vendor digital video systems
  • GenICam compliant interface provides easy access to programming features and simplifies integration of imaging devices into existing or new systems
  • Supports IEEE 1588 Precision Time Protocol (PTP) to synchronize image capture and imaging system elements
  • Integrated programmable logic controller (PLC) lets users control external machines and reacts to inputs – make functional changes, adjust timing, or add features without requiring new hardware
  • Image management tags an image or group of images with metadata: provides context necessary to retrieve image data from the onboard frame buffer in event of power or network failure at the receiver
  • 512 MB Image buffer
  • Image store capability up to 4096 images deep
  • Supports line scan and area scan modes
  • Field upgradable firmware
  • Specifications
    Number of channels 1
    Scan Modes Area Scan (Progressive) and Line Scan
    Pixel Depth (bits) 8, 10, 12, 14, 16, and 24 bits
    Taps per Data Channel Up to 2 for 24-bit pixel depth parallel video input
    Image Width (pixels) • Min: 4** • Default: 640 • Max: 16 376 • Increment: 4**
    Image Height (pixels) • Min: 1 • Default: 480 • Max: 16 383 • Increment: 1
    Windowing/Region of Interest Yes
    Tap Geometry 1X_1Y, 1X2_1Y, 1X, 1X2
    Video Inputs 3.3 V LVTTL / 2.5 V LVCMOS
    GPIO Inputs 4 x 3.3 V LVTTL / 2.5 V LVCMOS
    GPIO Outputs 3 x 3.3 V LVTTL
    Serial (Bulk)** 3 x 3.3 V LVTTL
    Camera Control Outputs 4 x 3.3 V LVTTL
    User Circuitry Interface (Including Internal Power Interface) Two 40-pin Hirose Connectors FX6-40S-0.8SV2(93)
    External Power Interface 2-pin 0.10” header
    No Video available

    NTx-NBT25
