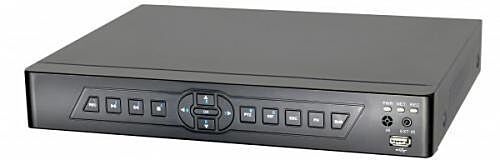

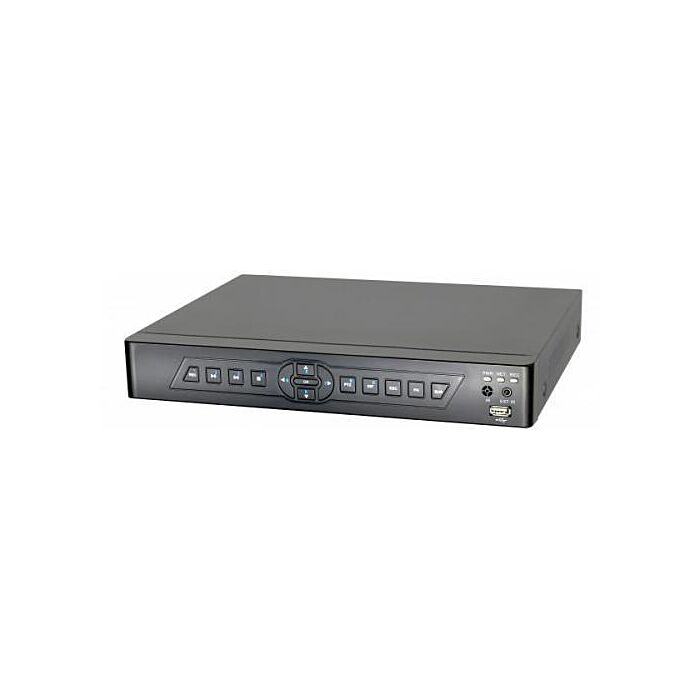

LTS Security Platinum X LTD4108T-FT Advanced Level 8 Channel HD-TVI DVR
LTS Security Platinum X Advanced Level 8 Channel HD-TVI DVR
SKU
Platinum X LTD4108T-FT Advanced Level 8 Channel HD-TVI DVR
HD-TVI H.264 DVR, Dual-Stream Video Compression, Supports HD-TVI, IP, Analog Cameras, Full Channel 1080P@15fps, 720P@30fps Recording, HDMI and VGA Output up to 1920x1080P Resolution, Transmission Distance Over 1000ft Coax Cable.
Features:
| Video / Audio Input | ||
| Video Compression | H.264 | |
| HD-TVI Video Input | 8 ch | |
| Video Input Interface | BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adapive | |
| IP Input | 2ch(1080p@30fps) | |
| Audio Compression | G.711A | |
| Auido Input | 1-ch, RCA(2.0 Vp-p, 1 kΩ) | |
| Two-way Audio Input | 1-ch, RCA (2.0 Vp-p, 1 kΩ) | |
| Video / Audio Output | ||
| HDMI / VGA Output | 1920 x 1080,1280 x 1024, 1280 x 720, 1024 x 768/60 Hz | |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 | |
| Encoding Resolution |
|
|
| Frame Rate |
|
|
| Video Bit Rate | 1280 Kbps-7168 Mbps | |
| Audio Output | 1-ch, RCA (Linear, 1 kΩ) | |
| Audio Bit Rate | 64 Kbp | |
| Dual-Stream | Support | |
| Stream Type | Video, Video & Audio | |
| Synchronous Playback | 8-ch | |
| Playback Resolution | 1080P / 720P / WD1 / 4CIF / CIF / QCIF | |
| Network | ||
| Remote Connections |
10 |
|
| Network Protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS | |
| Hard Disk | ||
| SATA | 1 SATA interfaces | |
| Capacity | Up to 4TB capacity for each disk | |
| External Interface | ||
| Network Interface | 10M / 100M /1000M | |
| Serial Interface | 1; standard RS-485 serial interface, half-duplex | |
| USB port | 2 × USB2.0 | |
| Alarm in/out | No | |
| General | ||
| Power Supply | DC 12V | |
| Consumption | ≤ 10 W | |
| Working Temperature | -0 °C ~ +55 °C(32°F - 131°F) | |
| Working Humidity | 10% ~ 90% | |
| Dimension | 12.6 × 9.6 × 2.0" 320 ×245 × 50mm | |
| Weight (without hard disk) | ≤ 3.3 lb (1.5Kg) | |
