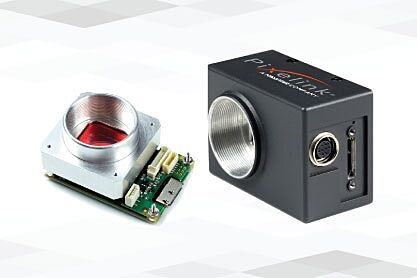

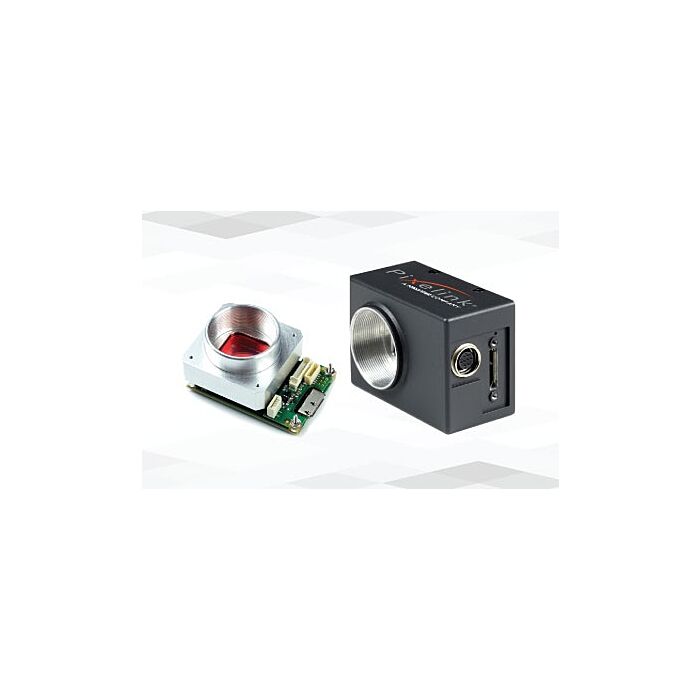

PL-D757 (PLD757):PixeLINK 7.1MP HDR Camera Series
The PL-D757 cameras are based on the 3rd generation Sony IMX421 Pregius CMOS global shutter sensor with a 1.1” sensor size. USB 3.0 interface links together the benefits of high frame rate CMOS technology with the high-speed data throughput of USB 3.0 technology.
Models:
PL-D757CU7.1 MP Sony IMX420 Enclosed Color USB 3.0 CMOS Camera
PL-D757CU-T7.1 MP Sony IMX420 Enclosed Color USB 3.0 CMOS Camera w/Trigger
PL-D757CU-BL7.1 MP Sony IMX420 Board Level Color USB 3.0 CMOS Camera
PL-D757MU7.1 MP Sony IMX420 Enclosed Monochrome USB 3.0 CMOS Camera
PL-D757MU-T7.1 MP Sony IMX420 Enclosed Monochrome USB 3.0 CMOS Camera w/Trigger
PL-D757MU-BL7.1 MP Sony IMX420 Board Level Monochrome USB 3.0 CMOS Camera
The IMX420 sensor also has improved detection quality in applications with moving objects. As with all the Pixelink cameras, the PL-D757 is compatible with Pixelink Capture, our free real-time interactive multi-camera software application.
Features:
- 7.1 MP
- Sony IMX420
- 1.1" Sensor Size
Applications:
- Parts Inspection
- Strength Testing
- Metrology
- Biometrics
- Medical Imaging
- PCB & Flat Panel Display Inspection
| Sensor | Sony IMX420 |
| Type | CMOS Global Shutter |
| Resolution | 7.1MP (3208 x 2200) |
| Pixel Pitch | 4.5 µm x 4.5 µm |
| Active Area | 17.6 mm diagonal |
| FPN | < 0.03% of signal |
| PRNU | < 0.4% of signal |
| Dynamic Range | 72 dB |
| Bit Depth | 8 or 12-bit |
| Control Data Formats | Bayer 8, Bayer 12 Packed, Bayer 16 & YUV422 |
| Mono Data Formats | Mono 8, Mono 12 Packed & Mono 16 |
| Resolution | Free Running |
| Interface | USB 3.0 | Micro-B | 5Gbps |
| Board Level Trigger Connector | 8-pin Molex 1.25mm pitch |
| Enclosed Trigger Connector | Hirose round 8-pin |
| Dimensions | 55 x 38.5 x 30.29 |
| Weight | 35.8 (Board level without optics) |
| Mounting | C-Mount |
