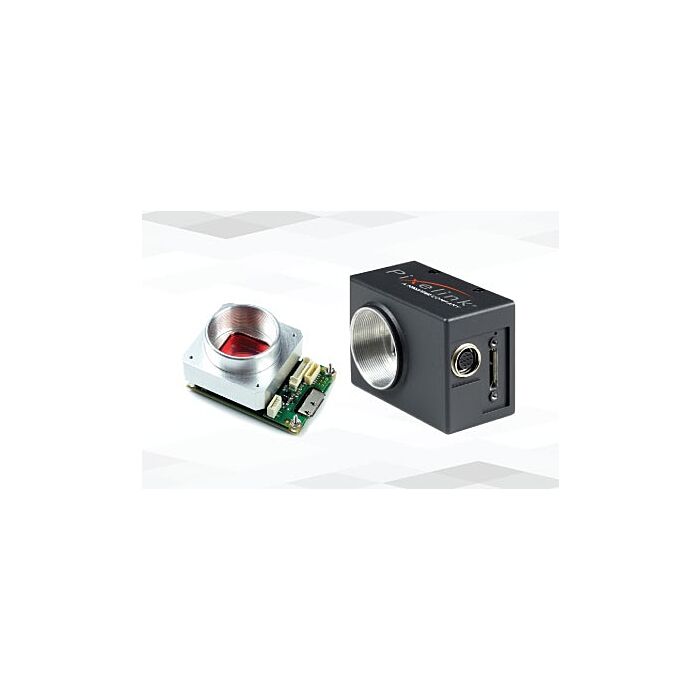

  • PL-D753 | PixeLINK | 2.8MP HDR Camera Image #1

PL-D753: PixeLINK 2.8MP HDR Camera Series

Quick Overview

The PL-D753 utilizes the 3rd generation Pregius CMOS Sony sensor, which delivers improvements in image quality and speed. This camera provides low noise images and is the perfect fit for a wide range of industrial applications.


Models:


PL-D753CU       2.8 MP Sony IMX421 Enclosed Color USB 3.0 CMOS Camera
PL-D753CU-T    2.8 MP Sony IMX421 Enclosed Color USB 3.0 CMOS Camera w/Trigger
PL-D753CU-BL  2.8 MP Sony IMX421 Board Level Color USB 3.0 CMOS Camera
PL-D753MU       2.8 MP Sony IMX421 Enclosed Monochrome USB 3.0 CMOS Camera
PL-D753MU-T    2.8 MP Sony IMX421 Enclosed Monochrome USB 3.0 CMOS Camera w/Trigger
PL-D753MU-BL  2.8 MP Sony IMX421 Board Level Monochrome USB 3.0 CMOS Camera

Overview

The IMX421 sensor also has improved detection quality in applications with moving objects. As with all the Pixelink cameras, the PL-D753 is compatible with Pixelink Capture, our free real-time interactive multi-camera software application.



Features:



  • 2.8 MP
  • Sony IMX421
  • 2/3" Sensor Size
  •



    Applications:



    • Parts Inspection
    • Strength Testing
    • Metrology
    • Biometrics
    • Medical Imaging
    • PCB & Flat Panel Display Inspection
Specifications
Sensor Sony IMX421
Type CMOS Global Shutter
Resolution 2.8MP (1936 x 1464)
Pixel Pitch 4.5 µm x 4.5 µm
Active Area 11 mm diagonal
FPN < 0.03% of signal
PRNU < 0.4% of signal
Dynamic Range 72 dB
Bit Depth 8 or 12-bit
Control Data Formats Bayer 8, Bayer 12 Packed, Bayer 16 & YUV422
Mono Data Formats Mono 8, Mono 12 Packed & Mono 16
Resolution Free Running
Interface USB 3.0 | Micro-B | 5Gbps
Board Level Trigger Connector 8-pin Molex 1.25mm pitch
Enclosed Trigger Connector Hirose round 8-pin
Dimensions 55 x 38.5 x 30.29
Weight 35.8 (Board level without optics)
Mounting C-Mount
