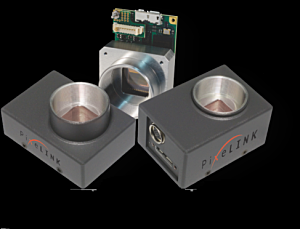

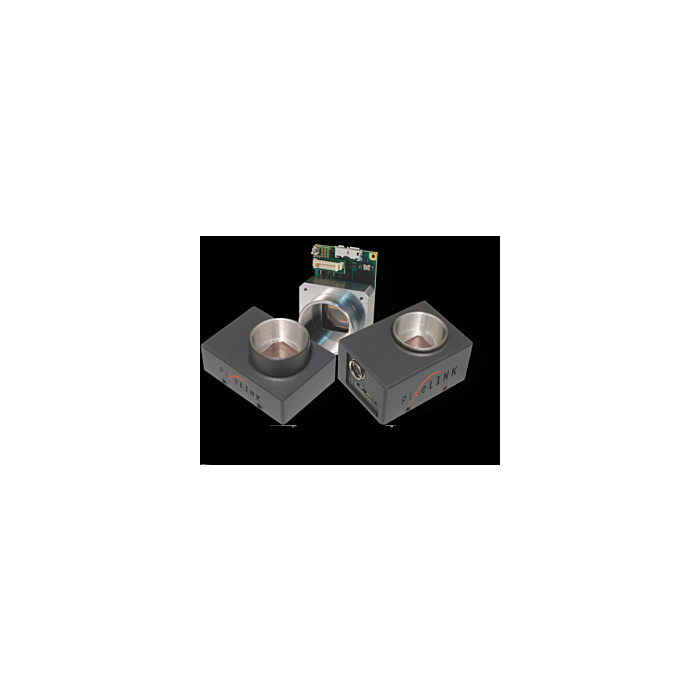

PixeLINK PL-D7512 (PLD7512) Series 12MP 4096x3000 Resolution Machine Vision Camera/Kits (Sony IMX253)

The PL-D7512 cameras are based on a Sony IMX253 CMOS global shutter sensor with a 1.1” optical format. The extensive built-in image processing possibilities.



Color Space                  µScope Version                      Housing

C – Color                        KIT Essentials Version             BL – Board Level

M – Mono                       SE Standard Version                T – Trigger

NIR – Near Infrared        PRO - Professional Version     CYL - Cylindrical case

F - Firewire                     G - GigE                                   U - USB 2.0

See Specs Below For All Configurations-

SKU
PixeLINK PL-D7512 Series

The PL-D7512 camera provides low noise images for outstanding value in a broad range of industrial applications. The camera features a 12.29 megapixel (4096 x 3000) resolution imager.



Features:



  • Extended shutter mode
  • Auto & manual exposure
  • Programmable LUT
  • Auto & Manual White Balance
  • Color Temperature
  • Gain
  • Gamma
  • Saturation
  • Histogram
  • Binning and Decimation
  • Image Flip & Rotate
  • Callbacks (Image Filters)
  •


    Applications:



  • Parts Inspection
  • PCB & Semiconductor Inspection
  • Pathology
  • Histology
  • Live Cell Imaging
  • Petrology
  • Academic and pharmaceutical research
  • Clinical medicine
  • Microbiology
  • Genetics
  • Metallurgy
  • Embryology
  • Sensor Sony IMX253
    Color Space Color/Mono
    Type CMOS Global Shutter
    Resolution 12.29 MP (4096 x 3000)
    Pixel Pitch 3.45 µm x 3.45 µm
    Active Area 17.6 mm diagonal
    FNU 0.03%
    PRNU 0.4%
    Dynamic Range 69.5 dB
    Color Data Formats YUV422, Bayer 8, Bayer 12 packed, Bayer 16
    Mono Data Formats Mono 8, mono 12 packed and Mono 16
    Dimensions 32 x 48 x 11 (without lens mount)
    Weight 35.8 (without optics)



    Configurations:

                  Color                                  Mono

                  PL-D7512CU                      PL-D7512MU
                  PL-D7512CU-BL                PL-D7512MU-BL
                  PL-D7512CU-T                  PL-D7512MU-T
