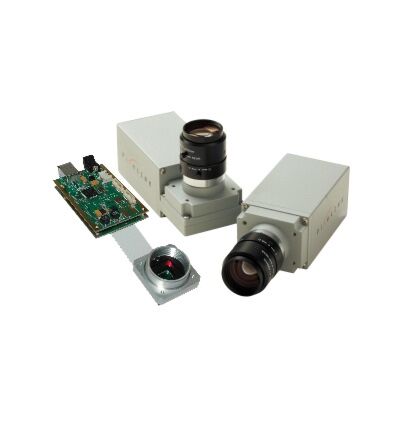

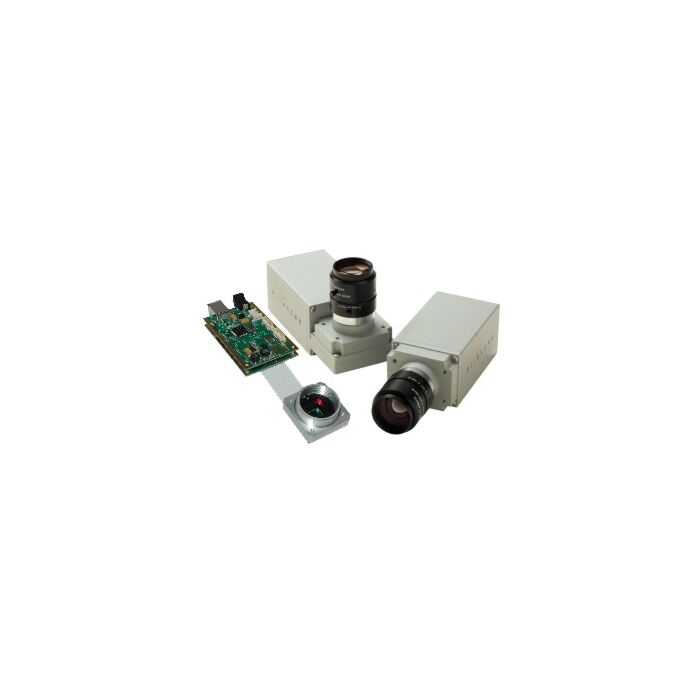

PixeLINK PL-B954H (PLB954H) 1.45MP CCD Camera
The PL-B954H is a high performance 1.45 MP color CCD camera at 15 fps is designed for several industrial imaging applications.
SKU
PixeLINK PL-B954H 1.45MP CCD Camera
The PL-B954H is based on the Sony ICX267 progressive scan sensor with a 1/2” optical format. The camera includes an External triggering and 2 general-purpose outputs providing users the flexibility to synchronize the camera with their processes and illumination.
Features:
Applications:
| Sensor | Sony ICX267 |
| Type | Inter-Line Transfer (ILT) |
| Resolution | 1392(H) x 1040(V) Color & Mono |
| Pixel Pitch | 4.65 µm x 4.65 µm |
| Active Area | 7.60 mm x 6.20 mm - 7.96mm diagonal |
| Max Datarate | 36 MHz |
| Processor | 2.0 GHz or better |
| Memory | 512 MB min. 1 GB recommended |
| Operating System | Windows 2000, XP and Vista (32bit) |
| Hard Drive Space | 75 MB |
| Voltage Req. | FireWire/GigE 8-32 V DC - USB 5 V DC |
| Power Req. PL-B954H | FireWire 4.8 W, USB 4.5 W, GigE 5.8 W |
| PixeLINK Capture OEM | Free Download |
| Responsivity | Mono 10.5 - 42.6 DN/(nJ/cm ) 2 Color 10.1 - 41.3 DN/(nJ/cm ) |
| FPN | <0.3 % |
| PRNU | <2.5 % |
| Read Noise | Mono 4.37 DN - Color 4.08 DN |
| Dynamic Range | Mono 59.4 dB - Color 60.0 dB |
| Bit Depth | 8 & 12-bit |
| Color Data Formats | Bayer 8, Bayer 16 and YUV422 |
| Mono Data Formats | Raw, Mono 8 and Mono 16 |
| Exposure Range | 63 µs to 10 seconds free running 63 µs to 10 seconds triggered |
| Gain | 0 dB to 24.57 dB in 29 increments |
