PixeLINK M5M Series 5.3MP 2592x2048 Resolution Microscopy Camera Kit (On Semi Vita 5000)
The PixeLINK M5M cameras are based on a CMOS global shutter sensor with a 1” optical format.
M5M Series Configuration Codes
Color Space µScope Version Housing
C – Color KIT Essentials Version BL – Board Level
M – Mono SE Standard Version T – Trigger
NIR – Near Infrared PRO - Professional Version CYL - Cylindrical case
See Specs Beloew For Series Configurations

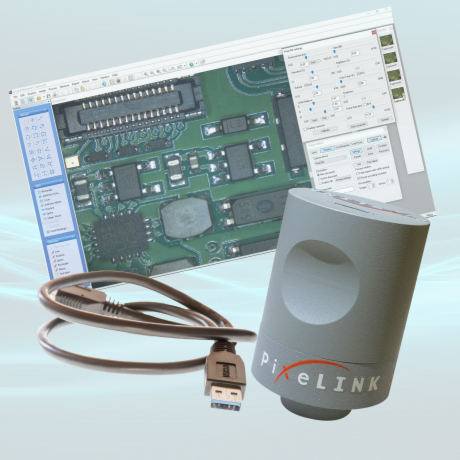

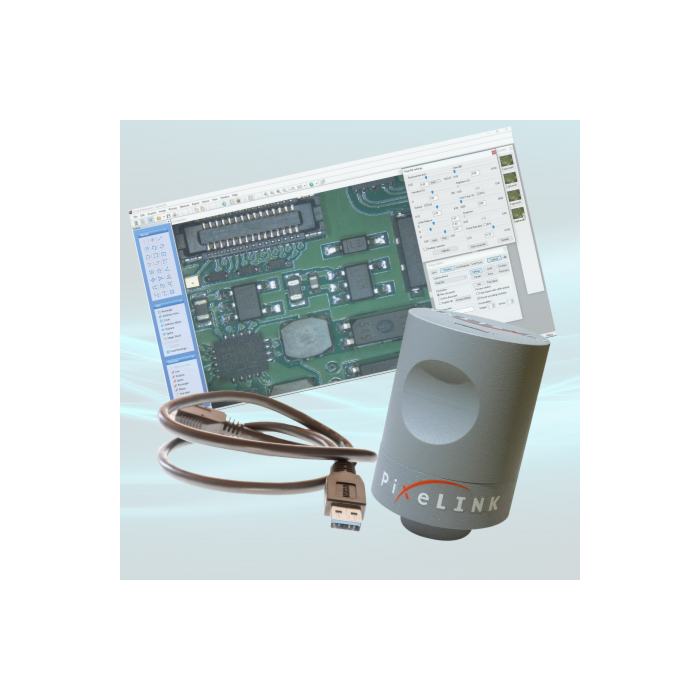

The M5M product is available as a kit and includes the M5 microscopy camera, µScope software and a USB 3.0 locking cable.
Features:
Applications:
| Sensor | On Semiconductor Vita 5000 |
| Type | CMOS Global Shutter |
| Resolution | 5.3 MP (2592 x 2048) |
| Pixel Pitch | 4.8 µm x 4.8 µm |
| Active Area | 15.86 mm diagonal |
| Peak QE | 53% |
| FPN | <1 % of signal |
| PRNU | <2% of signal |
| Dynamic Range | 53 dB (90 dB with Extended Shutter Mode) |
| Bit Depth | 8 or 10-bit |
| Color Data Formats | Bayer 8, Bayer 16 and YUV4226 |
| Dimensions | 88 x Ø54.01 (without lens mount) |
| Weight (g) | 218.5 (without optics)) |
| Mounting | C-Mount |
Configurations:
|
|
Mono |
|
|
M5M-KIT-CYL
|
